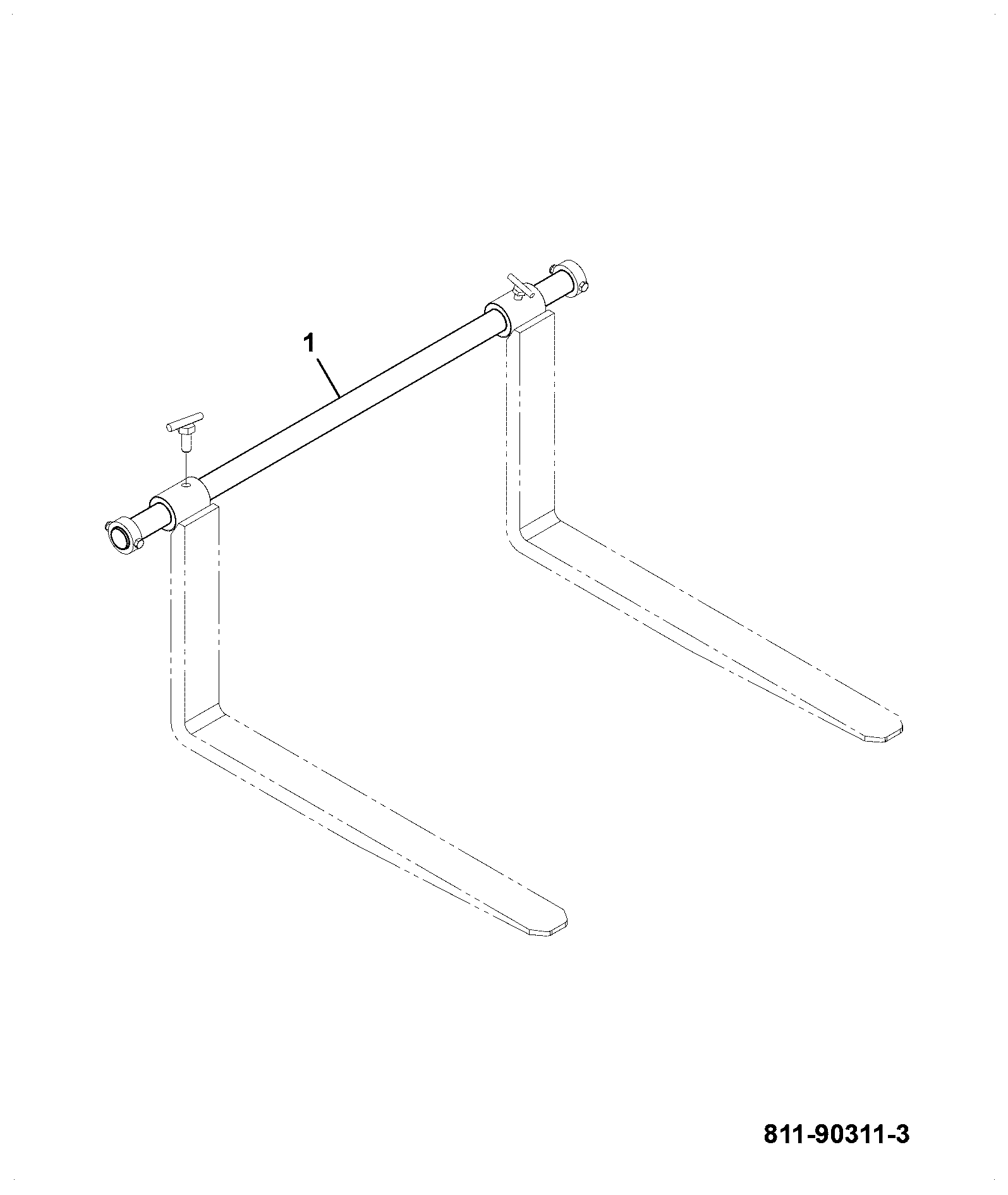

A370-75-1 FORKS RETENTION, ASSEMBLY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	LINK RETAINING 545/41501	1	AVAILABLE TO ORDER	$112.50	Quantity
2	LYNCH PIN 826/00512	1	4 IN STOCK	$3.76	Quantity
3	PIN RETENTION 911/23600	1	AVAILABLE TO ORDER	$223.54	Quantity

Showing 1 to 3 of 3 parts
