A370-20-1 FORKS FLOATING FORKS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	FLOATING FORK FRAME G/A w/ forks 980/89727	1	AVAILABLE TO ORDER	$8,225.94	Quantity
2	FORK FLOATING 331/46381	1	AVAILABLE TO ORDER	$952.51	Quantity
3	FORK BAR 331/46382	1	AVAILABLE TO ORDER	$1,318.82	Quantity
4	BOSS, LOCKING - FLOATING FORKS 331/46383	1	AVAILABLE TO ORDER	$232.02	Quantity

Showing 1 to 4 of 4 parts

DIAG-A740-1-1-400510 A740-1-1 IND FORKS & FRAME TOOL CARRIER FORK FRAME
View Diagram

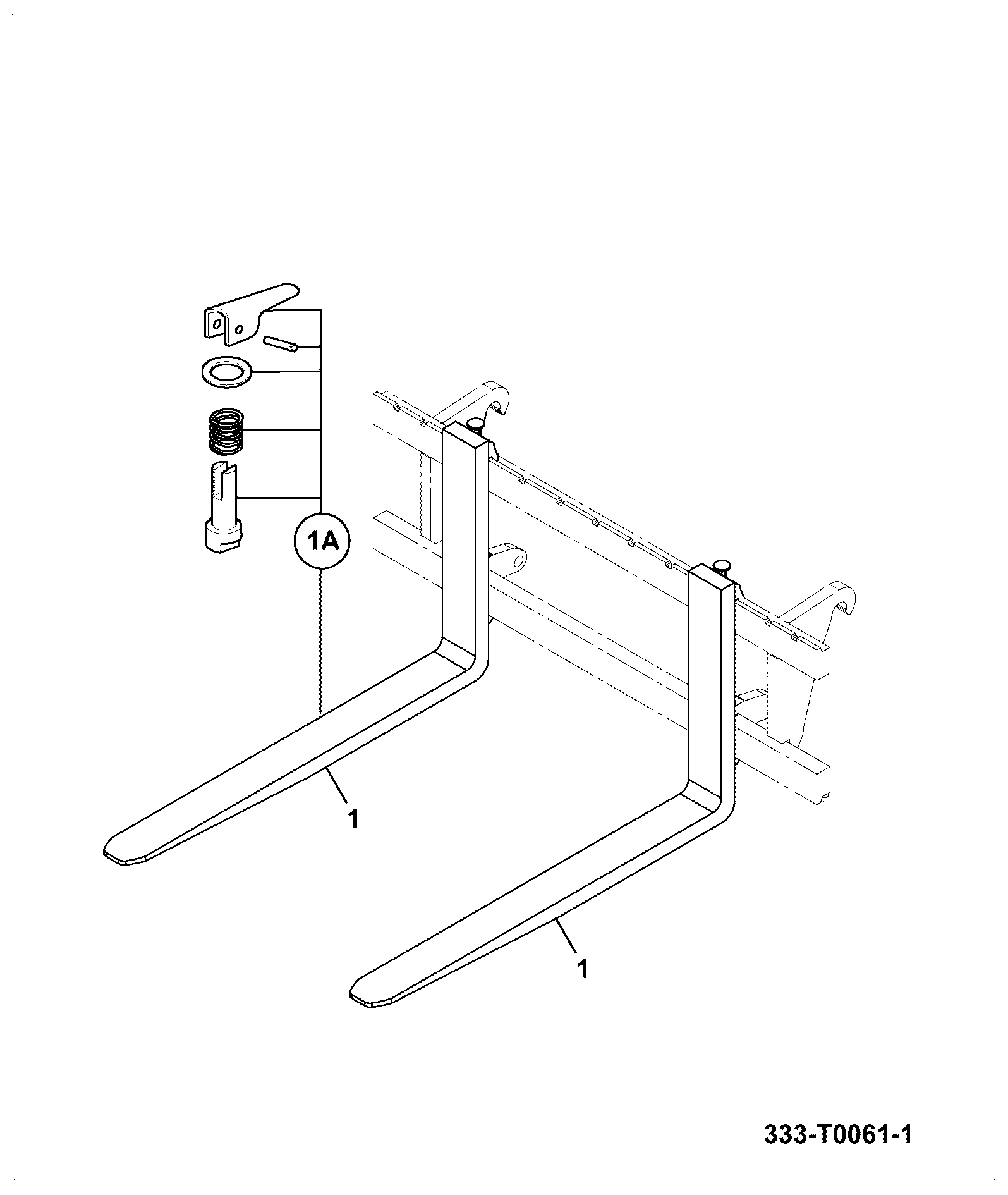

DIAG-A370-10-1-400510 A370-10-1 FORKS INDUSTRIAL FORKS 1070 LONG X 100
View Diagram

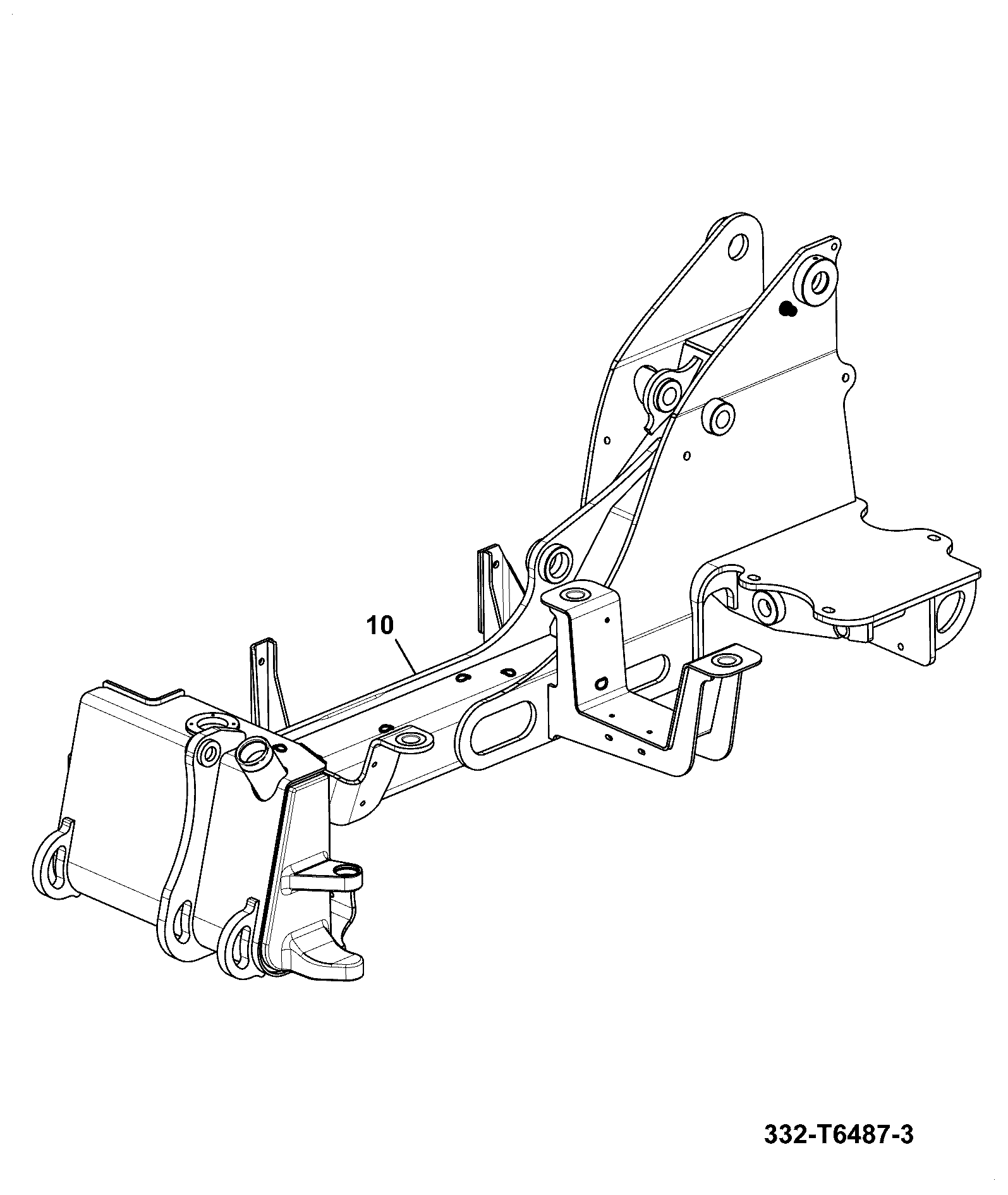

DIAG-B100-1-1-400510 B100-1-1 BODYWORK INSTALLATION ASSEMBLIES CHASSIS
