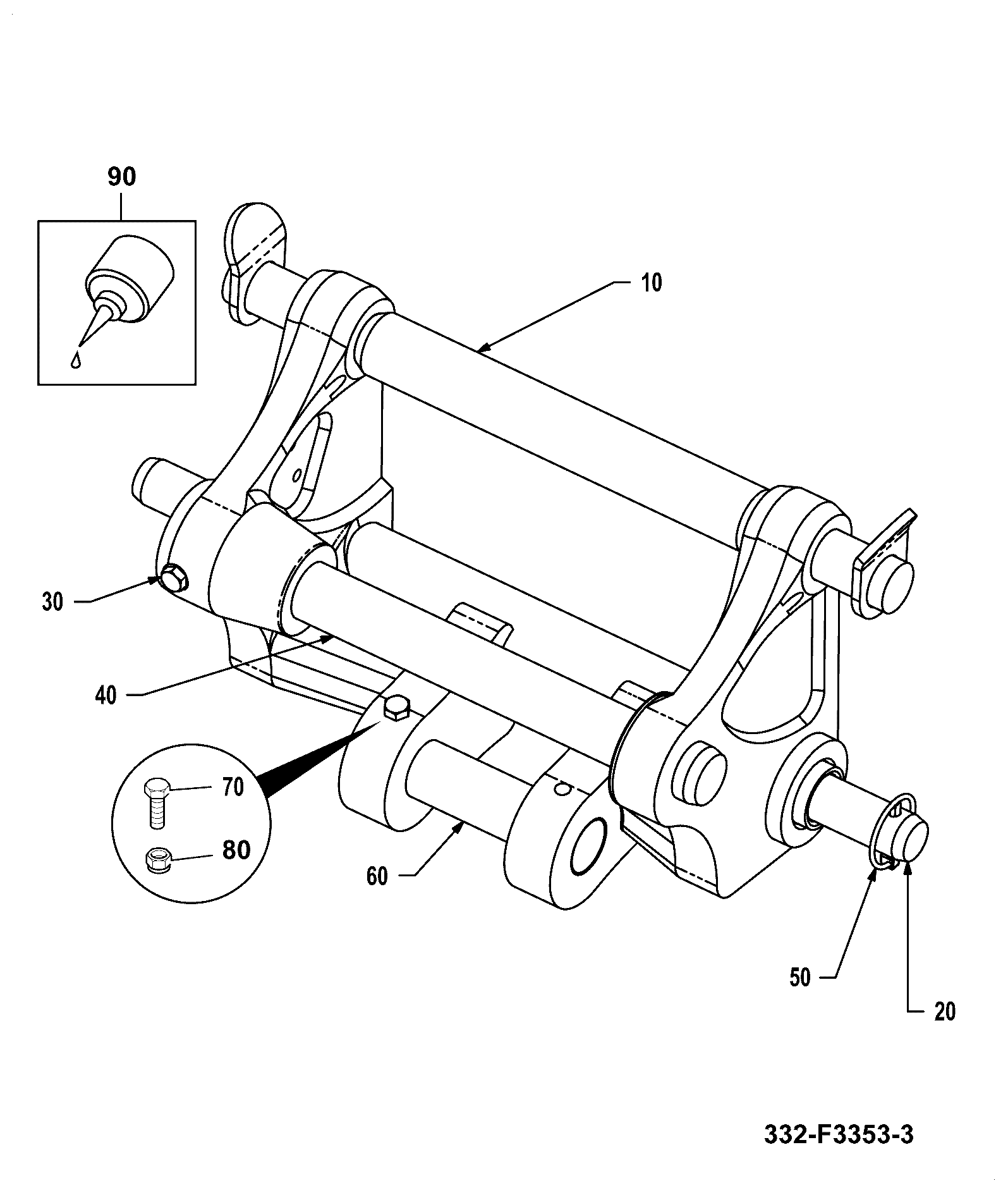

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | WA PIN/CONE CARRIAGE BLACK 333/C4445 | 1 | $4,124.95 | |||
| 20 | RAM - HITCH 332/U8686 | 1 | $890.75 | |||
| 30 | PIN - LOCKING PIN DIA 30mmx132mm 333/C1538 | 1 | $297.84 | |||
| 40 | SET SCREW M10x45 1315/0411Z | 1 | $1.46 | |||
| 50 | CAPSCREW M16 X 80 1391/3718D | 1 | $44.72 | |||
| 80 | CLAMP (2 pcs) 821/00491 | 1 | $8.88 | |||
| 90 | (W) (P) NUT M16 1370/0603 | 1 | $12.04 | |||
| 110 | SCREW 4X1/4 826/00115 | 1 | $1.43 | |||
| 120 | WA HOSE GUIDE QFIT P37 335/04281 334/F0774 | 1 | $85.60 | |||
| 130 | CAP SCREW M16x30 1391/3708D | 1 | $9.47 | |||
| 150 | PIVOT PIN 50 DIA 332/E4255 | 1 | $220.98 | |||
| 160 | PIVOT PIN 49.90 X 219 811/20075 | 1 | $177.99 | |||
| 170 | BOLT M12x110 1315/3521Z | 1 | $7.62 | |||
| 180 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $2.11 | |||
| 190 | COVER PLATE - BLACK 333/C0404 | 1 | $24.49 | |||
| 200 | (W) (P) PHILIDAS NUT 1370/0203 | 1 | $6.63 | |||
| 210 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 220 | SET SCREW M8 x 45 G8.8 (P564) 1315/0311D | 1 | $9.72 | |||
| 230 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 240 | CAP-SCREW M10 L-_25mm GRADE 12.9 1391/3407D | 1 | $2.78 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-
DIAG-A350-5-1-400839 A350-5-1 TOOL CARRIER HYDRAULIC COMPACT
View Diagram -
DIAG-A350-1-1-400839 A350-1-1 TOOL CARRIER MECHANICAL
View Diagram -
DIAG-A360-45-1-400839 A360-45-1 CARRIAGE INDUSTRIAL FORKS 1980MM LONG
View Diagram
