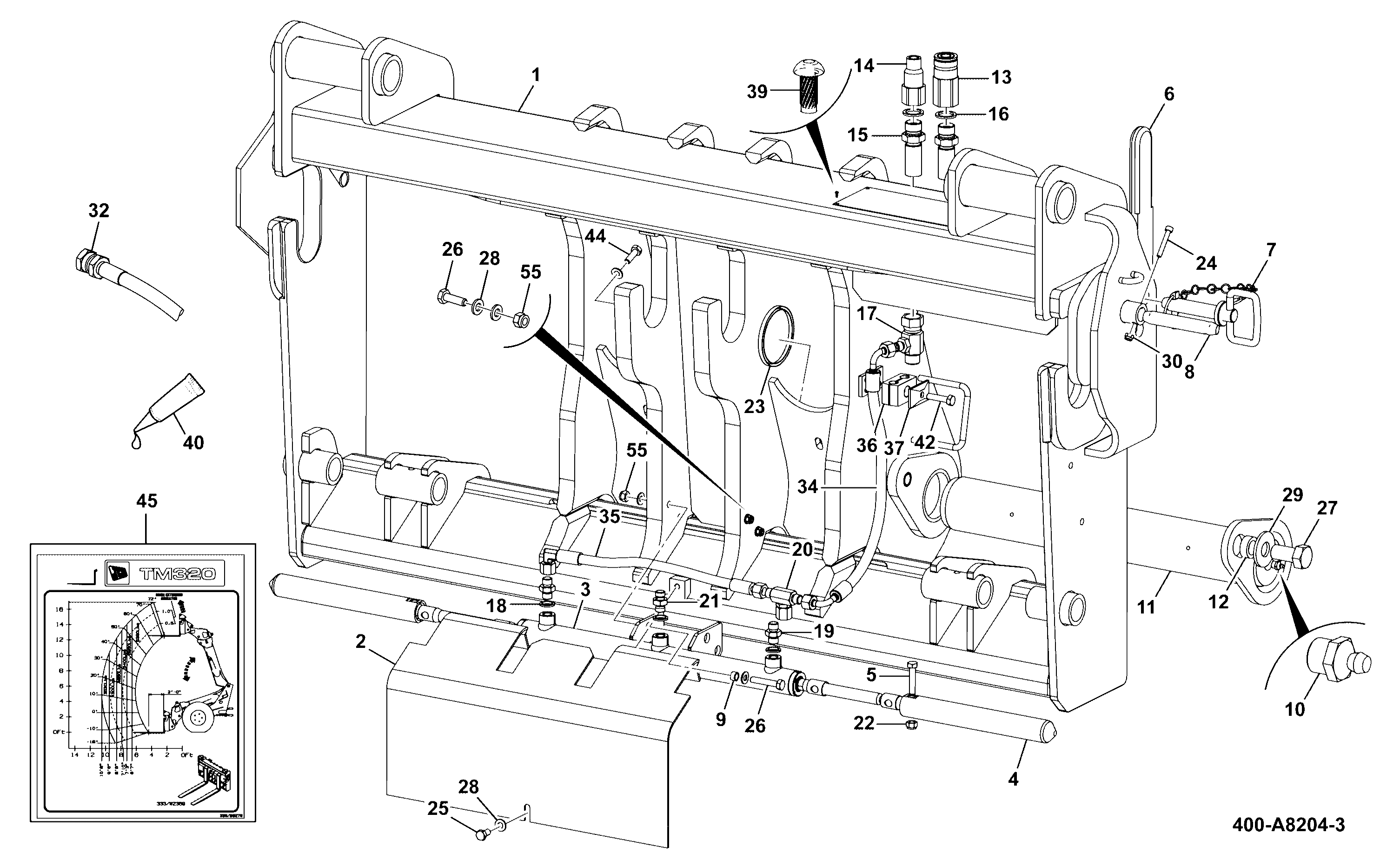

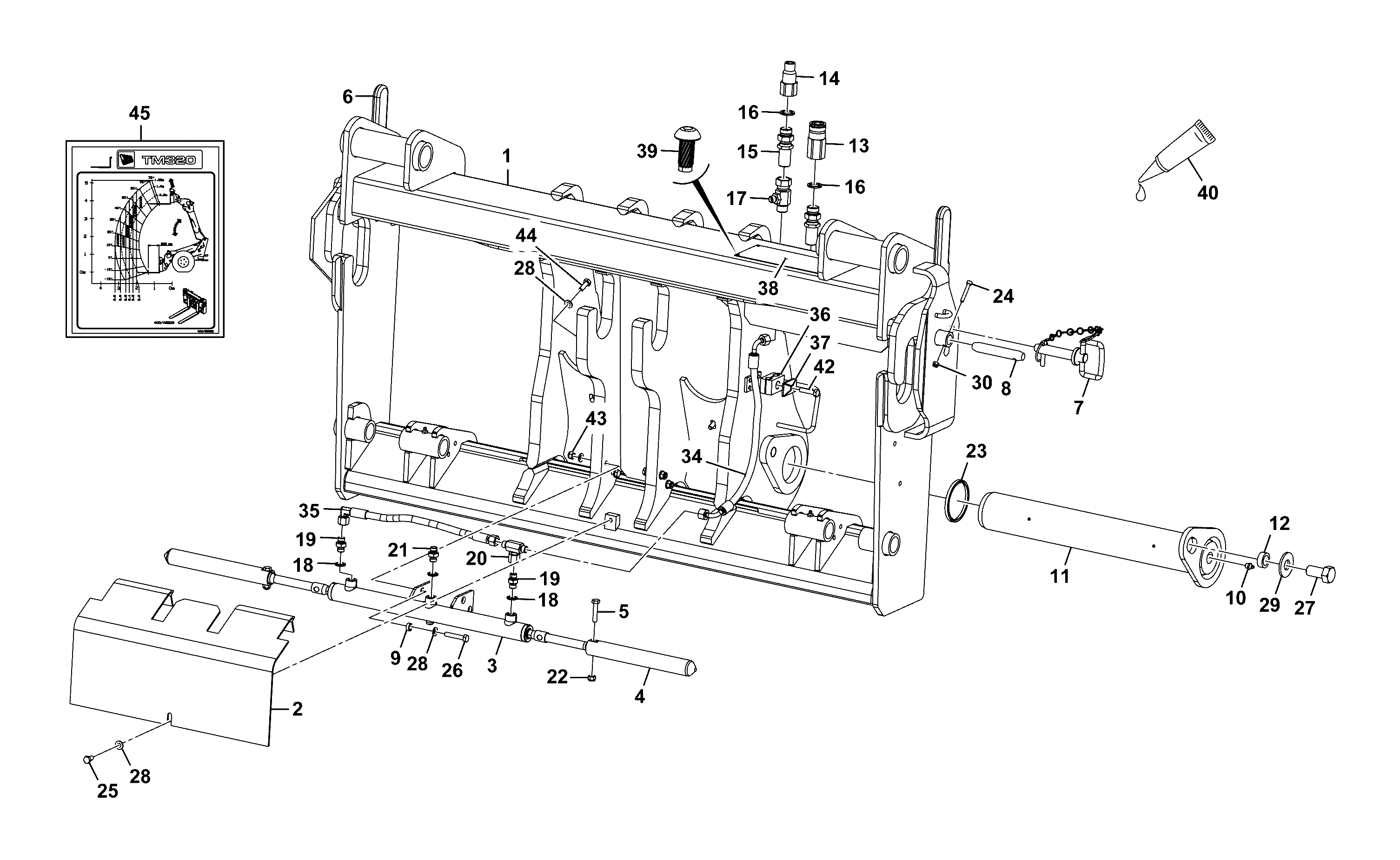

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| GA - QUICKHITCH P&C (R.O.W.) 400/A8208 | 1 | $3,709.62 | ||||
| 1 | 'TM320 P/C T4 Q/HITCH(Painted) 400/N5674 333/T4630 400/S4649 | 1 | $2,637.07 | |||
| 2 | RAM - HITCH 332/U8686 | 1 | $890.75 | |||
| 3 | COUPLING QR MALE F9 - 1/2BSP 45/910500 | 1 | $78.76 | |||
| 4 | COUPLING QR FEMALE F9 - 1/2BSP 45/910400 | 1 | $124.19 | |||
| 5 | BULKHEAD MOUNT 331/13007 | 1 | $357.70 | |||
| 6 | WASHER 1406/0018 | 1 | $4.09 | |||
| 7 | 3DAPTOR 3-WAY 816/50031 | 1 | $34.01 | |||
| 8 | WASHER M16 PLAIN 1420/0011D | 1 | $1.43 | |||
| 9 | M16 LOCK NUT 1370/0603D | 1 | $21.78 | |||
| 10 | BULKHEAD ADAPTOR 816/10149 | 1 | $65.45 | |||
| 11 | CL2 BSP ADAPTOR 816/90284 | 1 | $46.32 | |||
| 12 | LOADCHART LABEL TM320 400/D9842 | 1 | $5.79 | |||
| 13 | SPACER 265/01121 | 1 | $45.56 | |||
| 14 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 15 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 16 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 17 | HOSE 1/4BSP 230mm 611/45200 | 1 | $225.24 | |||
| 18 | Hose 1/4BSP 820mm 31AM/NA082 | 1 | $144.29 | |||
| 19 | Hose 1/4BSP 680mm 31AM/NA068 | 1 | $134.51 | |||
| 20 | WA - RAM INDICATOR 333/S0254 | 1 | $73.52 | |||
| 21 | SPIRALGUARD - 13mm ID X 150mm 333/R3122 | 1 | $7.88 | |||
| 22 | SPIRALGUARD - 13mm ID X 650mm 333/R9481 | 1 | $9.90 | |||
| 24 | 334/vPIVOT PIN DIA 75 911/40086 | 1 | $996.97 | |||
| 25 | SET SCREW M10x45 1315/0411D | 1 | $2.78 | |||
| 26 | KEEP PLATE SPACER 830/11742 | 1 | $37.27 | |||
| 27 | WASHER 823/10393 | 1 | $15.95 | |||
| 28 | BOLT M20x45 1315/0811D | 1 | $7.75 | |||
| 29 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 30 | PIVOT PIN SEAL 75-85-6 813/00415 | 1 | $86.35 | |||
| 31 | CAP SCREW M16x30 1391/3708D | 1 | $9.47 | |||
| 32 | Data plate 401/Y8099 400/00258 | 1 | $278.19 | |||
| 33 | SCREW 4X1/4 826/00115 | 1 | $1.43 | |||
| 34 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 35 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 36 | PIN - LOCKING PIN DIA 30mmx148mm 333/T3520 | 1 | $81.50 | |||
| 37 | PLATE - RAM PROTECTION RH 333/T3309 | 1 | $131.46 | |||
| 38 | PLATE - RAM PROTECTION LH 333/T3305 | 1 | $135.54 | |||
| 39 | CAP SCREWS METRIC 1391/3719D | 1 | $10.20 | |||
Showing 1 to 39 of 39 parts
Related Assemblies
-
DIAG-A340-35-1-403032 A340-35-1 LOADER QUICK HITCH ASSEMBLY Q-FIT (R.O.W)
View Diagram -
DIAG-A370-1-1-403032 A370-1-1 FORKS RETENTION, ASSEMBLY
View Diagram -
DIAG-A340-30-1-403032 A340-30-1 LOADER QUICK HITCH ASSEMBLY Q-FIT (AUS)
View Diagram
