Scroll to zoom Click a part # to view details

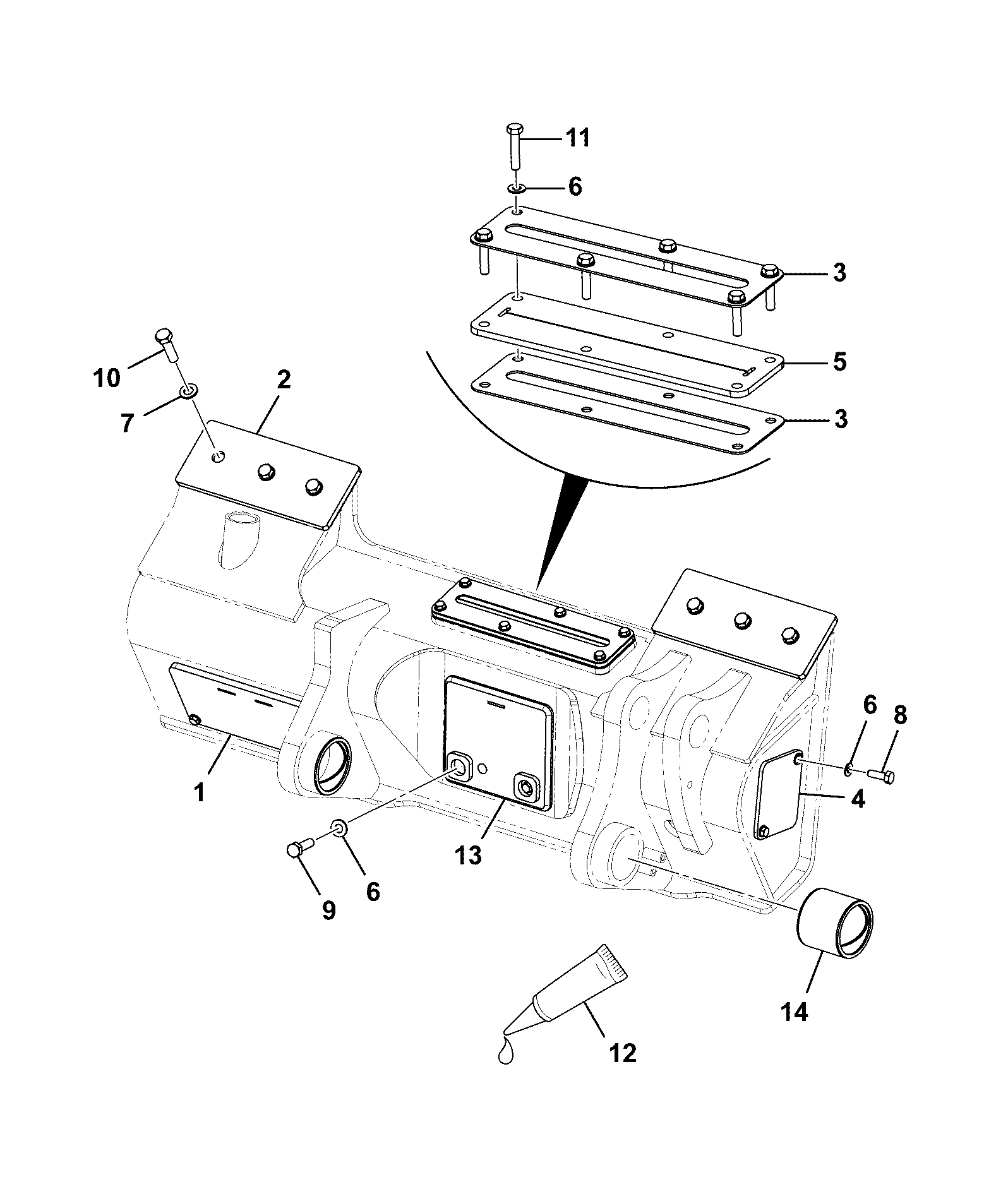

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| RETAINER BOTTOM FLAP EQH CVR BLACK 332/X8896 | 1 | $27.20 | ||||
| RUBBER FLAP BOTTOM EQH CO 332/X8894 | 1 | $13.81 | ||||
| SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $1.22 | ||||
| TAPTITE SCREW 826/01113 | 1 | $4.14 | ||||
| WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | ||||
| 1 | PADDLE-QH LH SSL BLACK HV 400/U9361 | 1 | $109.04 | |||
| 2 | PADDLE-QH RH SSL BLACK HV 400/U9469 | 1 | $125.44 | |||
| 3 | LINK - QH LP HI-VIZ 400/E7355 401/W1714 | 1 | $124.62 | |||
| 4 | MC MANUAL HANDLE (HV) 400/W0727 | 1 | $409.53 | |||
| 5 | ROD-QH HANDLE JCB BLACK (HV) 336/D3299 | 1 | $37.99 | |||
| 8 | WASHER M16 PLAIN 1420/0011Z | 1 | $3.08 | |||
| 9 | SHOULDER SCREW M12-16X25 333/X9473 | 1 | $54.03 | |||
| 11 | (W) (P) WASHER, 5/8 MEDIUM 1411/0007Z 1411/0007D | 1 | $1.49 | |||
| 12 | SET SCREW M16x25 1315/0707Z | 1 | $6.94 | |||
| 13 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $0.65 | |||
| 14 | SET-SCREW M12 L-_25mm(KANBAN) 1315/0507Z | 1 | $2.59 | |||
| 15 | BEARING-25 ID X 20 X 28 OD 333/X7971 | 1 | $29.93 | |||
| 19 | WA-INDICATOR LINK 333/X9921 402/G8360 | 1 | $16.46 | |||
| 20 | BAR-QH INDICATOR TOP 333/X9930 | 1 | $24.43 | |||
| 21 | TENSION PIN 2102/0815 | 1 | $1.69 | |||
| 22 | SHOULDER SCREW M12-16X40 333/X8065 | 1 | $80.51 | |||
| 23 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $2.11 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-
DIAG-A340-35-5-395247 A340-35-5 LOADER QUICK HITCH ASSEMBLY LINKAGE, MANUAL, TB
View Diagram -
DIAG-A340-25-5-395247 A340-25-5 LOADER QUICK HITCH ASSEMBLY MANUAL
View Diagram -
DIAG-A340-40-1-395247 A340-40-1 LOADER QUICK HITCH ASSEMBLY FITTINGS, MANUAL, TB
View Diagram
