Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | PADDLE-QH LH SSL BLACK HV 400/U9361 | 1 | $109.04 | |||
| 2 | PADDLE-QH RH SSL BLACK HV 400/U9469 | 1 | $125.44 | |||
| 3 | LINK - QH LP HI-VIZ 400/E7355 401/W1714 | 1 | $124.62 | |||
| 4 | WA-INDICATOR LINK 333/X9921 402/G8360 | 1 | $16.46 | |||
| 5 | BAR-QH INDICATOR TOP 333/X9930 | 1 | $24.43 | |||
| 6 | MACHINED BELLCRANK ELECTRIC QH Zinc 400/M3689 | 1 | $475.75 | |||
| 7 | ACTUATOR PIN QH SSL (HV) 333/X9449 | 1 | $90.35 | |||
| 8 | WA-ACTUATOR PIN HI-VIZ 333/X9436 | 1 | $97.08 | |||
| 9 | ELEC ACTUATOR 106mm STROK 334/X0057 | 1 | $997.01 | |||
| 10 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $0.65 | |||
| 11 | COTTER PIN-REUSABLE 333/X9724 | 1 | $7.96 | |||
| 12 | BOLT M12x40 1316/3510Z | 1 | $3.30 | |||
| 13 | WASHER M16 PLAIN 1420/0011Z | 1 | $3.08 | |||
| 14 | (W) (P) WASHER, 5/8 MEDIUM 1411/0007Z 1411/0007D | 1 | $1.49 | |||
| 15 | SET SCREW M16x25 1315/0707Z | 1 | $6.94 | |||
| 17 | SET-SCREW M12 L-_25mm(KANBAN) 1315/0507Z | 1 | $2.59 | |||
| 18 | BEARING-25 ID X 20 X 28 OD 333/X7971 | 1 | $29.93 | |||
| 24 | SHOULDER SCREW M12-16X25 333/X9473 | 1 | $54.03 | |||
| 25 | TENSION PIN 2102/0815 | 1 | $1.69 | |||
| 26 | SHOULDER SCREW M12-16X40 333/X8065 | 1 | $80.51 | |||
| 27 | NUT M12 1370/0408Z | 1 | $3.09 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-

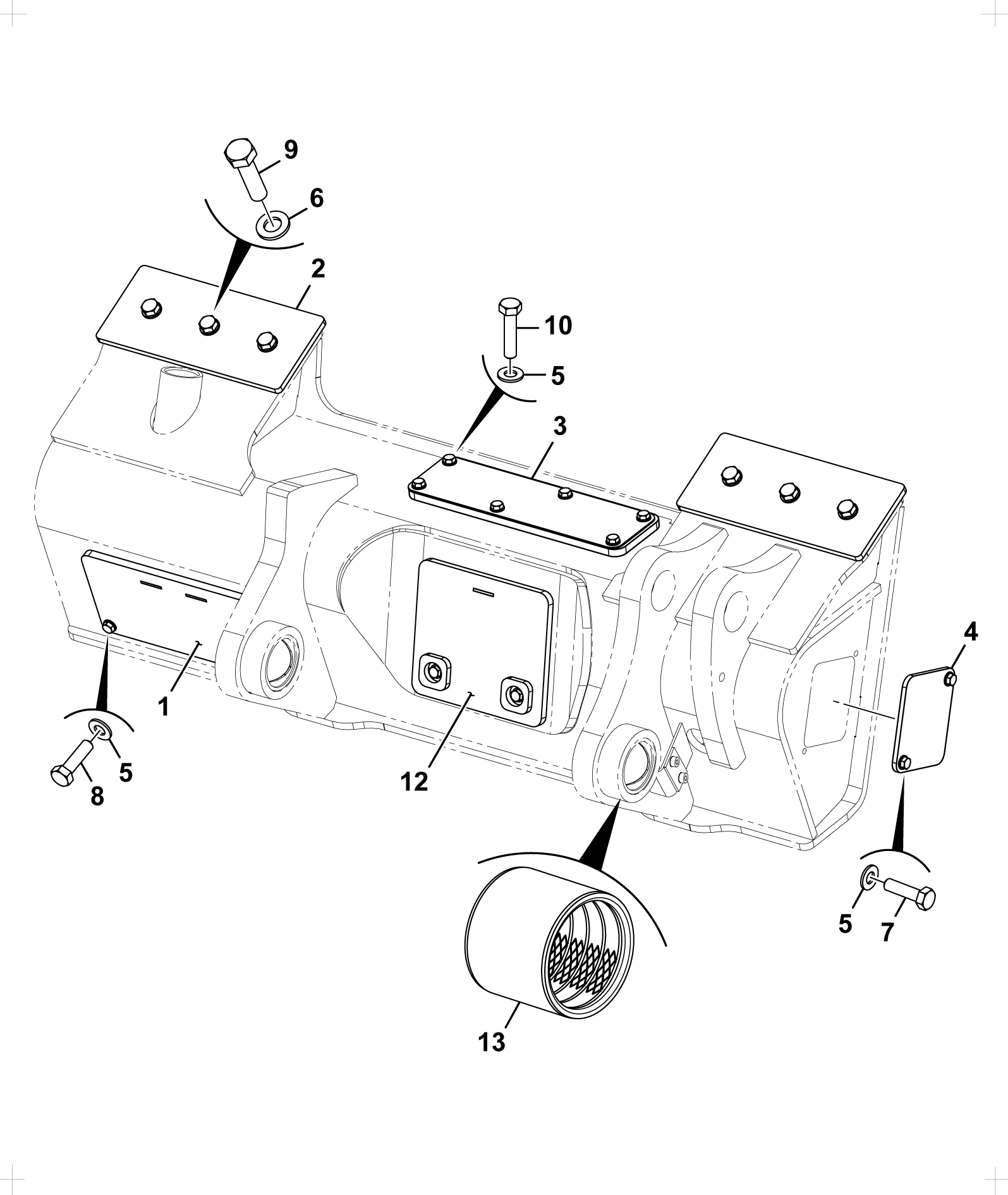

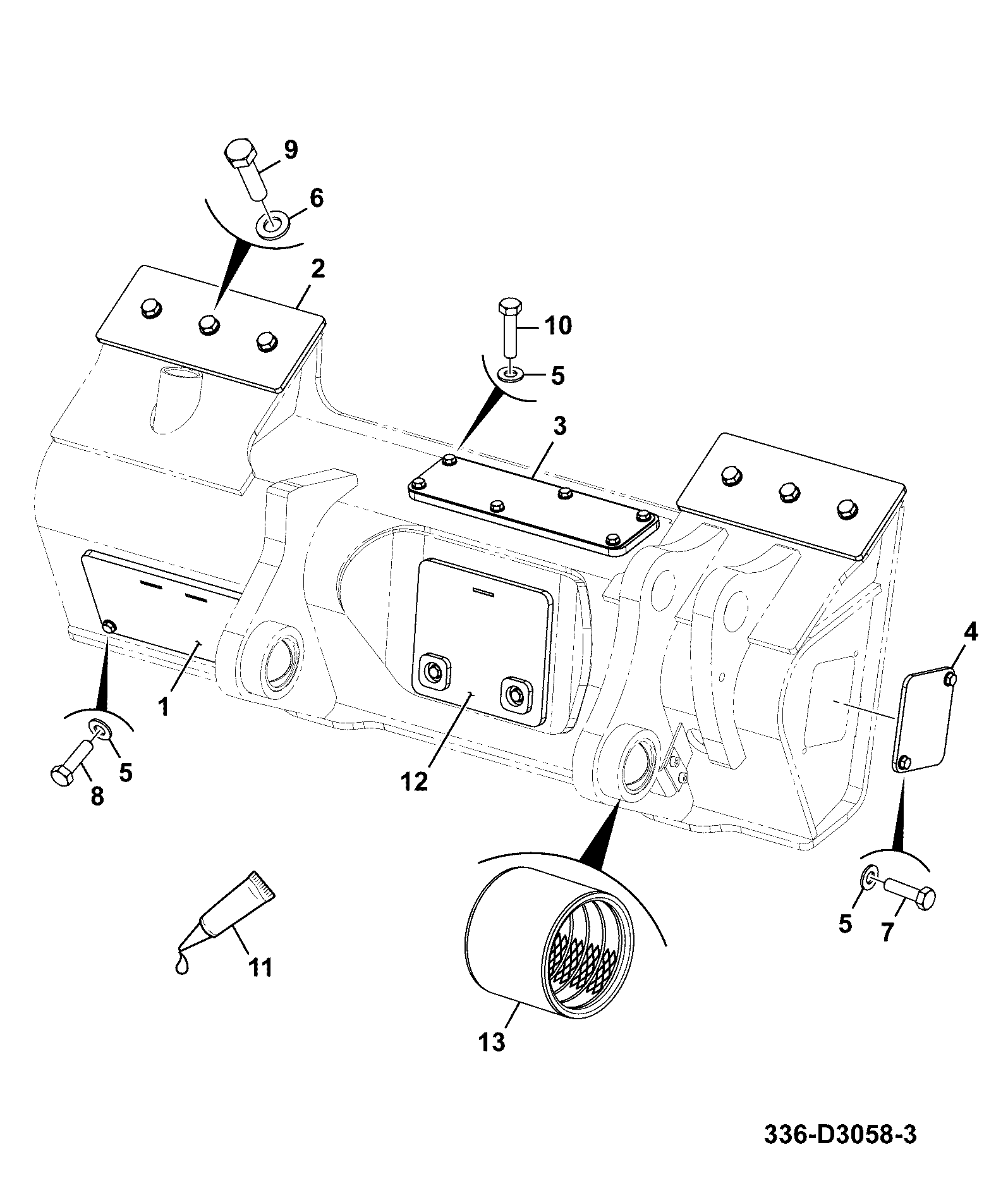

DIAG-A340-20-5-395370 A340-20-5 LOADER QUICK HITCH FITTINGS & MOUNTINGS ELECTRIC
View Diagram -
DIAG-A340-25-5-395370 A340-25-5 LOADER QUICK HITCH LINKAGE ASSEMBLY,ELECTRIC QUICKHITCH
View Diagram -
DIAG-A340-20-1-395370 A340-20-1 LOADER QUICK HITCH FITTINGS & MOUNTINGS ELECTRIC
View Diagram
