Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

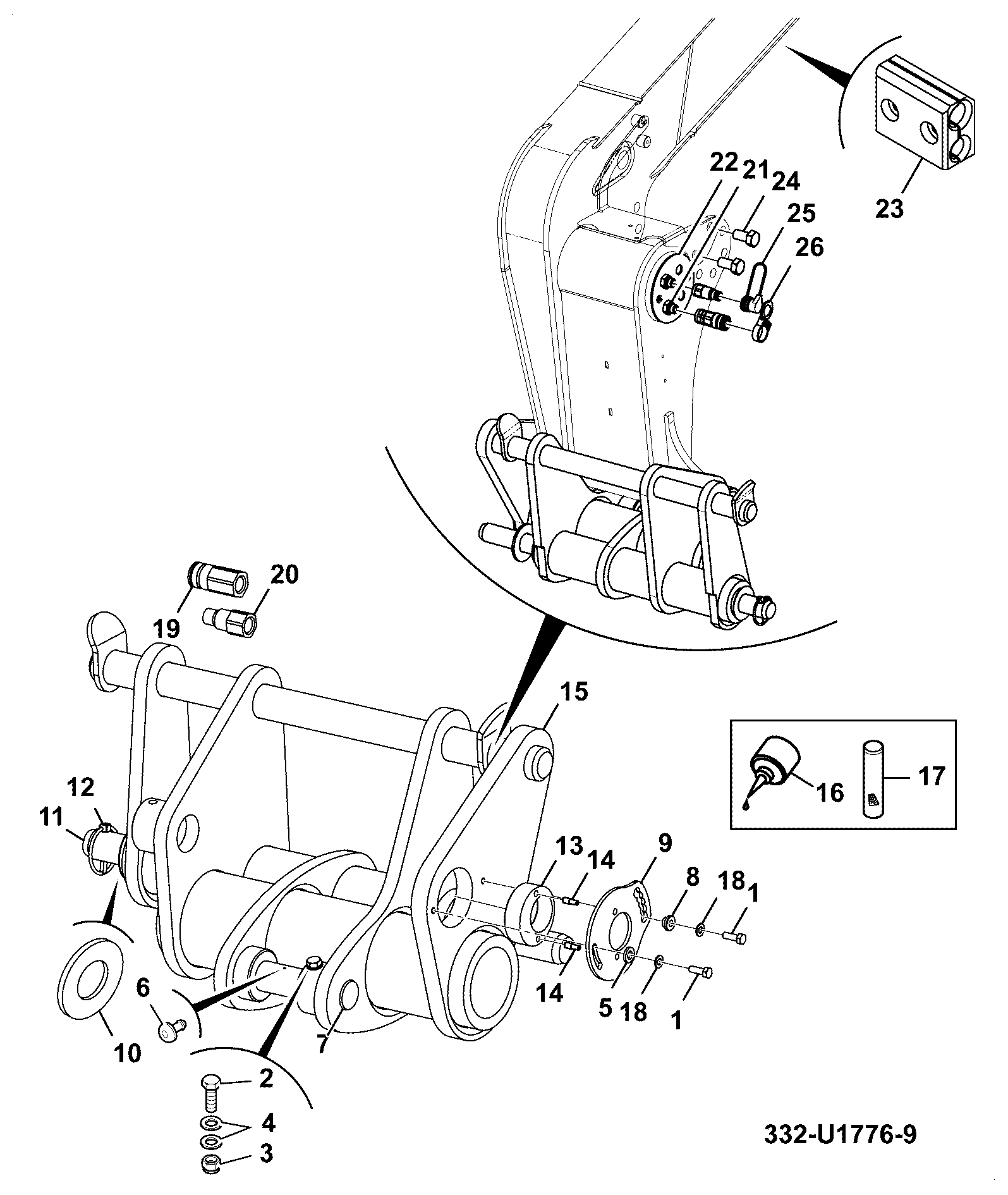

| GA - QUICK HITCH 332/U2168 | 1 | $2,872.58 | ||||
| 1 | QUICK HITCH - M/C 332/W7732 333/P6778 | 1 | $1,874.74 | |||
| 2 | PIN, RELEASE 290/01193 | 1 | $204.05 | |||
| 3 | COMPRESSION SPRING 814/00351 | 1 | $8.89 | |||
| 4 | Link peg 290/63000 | 1 | $90.02 | |||
| 5 | Plate link 290/01192 | 1 | $43.11 | |||
| 6 | Handle Quick relea 290/01191 | 1 | $73.55 | |||
| 7 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 8 | SET-SCREW M10 L-_40mm 1315/0410D | 1 | $2.49 | |||
| 9 | ADJUSTER PLATE 332/W7484 335/G9339 | 1 | $86.06 | |||
| 10 | STEPPED PIN 335/G9357 | 1 | $46.57 | |||
| 11 | WASHER M10 1422/0008D JHP0046 | 1 | $11.36 | |||
| 12 | Setscrew M10x30 TU 1318/0408D | 1 | $2.08 | |||
| 13 | TOP HAT BOSS 332/W7424 | 1 | $26.77 | |||
| 14 | PIVOT PIN DIA.40 X 163 332/V1555 332/L1056 | 1 | $139.86 | |||
| 15 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 16 | BOLT M10x80 1315/3418D | 1 | $2.43 | |||
| 17 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 18 | Nut M12 STD SELF LOCK 1370/0403D | 1 | $1.01 | |||
| 19 | WASHER 1/2" MEDIUM 1411/0005D | 1 | $0.89 | |||
| 20 | BOLT M12 X 75 1315/3517D | 1 | $7.72 | |||
| 21 | ECCENTRIC BUSH 335/F4346 | 1 | $230.12 | |||
| 22 | WASHER LOCK M10 823/10261 | 1 | $5.93 | |||
| 23 | QRC 12 FEMALE - 12 SAE 45/920047 | 1 | $194.17 | |||
| 24 | COUPLING QR MALE HQ12 - 12SAE 45/920048 | 1 | $58.34 | |||
| 25 | ADAPTOR STR BULKHEAD 816/90585 | 1 | $210.78 | |||
| 26 | BULKHEAD PLATE 332/S4950 | 1 | $13.22 | |||
| 27 | ABI BOOM HOSE CLAMP 334/S7528 | 1 | $59.37 | |||
| 28 | BOLT 1316/0810D | 1 | $30.90 | |||
| 29 | DUST CAP - QRC A13 RED 45/908401 | 1 | $3.85 | |||
| 30 | DUST CAP - QRC MALE 45/910301 | 1 | $4.38 | |||
Showing 1 to 31 of 31 parts
Related Assemblies
-
DIAG-A350-3-5-400506 A350-3-5 TOOL CARRIER ASSEMBLY
View Diagram -

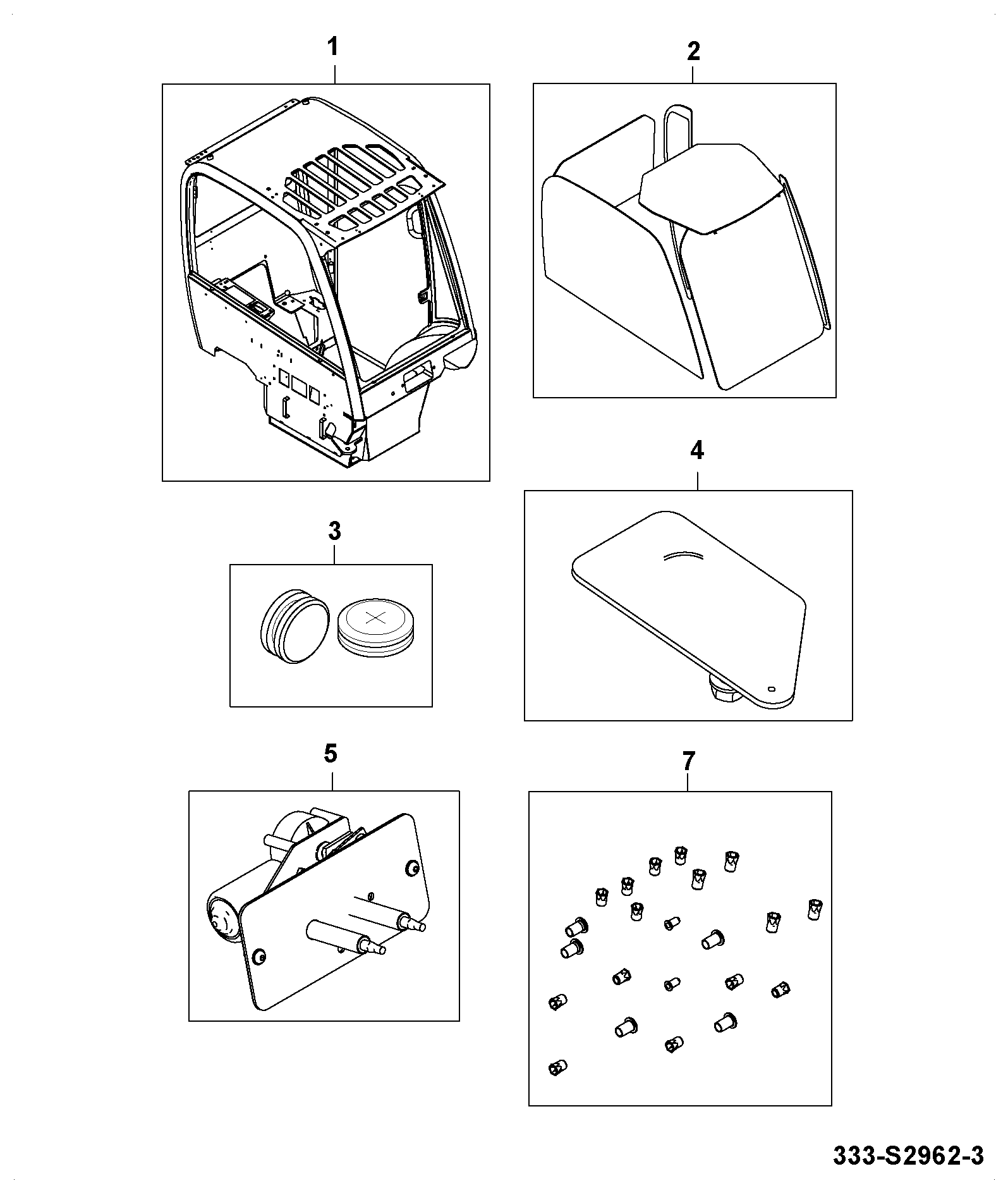

DIAG-B200-1-85-400506 B200-1-85 OPERATOR ENCLOSURE INSTALLATION ASSEMBLIES CAB WIPER/NO DOOR
View Diagram -

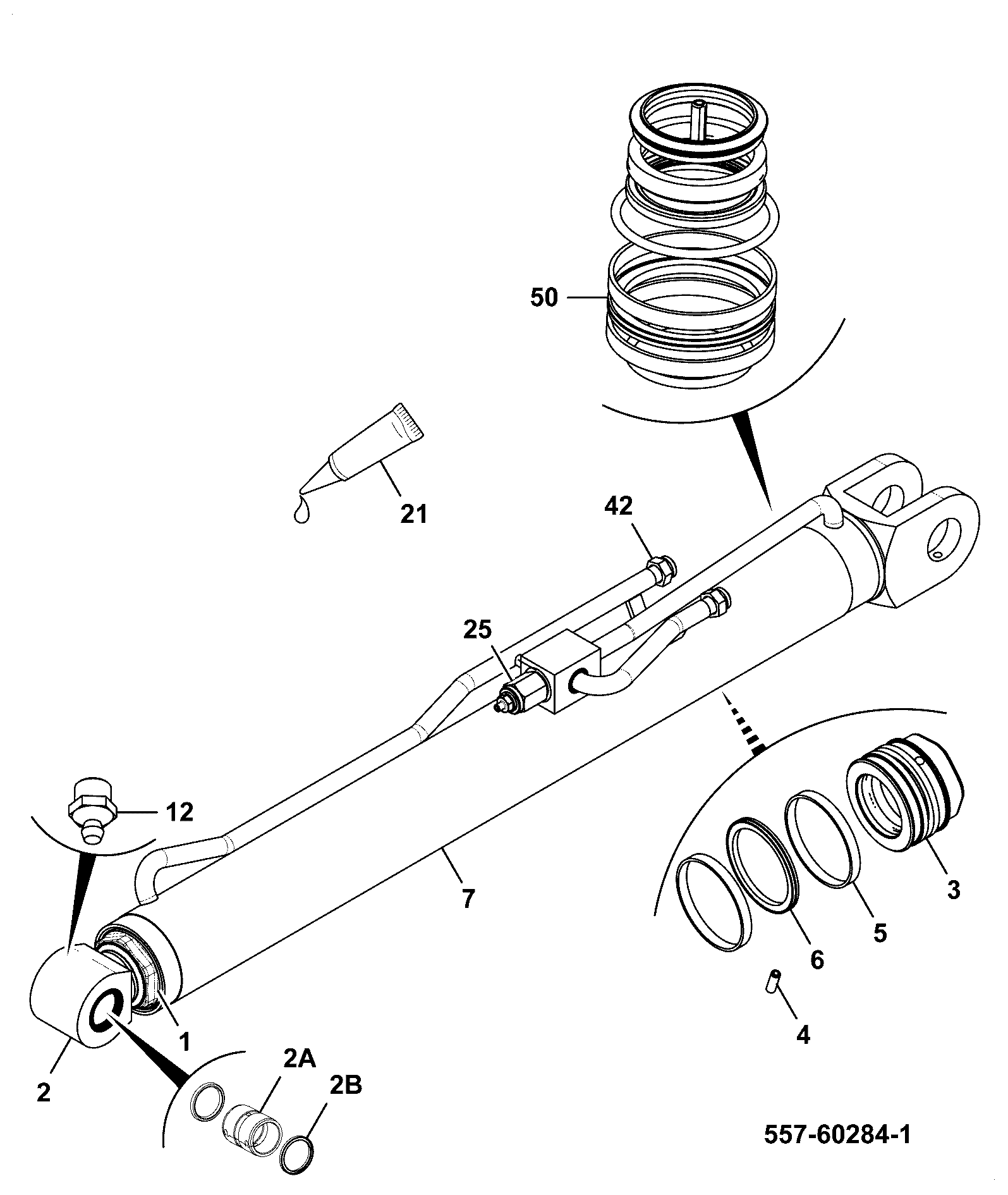

DIAG-E440-16-2-400505 E440-16-2 RAM LIFT 90 X 60
