Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| GA - QUICK HITCH 332/U2168 | 1 | $2,872.58 | ||||
| 1 | QUICK HITCH - M/C 332/W7732 333/P6778 | 1 | $1,874.74 | |||
| 2 | PIN, RELEASE 290/01193 | 1 | $204.05 | |||
| 3 | COMPRESSION SPRING 814/00351 | 1 | $8.89 | |||
| 4 | Link peg 290/63000 | 1 | $90.02 | |||
| 5 | Plate link 290/01192 | 1 | $43.11 | |||
| 6 | Handle Quick relea 290/01191 | 1 | $73.55 | |||
| 7 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 8 | SET-SCREW M10 L-_40mm 1315/0410D | 1 | $2.49 | |||
| 9 | ADJUSTER PLATE 332/W7484 335/G9339 | 1 | $86.06 | |||
| 10 | Pin Precision 2105/1407 | 1 | $57.24 | |||
| 11 | WASHER M10 1422/0008D JHP0046 | 1 | $11.36 | |||
| 12 | Setscrew M10x30 TU 1318/0408D | 1 | $2.08 | |||
| 13 | TOP HAT BOSS 332/W7424 | 1 | $26.77 | |||
| 14 | PIVOT PIN DIA.40 X 163 332/V1555 332/L1056 | 1 | $139.86 | |||
| 15 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 16 | BOLT M10x80 1315/3418D | 1 | $2.43 | |||
| 17 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 18 | Nut M12 STD SELF LOCK 1370/0403D | 1 | $1.01 | |||
| 19 | WASHER 1/2" MEDIUM 1411/0005D | 1 | $0.89 | |||
| 20 | BOLT M12 X 75 1315/3517D | 1 | $7.72 | |||
| 21 | ECCENTRIC BUSH 332/W7503 333/P6773 | 1 | $253.31 | |||
| 22 | WASHER LOCK M10 823/10261 | 1 | $5.93 | |||
| 23 | COUPLING QUICK REL 45/913900 | 1 | $125.69 | |||
| 24 | COUPLING QR MALE A13 - 1/2BSP 45/914000 | 1 | $185.71 | |||
Showing 1 to 25 of 25 parts
Related Assemblies
-

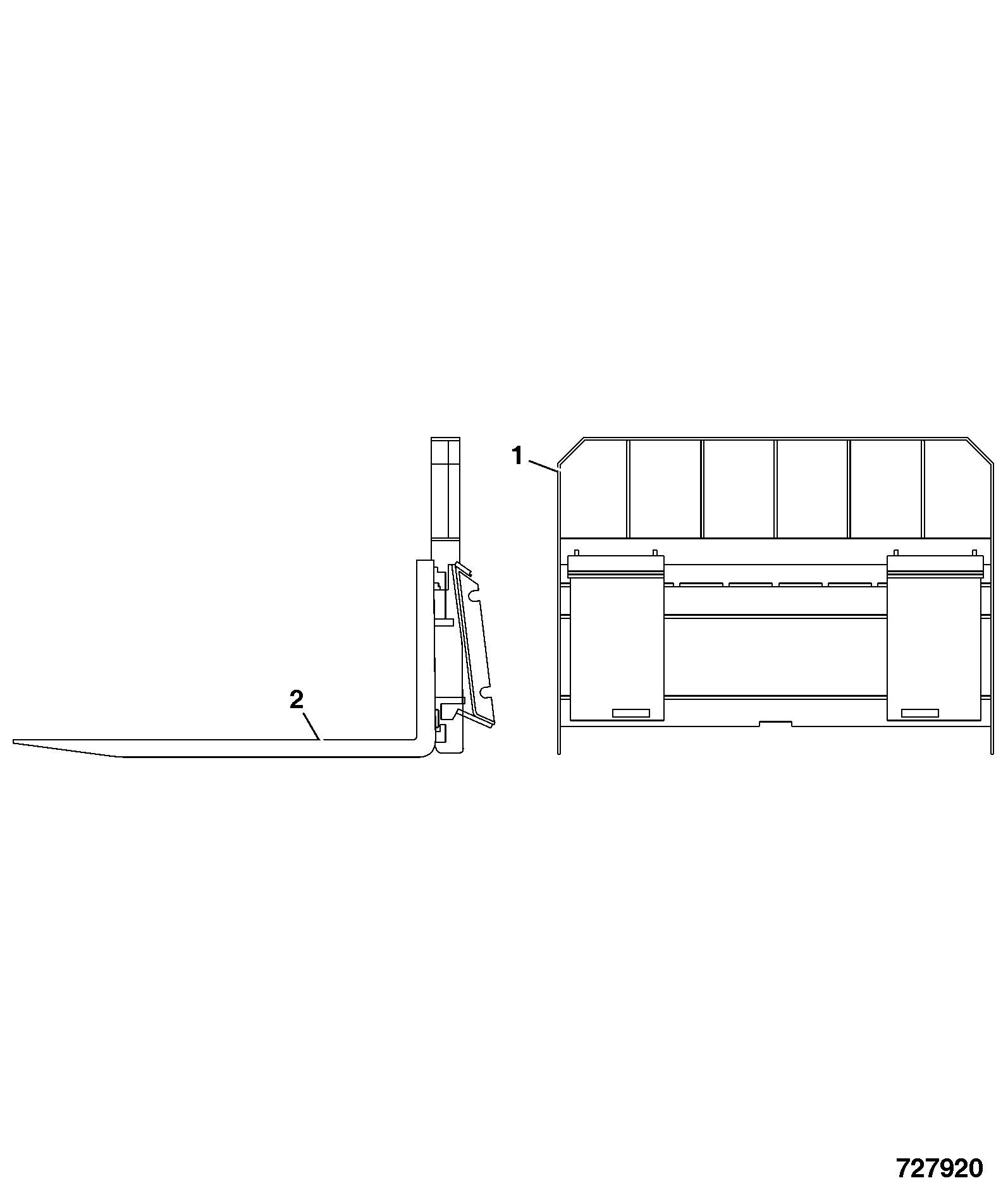

DIAG-A300-9-1-400504 A300-9-1 FRAME FIXED FORKS
View Diagram -

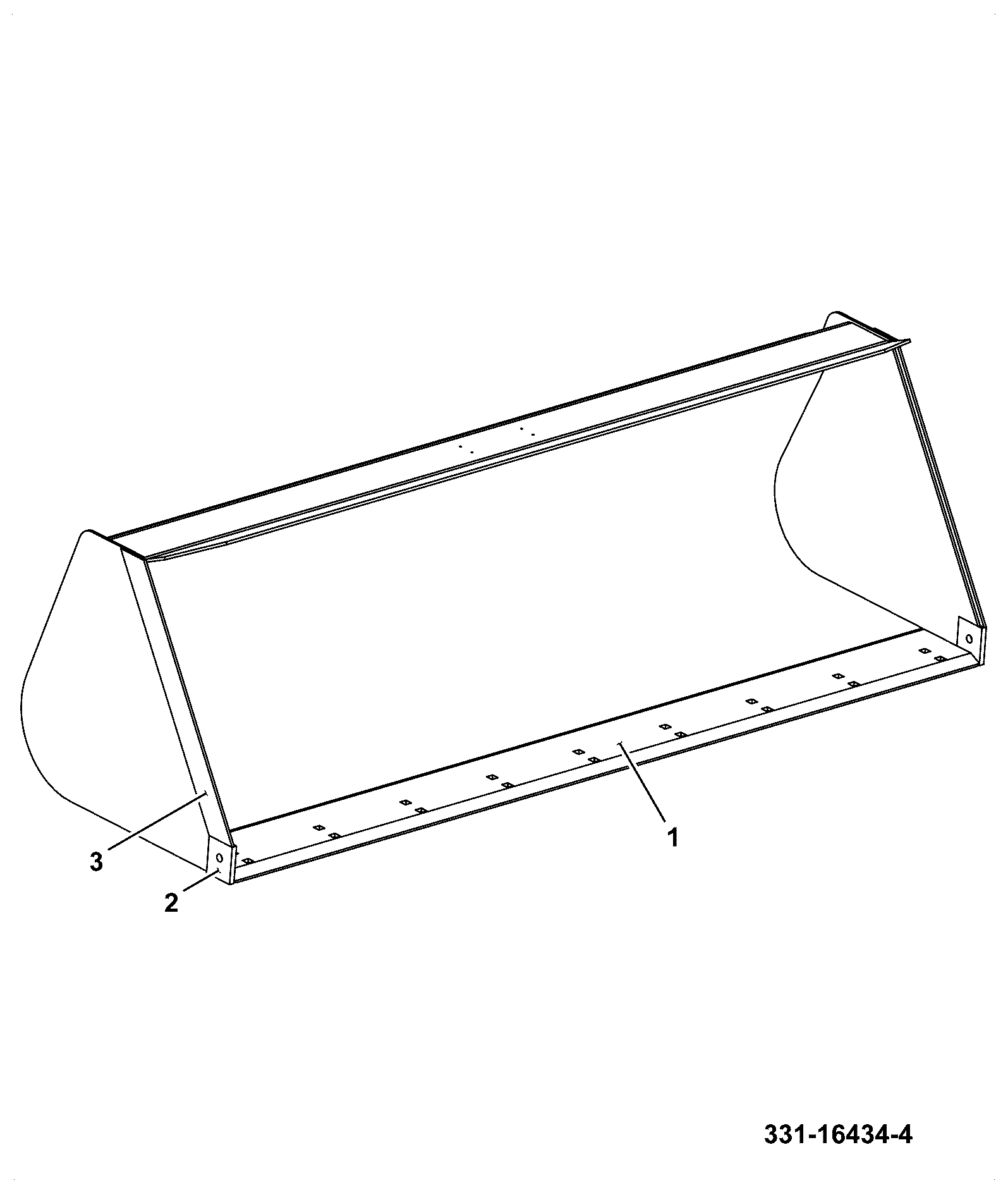

DIAG-A110-30-1-400504 A110-30-1 GENERAL PURPOSE SHOVEL 0.37 CU/M
View Diagram -

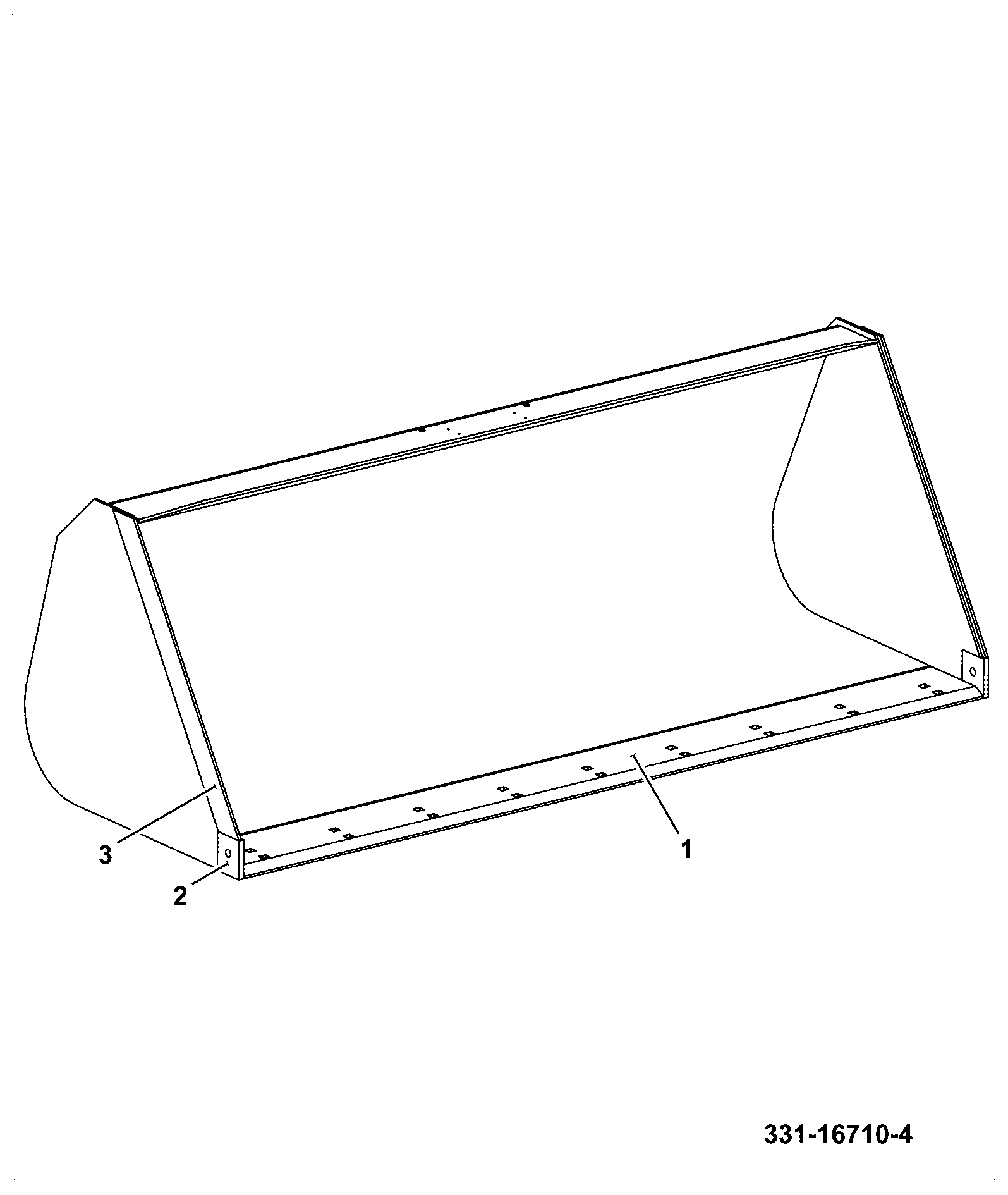

DIAG-A110-25-1-400504 A110-25-1 GENERAL PURPOSE SHOVEL 0.37 CU/M
View Diagram
