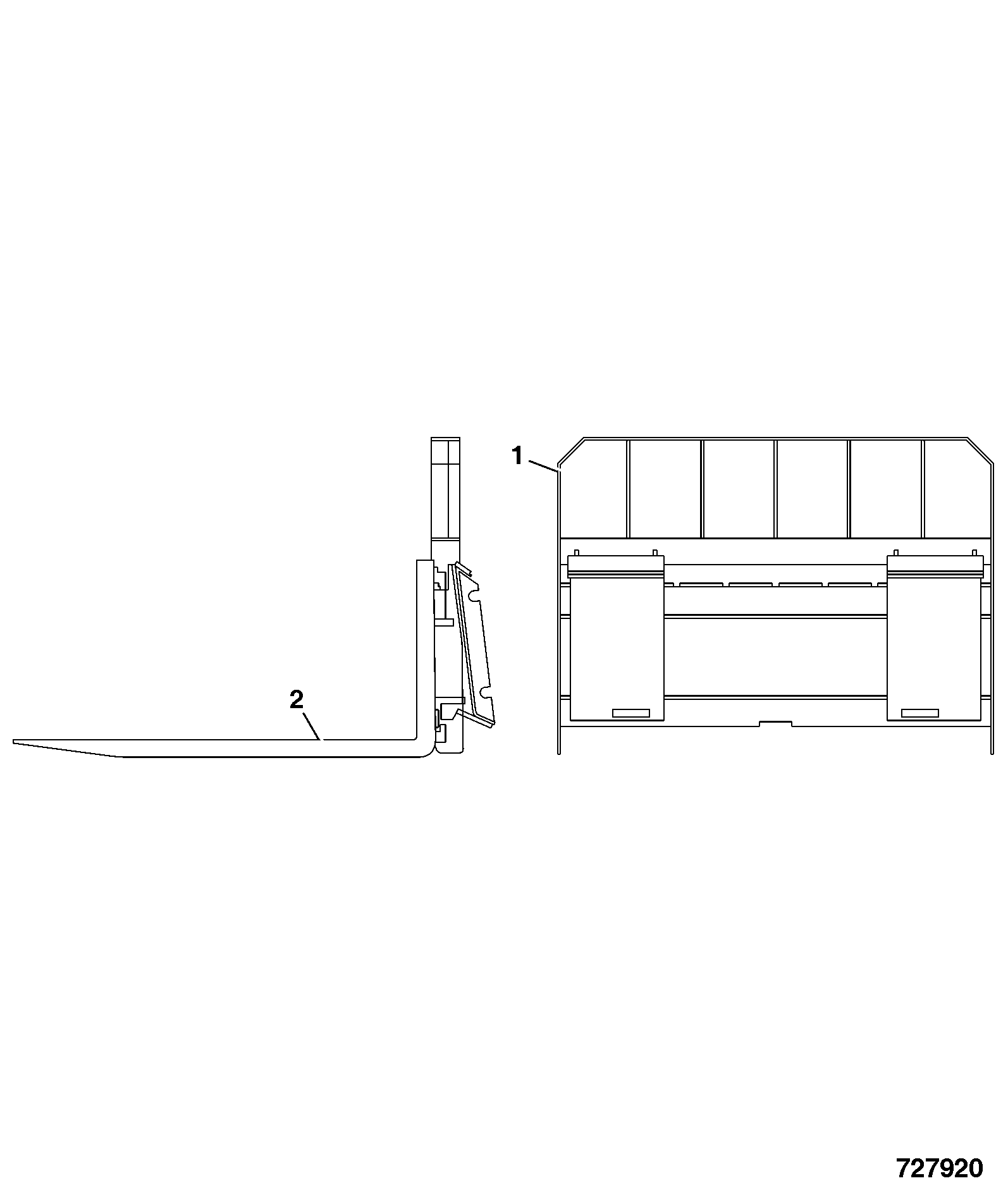

A3-9-1 FRAME FLOATING FORKS G.A Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	FLOATING FORK FRAME G/A w/ forks 980/89727	1	AVAILABLE TO ORDER	$8,225.94	Quantity
2	FORK FLOATING 331/46381	1	AVAILABLE TO ORDER	$952.51	Quantity
3	FORK BAR 331/46382	1	AVAILABLE TO ORDER	$1,318.82	Quantity
4	BOSS, LOCKING - FLOATING FORKS 331/46383	1	AVAILABLE TO ORDER	$232.02	Quantity

Showing 1 to 4 of 4 parts

DIAG-A3-8-1-400495 A3-8-1 FIXED FORK FRAME
View Diagram
DIAG-A3-7-1-400495 A3-7-1 CARRIAGE, SIDESHIFT
View Diagram
DIAG-A3-40-1-400495 A3-40-1 ATTACHMENT KITS
View Diagram

Previous Assembly DIAG-A3-8-1-400495 A3-8-1 FIXED FORK FRAME Next Assembly DIAG-A3-40-1-400495 A3-40-1 ATTACHMENT KITS
