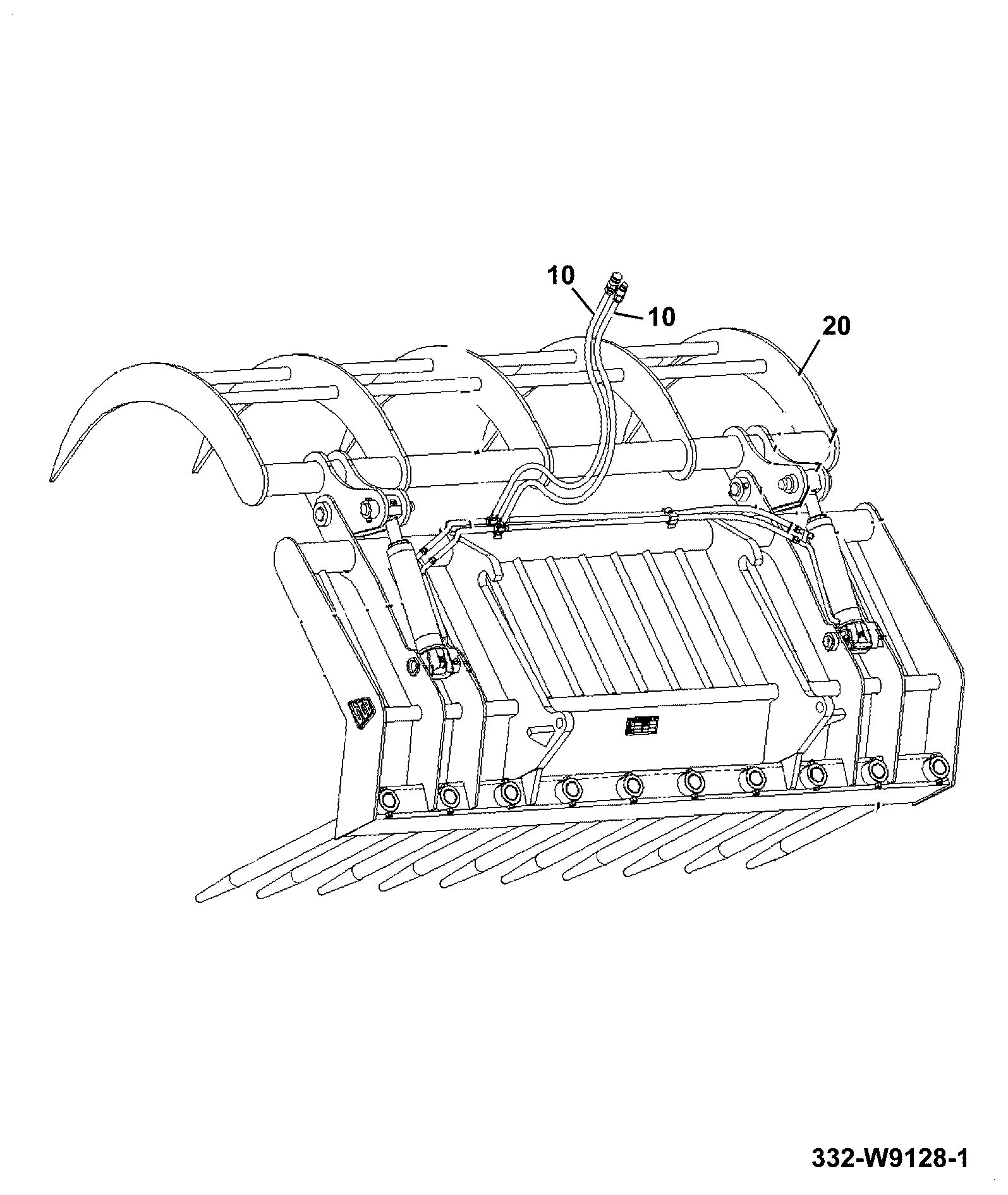

A3-82-1 MUCK FORK TOP GRAB (Quick Hitch Fit) Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	KIT SEAL 545/45307	1	AVAILABLE TO ORDER	$632.13	Quantity
	MUCK FORK & TOP GRAB GA 980/88222	1	AVAILABLE TO ORDER	$8,558.83	Quantity
	RAM ASSY 545/45300	1	AVAILABLE TO ORDER	$2,161.40	Quantity
2	TINE 980/24601	1	AVAILABLE TO ORDER	$199.44	Quantity

Showing 1 to 4 of 4 parts
