Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

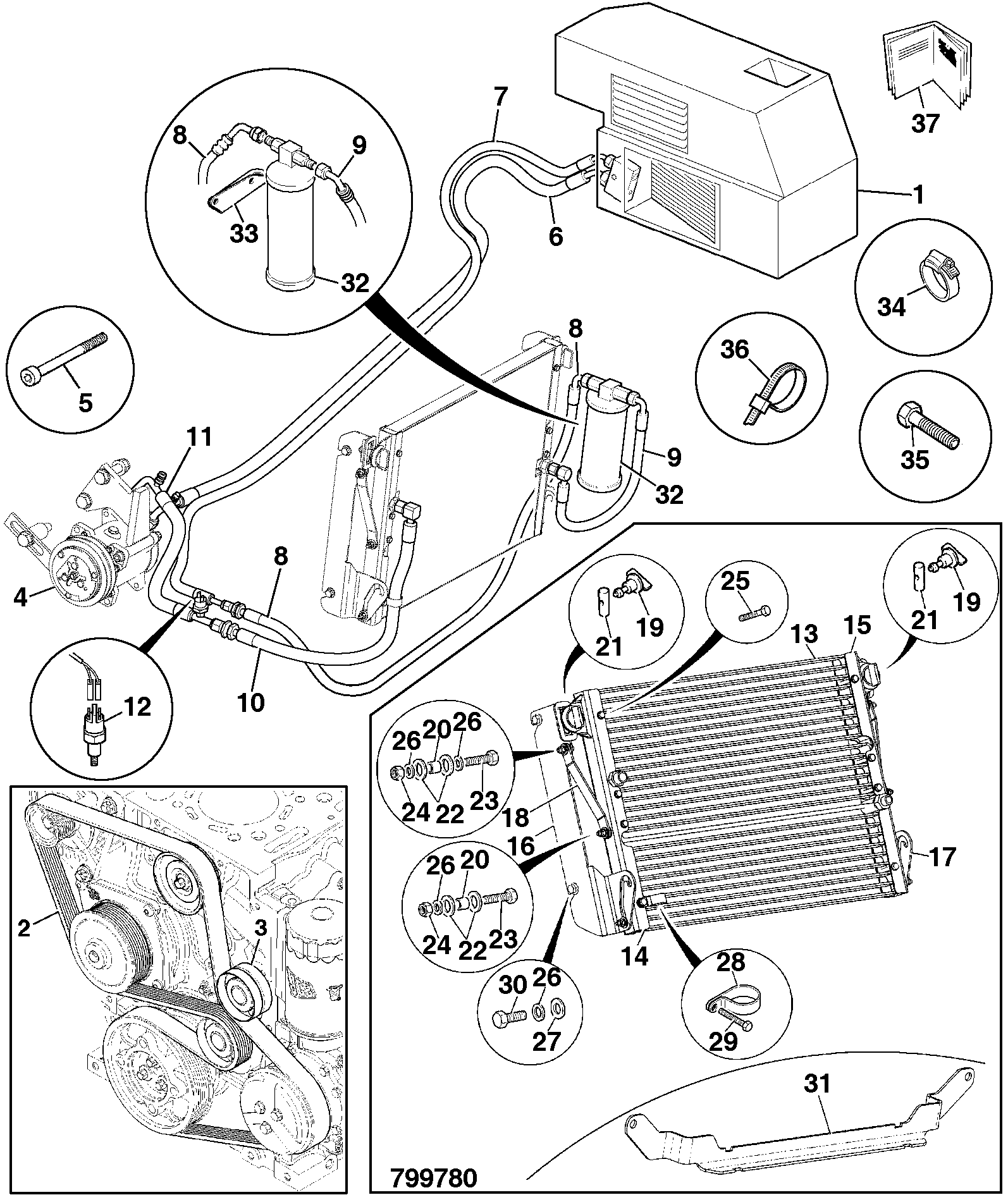

| (Z) AIR CONDITIONER KIT(VISTA) 980/89526 | 1 | $2,431.01 | ||||
| 1 | ABI - AIRCON 332/D0577 160/13917 | 1 | $2,579.62 | |||
| 2 | COMPRESSOR 12V 123/04998 | 1 | $842.18 | |||
| 3 | BRACKET COMPRESOR 335/05049 | 1 | $439.23 | |||
| 4 | COMPRESSOR STAY 331/33464 | 1 | $54.24 | |||
| 5 | SPACER 829/30879 | 1 | $29.02 | |||
| 6 | CAP SCREW M10x130 1391/3423 | 1 | $4.35 | |||
| 7 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 8 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 9 | BOLT M16x70 1315/3716Z | 1 | $5.10 | |||
| 10 | WASHER M16 PLAIN 1420/0011Z | 1 | $3.08 | |||
| 11 | NUT M16 STD SELF LOCK 1370/0603Z | 1 | $2.66 | |||
| 12 | SET SCREW M16x40 1315/0710Z | 1 | $8.92 | |||
| 13 | BOLT M16x75 1315/3717Z | 1 | $5.25 | |||
| 14 | (Z) BELT DRIVE 01/130301 | 1 | $47.28 | |||
| 15 | AIR CON. HOSE No. 8 649/51485 | 1 | $283.03 | |||
| 16 | AIR CON. HOSE No.8 649/51486 | 1 | $341.07 | |||
| 17 | AIR CON. HOSE No.6 TO M16 649/51487 | 1 | $150.31 | |||
| 18 | AIR CON. HOSE M16 TO No.6 649/51488 | 1 | $209.89 | |||
| 18 | AIR CON. HOSE M16 TO No6 649/51782 | 1 | $195.29 | |||
| 19 | AIR CON. HOSE No.6 649/51489 | 1 | $328.00 | |||
| 20 | AIR CON. HOSE No.10 649/51590 | 1 | $230.52 | |||
| 21 | (W) (P) BINARY SWITCH 335/E4691 701/58726 | 1 | $172.21 | |||
| 22 | BRACKET HOSE GUIDE 162/02790 | 1 | $26.30 | |||
| 23 | CONDENSER aircon 30/925766 | 1 | $720.59 | |||
| 24 | WA RH CONDR S/FRM 335/04985 | 1 | $149.39 | |||
| 25 | WA LH CONDENSER S/FRM 335/04992 | 1 | $149.39 | |||
| 26 | WA RH PIVOT PLATE 335/04993 | 1 | $439.35 | |||
| 27 | WA LH PIVOT PLATE 335/04994 | 1 | $439.02 | |||
| 28 | LINK PRESSING 331/33282 | 1 | $20.50 | |||
| 29 | 1_4 TURN FASTENER 826/10532 | 1 | $65.46 | |||
| 30 | PIVOT SPACER 829/30874 | 1 | $1.64 | |||
| 31 | RETAINER 478/00288 | 1 | $26.12 | |||
| 32 | NYLON WASHER M8 123/04791 | 1 | $2.82 | |||
| 33 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | |||
| 34 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 35 | BOLT M6x40 1315/3210Z | 1 | $0.81 | |||
| 36 | (W) WASHER 5/16 MED PLAIN 1411/0002Z | 1 | $0.26 | |||
| 37 | (W) P-CLIP - 25mm(KANBAN) 821/00329 | 1 | $6.83 | |||
| 38 | (W) (Pre-P)-SET SCREW M6x45 1315/0211Z | 1 | $2.47 | |||
| 39 | SET SCREW M8x16 NYLON 1318/0303Z | 1 | $0.55 | |||
| 40 | RECEIVER DRIER 162/03026 | 1 | $212.40 | |||
| 41 | WA RECEIVER DRIER BRACKET 335/08422 | 1 | $240.30 | |||
| 42 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | |||
| 43 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 44 | CLIP - WORMDRIVE 35/50mm(KANBAN). 2201/0009 | 1 | $3.89 | |||
| 45 | SCREW 4X1/4 826/00115 | 1 | $1.43 | |||
| 46 | P CLIP 20mm DIA. 821/00306 | 1 | $6.70 | |||
| 47 | SET-SCREW M_6 L-_20mm(KANBAN) 1315/0205Z | 1 | $0.65 | |||
| 48 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 49 | LABEL-REFRIGERANT 817/03765 | 1 | $30.35 | |||
| 50 | DECAL 817/01073 | 1 | $2.41 | |||
| 51 | CONDENSOR BRACKET LH 331/35039 | 1 | $32.93 | |||
| 52 | CONDENSOR BRACKET RH 331/35040 | 1 | $20.27 | |||
| 53 | SET-SCREW M10 L-_16mm 1315/0403Z | 1 | $1.95 | |||
| 54 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
Showing 1 to 56 of 56 parts
Related Assemblies
-
DIAG-A3-70-1-401896 A3-70-1 AIR CONDITIONING KIT
View Diagram -

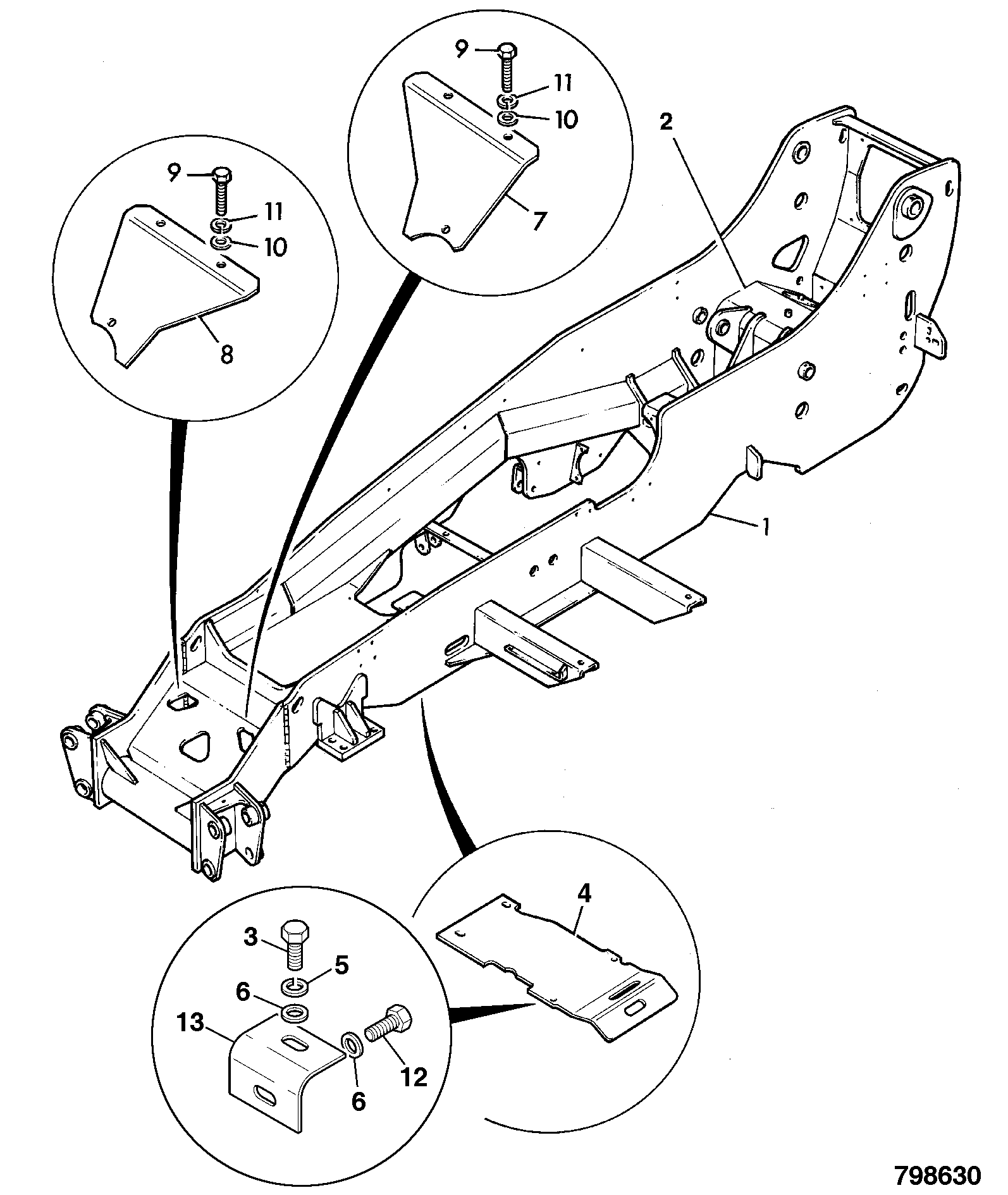

DIAG-B1-1-1-401896 B1-1-1 CHASSIS
