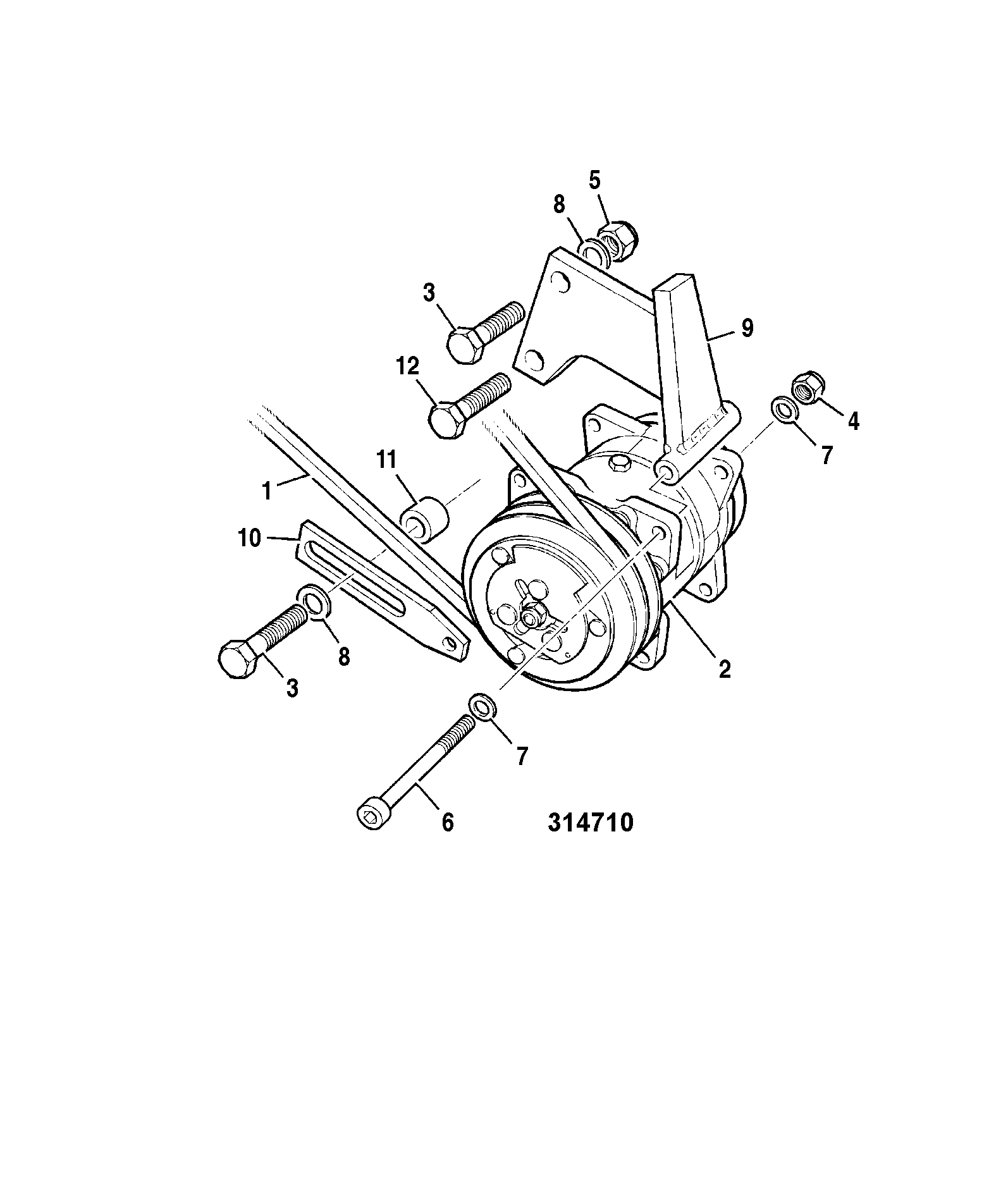

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| (W) (P) BINARY SWITCH 335/E4691 701/58726 | 1 | $172.21 | ||||
| (W) (Pre-P)-SET SCREW M6x45 1315/0211Z | 1 | $2.47 | ||||
| (W) P-CLIP - 25mm(KANBAN) 821/00329 | 1 | $6.83 | ||||
| (W) WASHER 5/16 MED PLAIN 1411/0002Z | 1 | $0.26 | ||||
| (Z) BELT DRIVE 01/130301 | 1 | $47.28 | ||||
| 1_4 TURN FASTENER 826/10532 | 1 | $65.46 | ||||
| ABI - AIRCON 332/D0577 160/13917 | 1 | $2,579.62 | ||||
| AIR CON. HOSE M16 TO No.6 649/51488 | 1 | $209.89 | ||||
| AIR CON. HOSE M16 TO No6 649/51782 | 1 | $195.29 | ||||
| AIR CON. HOSE No. 8 649/51485 | 1 | $283.03 | ||||
| AIR CON. HOSE No.10 649/51590 | 1 | $230.52 | ||||
| AIR CON. HOSE No.6 649/51489 | 1 | $328.00 | ||||
| AIR CON. HOSE No.6 TO M16 649/51487 | 1 | $150.31 | ||||
| AIR CON. HOSE No.8 649/51486 | 1 | $341.07 | ||||
| BOLT M16x70 1315/3716Z | 1 | $5.10 | ||||
| BOLT M16x75 1315/3717Z | 1 | $5.25 | ||||
| BOLT M6x40 1315/3210Z | 1 | $0.81 | ||||
| BRACKET COMPRESOR 335/05049 | 1 | $439.23 | ||||
| BRACKET HOSE GUIDE 162/02790 | 1 | $26.30 | ||||
| CAP SCREW M10x130 1391/3423 | 1 | $4.35 | ||||
| CLIP - WORMDRIVE 35/50mm(KANBAN). 2201/0009 | 1 | $3.89 | ||||
| COMPRESSOR 12V 123/04998 | 1 | $842.18 | ||||
| COMPRESSOR STAY 331/33464 | 1 | $54.24 | ||||
| CONDENSER aircon 30/925766 | 1 | $720.59 | ||||
| CONDENSOR BRACKET LH 331/35039 | 1 | $32.93 | ||||
| CONDENSOR BRACKET RH 331/35040 | 1 | $20.27 | ||||
| DECAL 817/01073 | 1 | $2.41 | ||||
| LABEL-REFRIGERANT 817/03765 | 1 | $30.35 | ||||
| LINK PRESSING 331/33282 | 1 | $20.50 | ||||
| NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | ||||
| NUT M16 STD SELF LOCK 1370/0603Z | 1 | $2.66 | ||||
| NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | ||||
| NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | ||||
| NYLON WASHER M8 123/04791 | 1 | $2.82 | ||||
| P CLIP 20mm DIA. 821/00306 | 1 | $6.70 | ||||
| PIVOT SPACER 829/30874 | 1 | $1.64 | ||||
| RECEIVER DRIER 162/03026 | 1 | $212.40 | ||||
| RETAINER 478/00288 | 1 | $26.12 | ||||
| SCREW 4X1/4 826/00115 | 1 | $1.43 | ||||
| SET SCREW M16x40 1315/0710Z | 1 | $8.92 | ||||
| SET SCREW M8x16 NYLON 1318/0303Z | 1 | $0.55 | ||||
| SET-SCREW M10 L-_16mm 1315/0403Z | 1 | $1.95 | ||||
| SET-SCREW M_6 L-_20mm(KANBAN) 1315/0205Z | 1 | $0.65 | ||||
| SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | ||||
| SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | ||||
| SPACER 829/30879 | 1 | $29.02 | ||||
| WA LH CONDENSER S/FRM 335/04992 | 1 | $149.39 | ||||
| WA LH PIVOT PLATE 335/04994 | 1 | $439.02 | ||||
| WA RECEIVER DRIER BRACKET 335/08422 | 1 | $240.30 | ||||
| WA RH CONDR S/FRM 335/04985 | 1 | $149.39 | ||||
| WA RH PIVOT PLATE 335/04993 | 1 | $439.35 | ||||
| WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | ||||
| WASHER M16 PLAIN 1420/0011Z | 1 | $3.08 | ||||
| WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | ||||
| WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | ||||
| A | (Z) AIR CONDITIONER KIT(DARWIN) 980/89525 | 1 | $3,182.62 | |||
Showing 1 to 56 of 56 parts
