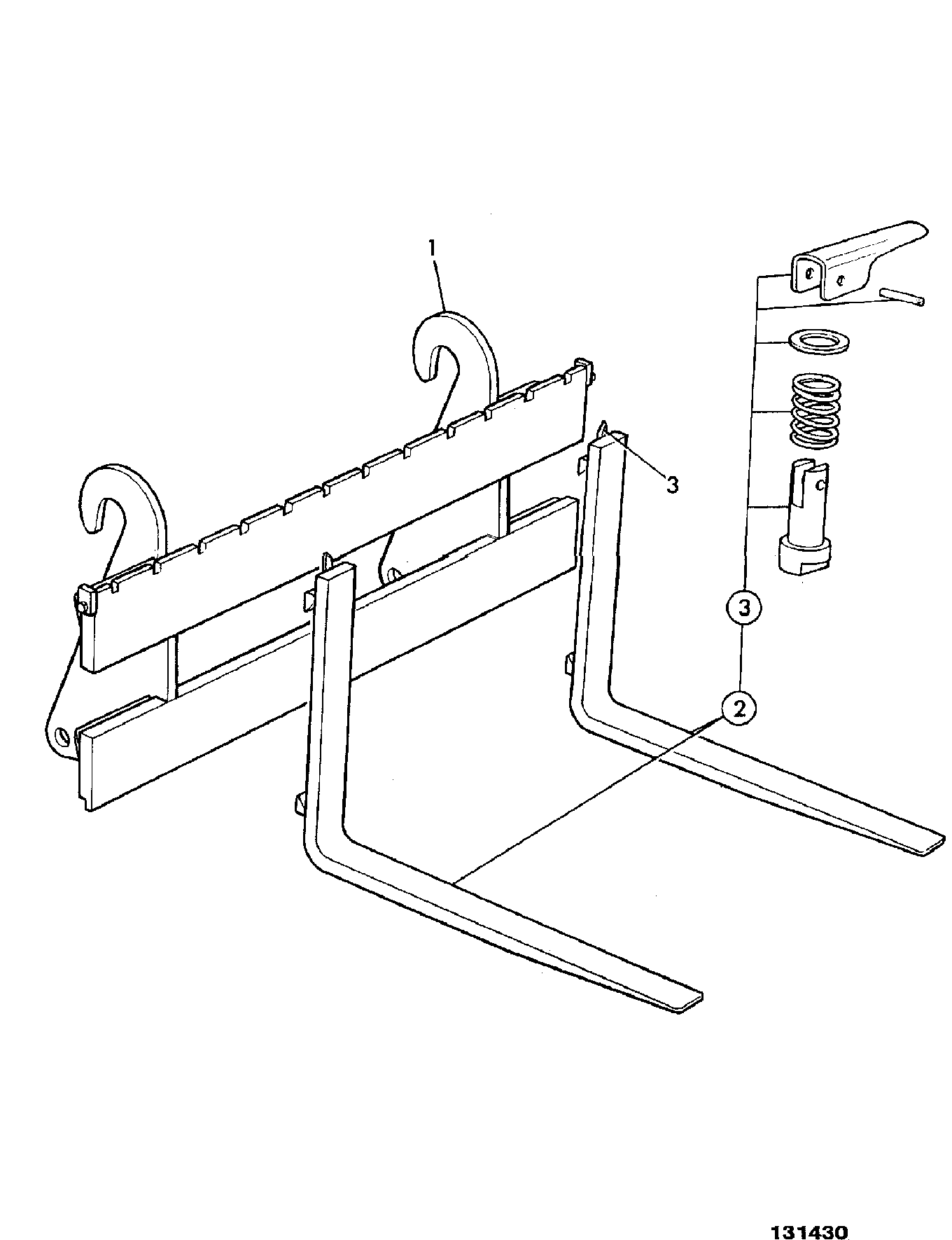

A3-6-2 FORK RETENTION KITS INDUSTRIAL FORKS Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	KIT FORK RETENTION 993/51100	1	AVAILABLE TO ORDER	$78.09	Quantity
2	PIN LOCATING 547/01501	1	AVAILABLE TO ORDER	$77.38	Quantity
3	SPIROL PIN MBK 826/00498	1	AVAILABLE TO ORDER	$4.35	Quantity
4	SPRING COMPRESSION 814/00145	1	AVAILABLE TO ORDER	$21.97	Quantity

Showing 1 to 4 of 4 parts

DIAG-A3-6-1-400547 A3-6-1 FORK FRAMES & FORKS INDUSTRIAL
View Diagram
DIAG-A3-7-1-400547 A3-7-1 MUCK FORK
View Diagram

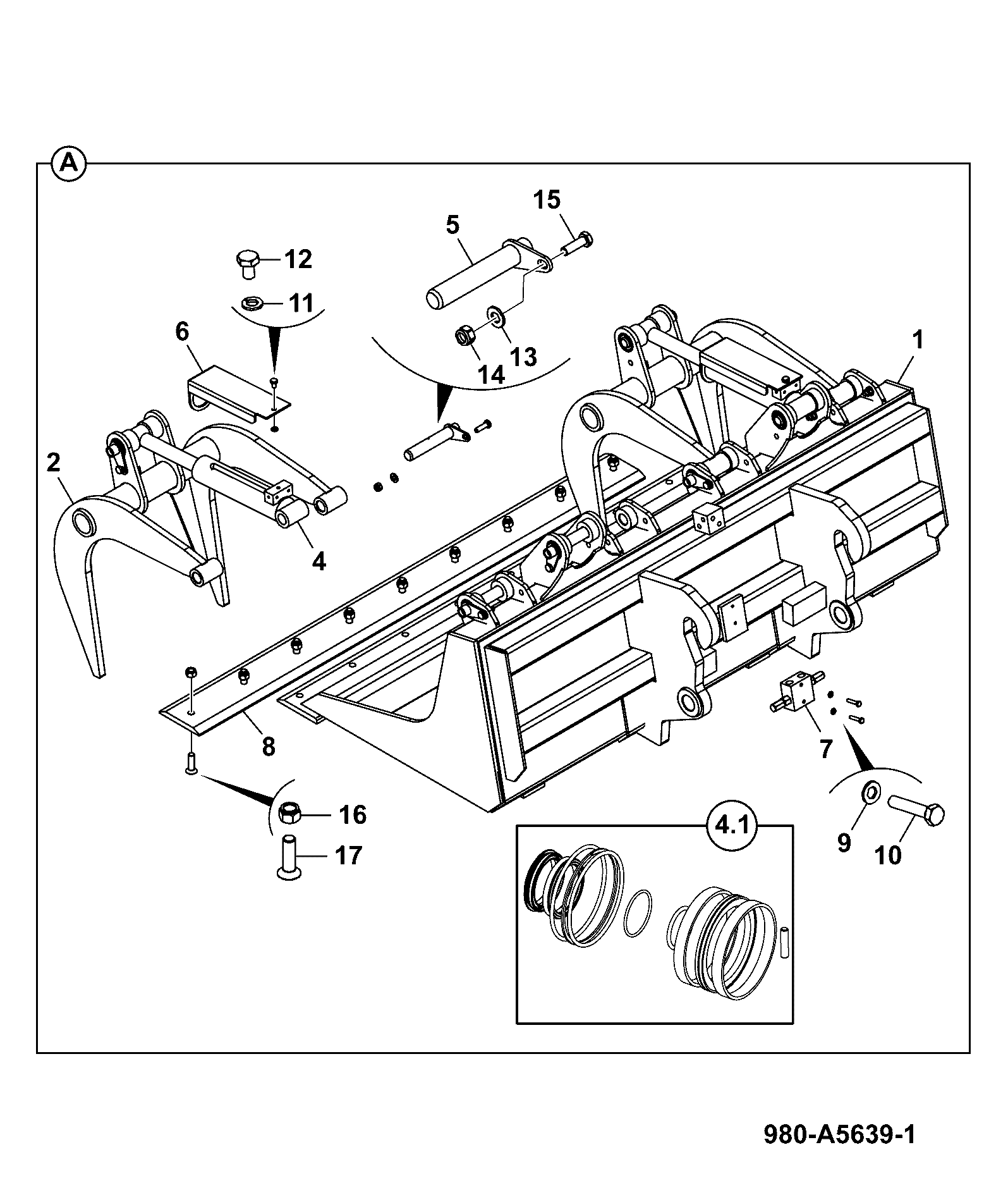

DIAG-A3-5-2-400547 A3-5-2 GRAB INDUSTRIAL GRAPPLE 1680mm
View Diagram

Previous Assembly DIAG-A3-6-1-400547 A3-6-1 FORK FRAMES & FORKS INDUSTRIAL Next Assembly DIAG-A3-7-1-400547 A3-7-1 MUCK FORK
