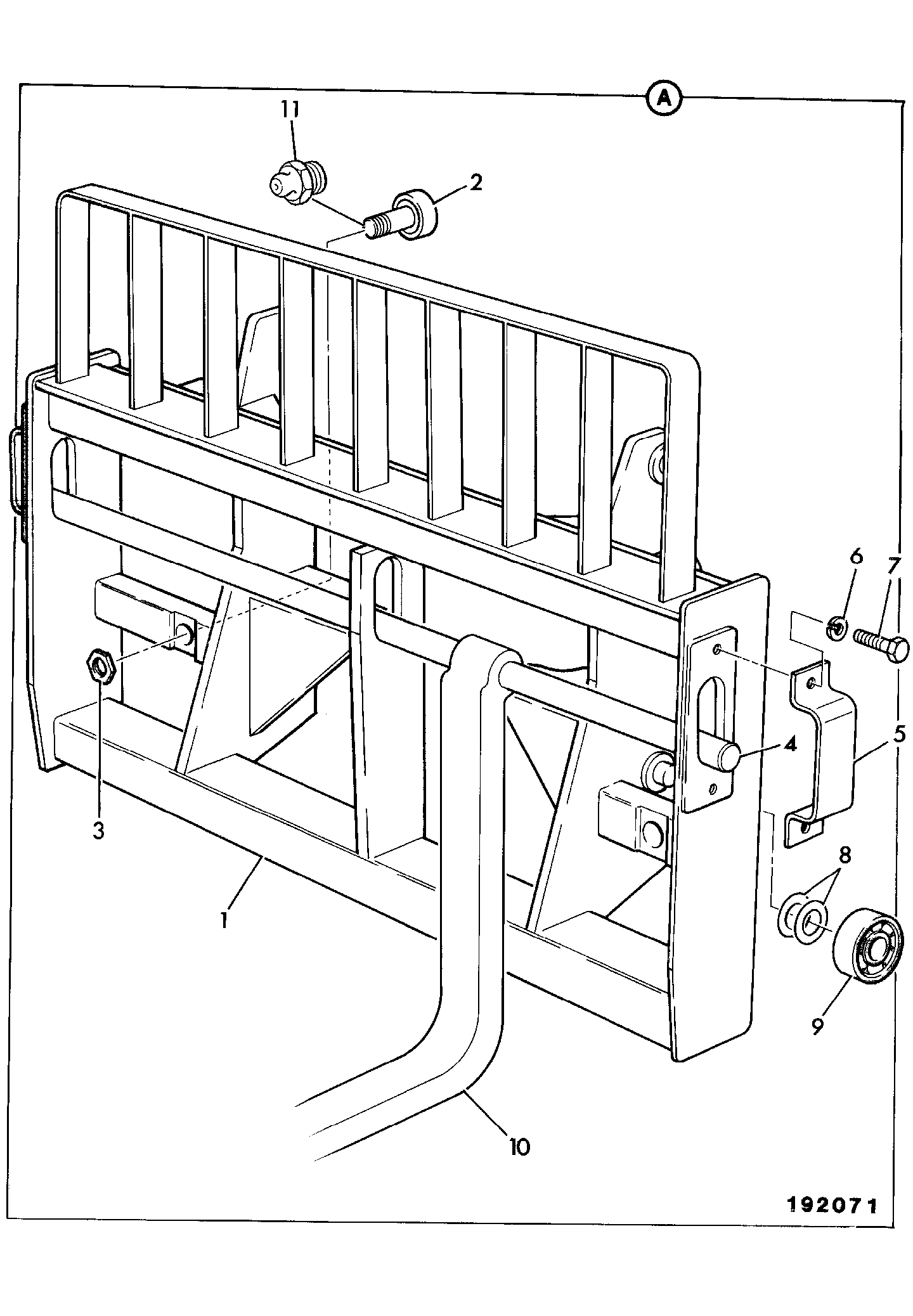

A3-50-1 FORKS Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	100x50x1067mm FORKS CL 3 718 H/H 547/07900 333/T0068	1	AVAILABLE TO ORDER	$765.99	Quantity
2	KIT, FORK RETENTION 547/03401 993/45300	1	AVAILABLE TO ORDER	$130.88	Quantity

Showing 1 to 2 of 2 parts
