Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| HOSE 629/95044 | 1 | $44.23 | ||||
| 3 | LATCH 980/46501 | 1 | $920.34 | |||
| 4 | PISTON 980/46502 | 1 | $126.37 | |||
| 6 | SPRING 814/00379 | 1 | $404.53 | |||
| 8 | ADAPTOR 816/45004 | 1 | $43.05 | |||
| 9 | CAPSCREW 826/01509 | 1 | $21.74 | |||
| 10 | SHIM 823/00539 | 1 | $34.78 | |||
| 11 | GLAND SEAL. 2411/0502 | 1 | $53.00 | |||
| 12 | Seal Wiper 30MM 2411/8602 2411/8602P | 1 | $4.03 | |||
| 13 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 14 | LOCK PIN 980/46503 | 1 | $51.03 | |||
| 15 | PIVOT PIN 911/28600 | 1 | $828.17 | |||
| 16 | SET SCREW M16x40 1315/0710Z | 1 | $8.92 | |||
| 17 | WASHER 5/8 LARGE 1412/0007Z | 1 | $5.75 | |||
| 18 | SPACER 830/00599 | 1 | $2.40 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-

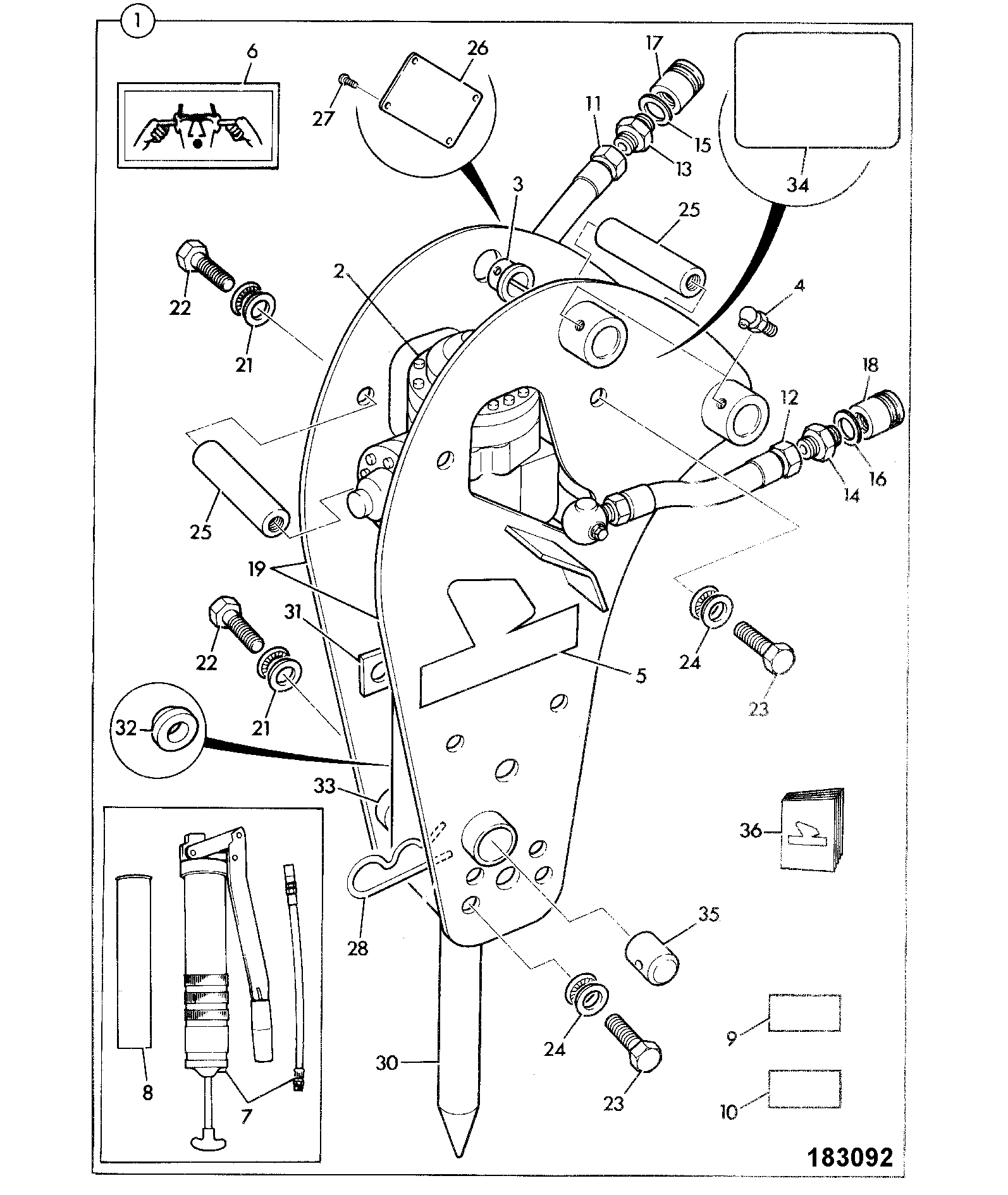

DIAG-A3-3-2-394266 A3-3-2 BREAKER HAMMERMASTER JCB 260 MK2 WITH SIDE PLATES
View Diagram -
DIAG-A3-4-2-394266 A3-4-2 QUICKHITCH ATTACHMENT BACKHOE
View Diagram -
DIAG-A3-4-3-394266 A3-4-3 QUICKHITCH ATTACHMENT,BACKHOE WITH BOW SHACKLE
View Diagram
