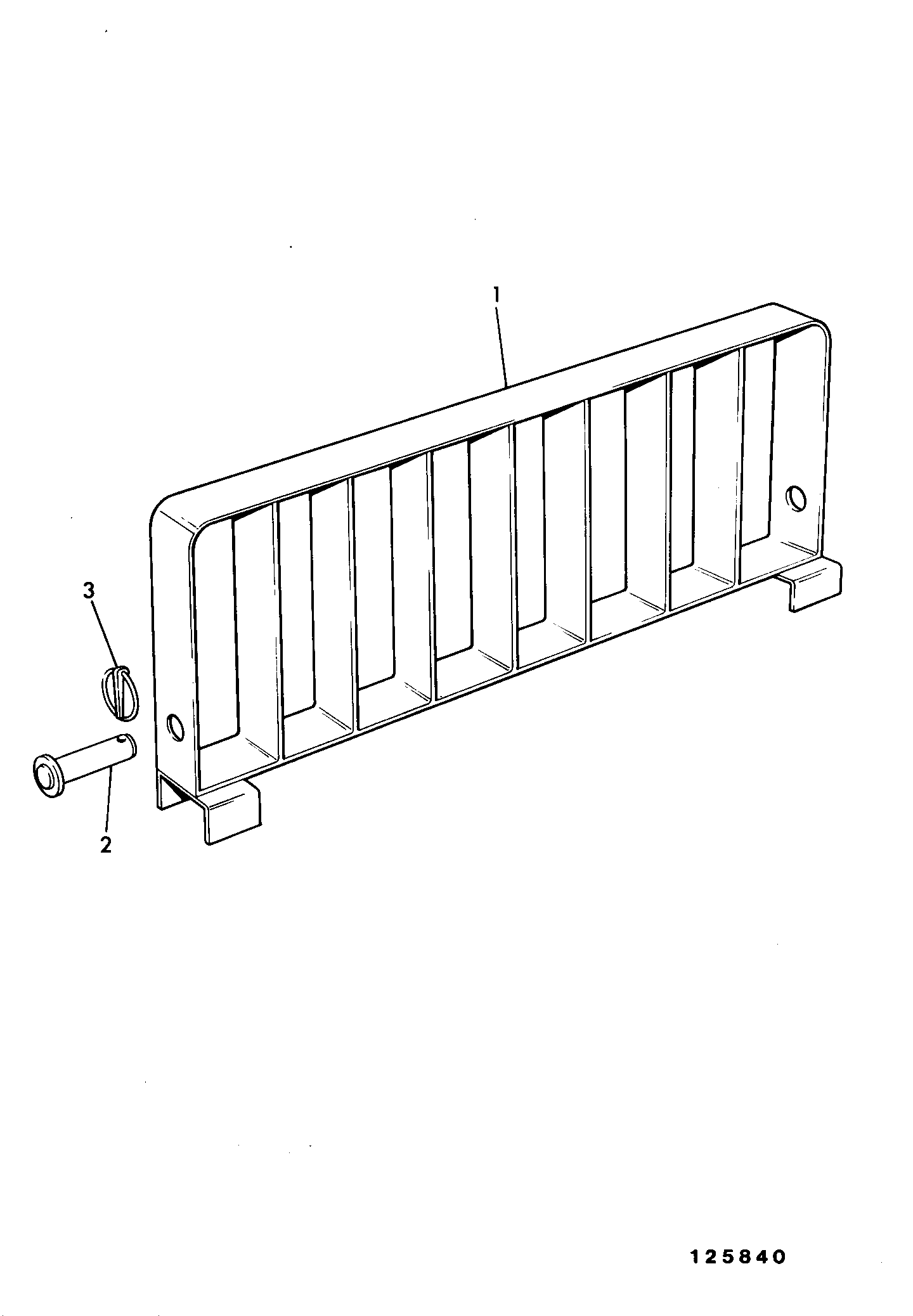

A3-39-1 GUARD Q/FIT CARRIAGE Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	GUARD 545/44800	1	AVAILABLE TO ORDER	$879.50	Quantity
2	BONNET STOP 828/00106	1	AVAILABLE TO ORDER	$7.84	Quantity

Showing 1 to 2 of 2 parts

DIAG-A3-38-1-400744 A3-38-1 GUARD Q/FIT CARRIAGE
View Diagram
DIAG-A3-40-1-400744 A3-40-1 FORK AND FRAME WITH PIN
View Diagram
DIAG-A3-37-1-400744 A3-37-1 FORK RETAINER ASSEMBLY
View Diagram

Previous Assembly DIAG-A3-38-1-400744 A3-38-1 GUARD Q/FIT CARRIAGE Next Assembly DIAG-A3-40-1-400744 A3-40-1 FORK AND FRAME WITH PIN
