A3-36-2 FORK RETENTION KITS INDUSTRIAL FORKS Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	KIT FORK RETENTION 993/51100	1	AVAILABLE TO ORDER	$78.09	Quantity
1	KIT, FORK RETENTION 547/03401 993/45300	1	AVAILABLE TO ORDER	$130.88	Quantity
2	PIN LOCATING 547/01501	1	AVAILABLE TO ORDER	$77.38	Quantity
3	SPIROL PIN MBK 826/00498	1	AVAILABLE TO ORDER	$4.35	Quantity
4	SPRING COMPRESSION 814/00145	1	AVAILABLE TO ORDER	$21.97	Quantity

Showing 1 to 5 of 5 parts

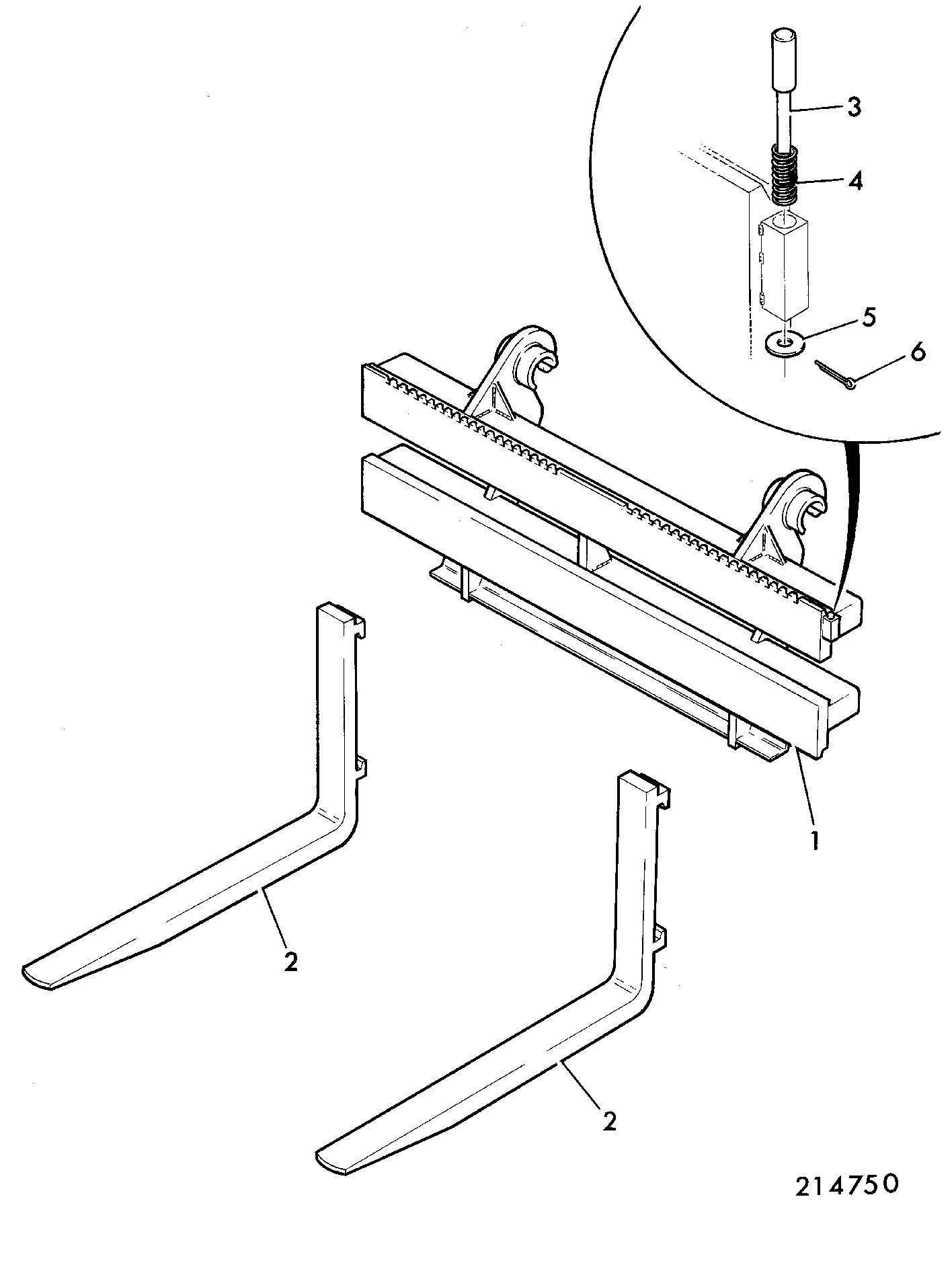

DIAG-A3-35-1-404518 A3-35-1 FORK FRAME AND TINES
View Diagram

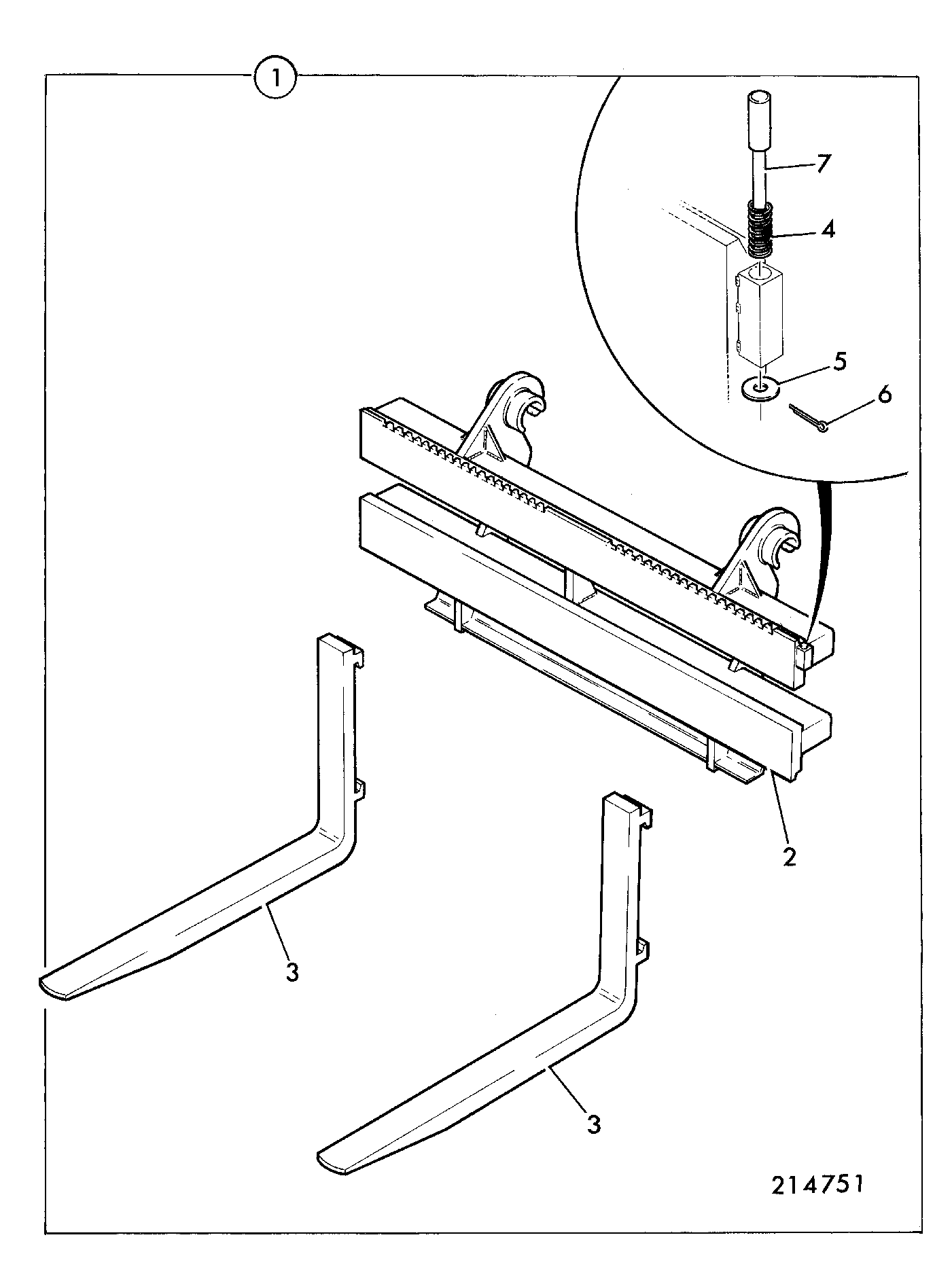

DIAG-A3-38-1-404518 A3-38-1 FORK AND FRAME CLASS 3 STANDARD LIFT
View Diagram

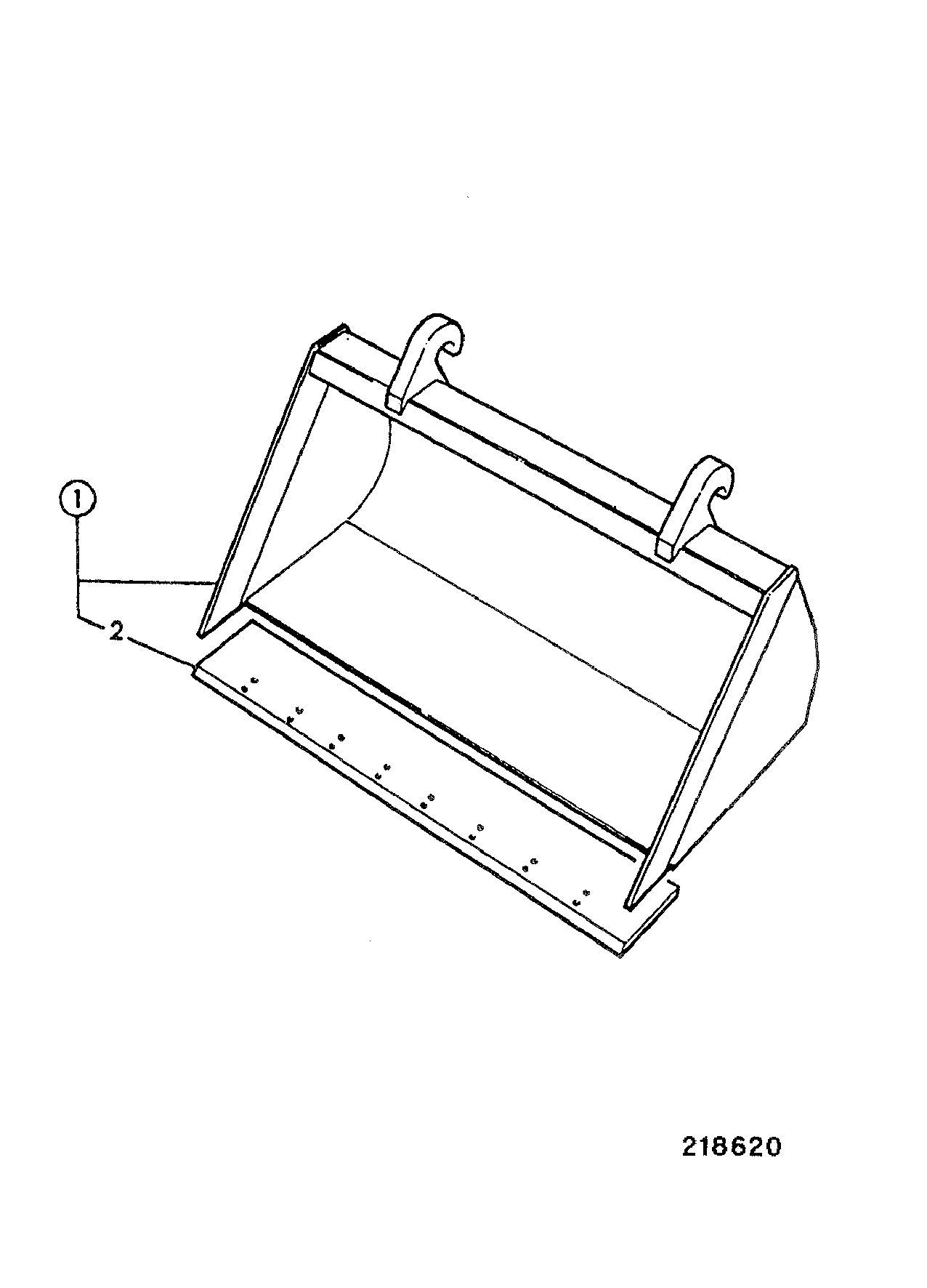

DIAG-A3-33-1-404518 A3-33-1 SHOVEL 1.2 CU.M. 2286MM (7'6") WIDE
View Diagram

Previous Assembly DIAG-A3-35-1-404518 A3-35-1 FORK FRAME AND TINES Next Assembly DIAG-A3-38-1-404518 A3-38-1 FORK AND FRAME CLASS 3 STANDARD LIFT
