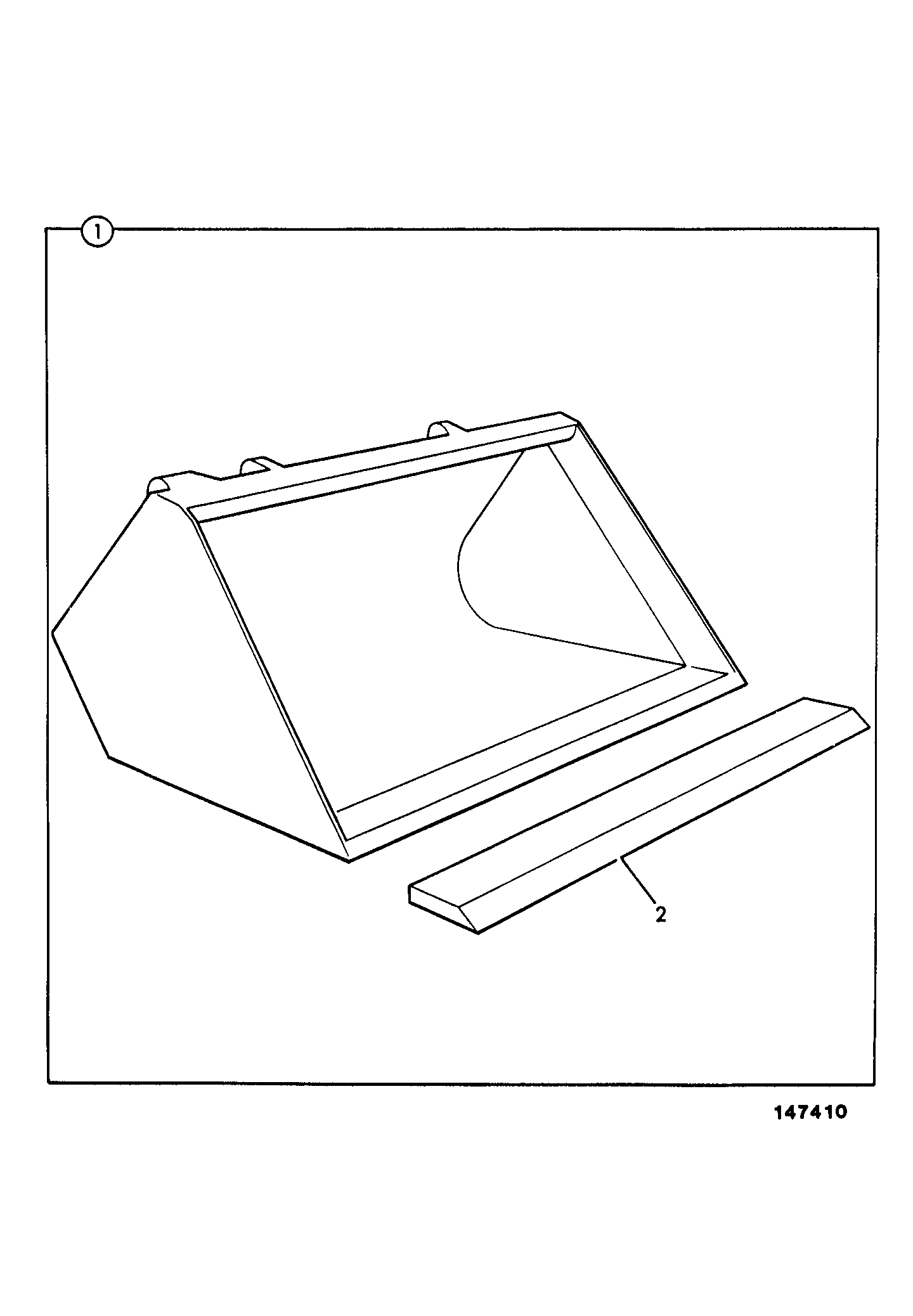

A3-33-1 SHOVEL 1.2CU.M. 2286MM (7’6″) WIDE Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	GA - 1.2M3 SHOVEL 547/37600	1	AVAILABLE TO ORDER	$4,611.51	Quantity
2	TOE PLATE 547/37701	1	AVAILABLE TO ORDER	$912.45	Quantity

Showing 1 to 2 of 2 parts
