Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BRKT R/H DECK FNT P100 331/25186 | 1 | $373.71 | ||||
| 2 | HINGE BRACKET LEFT 478/00686 | 1 | $174.23 | |||
| 3 | BRKT:RH REAR DECK HINGE 478/00695 | 1 | $174.23 | |||
| 4 | CAP BLANKING 835/00141 | 1 | $3.33 | |||
| 5 | HEX-SCREW M16 L-_45mm LG 1315/0711D | 1 | $7.72 | |||
| 5 | SET SCREW M16x45 1315/0711Z | 1 | $5.78 | |||
| 8 | BRKT: L/H DECK FNT P100 331/21856 331/25187 | 1 | $362.10 | |||
| 9 | BOLT M16x65 1315/3715D | 1 | $2.86 | |||
| 10 | SET SCREW M16x50 1315/0712Z | 1 | $12.55 | |||
| 10 | SET-SCREW M16 L-_50mm 1315/0712D | 1 | $4.02 | |||
| 11 | WASHER M16 PLAIN 1420/0011D | 1 | $0.91 | |||
| 11 | WASHER M16 PLAIN 1420/0011Z | 1 | $3.08 | |||
| 12 | M16 LOCK NUT 1370/0603D | 1 | $2.62 | |||
| 12 | NUT M16 STD SELF LOCK 1370/0603Z | 1 | $0.00 | |||
| 13 | PIN PIVOT 478/00734 | 1 | $18.50 | |||
| 14 | LYNCH PIN 826/01278 | 1 | $0.00 | |||
| 15 | LABEL 'NO PASSENGE 817/05020 | 1 | $19.06 | |||
| 16 | RIVET 826/01237 | 1 | $0.27 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-

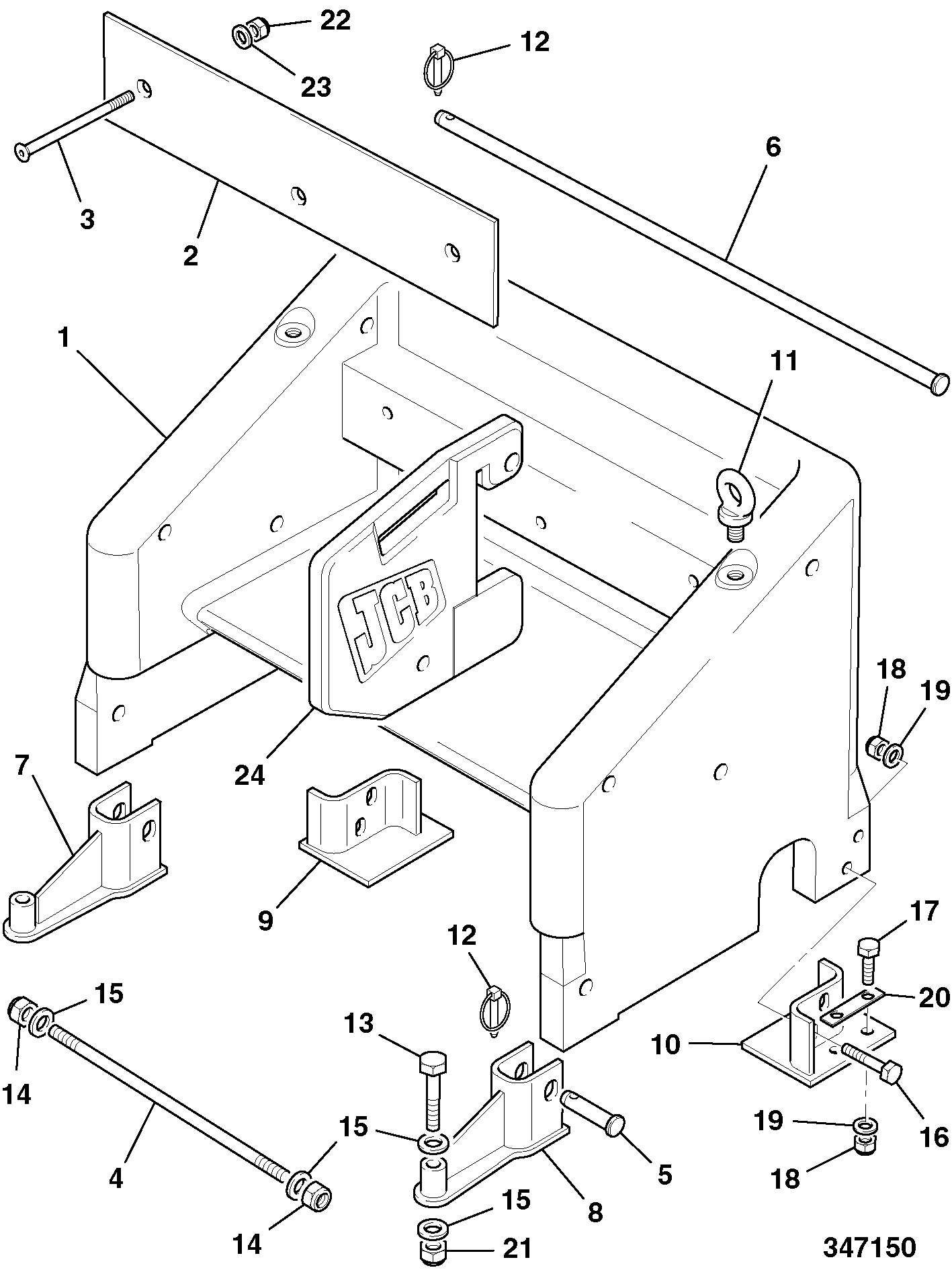

DIAG-A3-30-2-393531 A3-30-2 REAR DECK WEIGHT CARRIER
View Diagram -

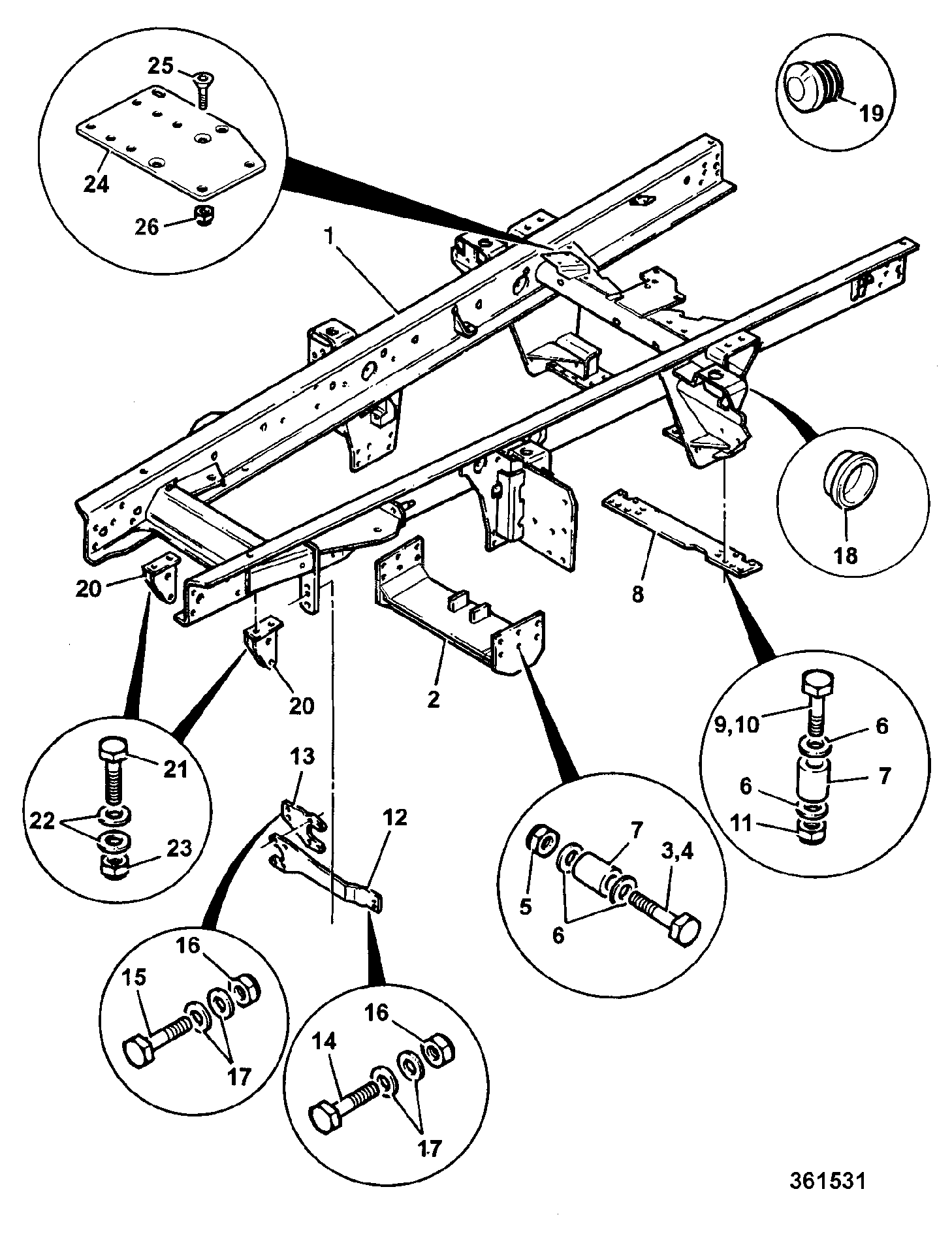

DIAG-B1-1-1-393531-10472916 B1-1-1 CHASSIS & FITTINGS
View Diagram -
DIAG-A3-30-1-393531-10472911 A3-30-1 REAR DECK
View Diagram
