A3-3-3 FORK FRAME INDUSTRIAL Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	INDUSTRIAL FORK FRAME 514/01500	1	AVAILABLE TO ORDER	$4,267.93	Quantity
2	100x50x1067mm FORKS CL 3 718 H/H 547/07900 333/T0068	1	AVAILABLE TO ORDER	$765.99	Quantity
3	KIT, FORK RETENTION 547/03401 993/45300	1	AVAILABLE TO ORDER	$130.88	Quantity

Showing 1 to 3 of 3 parts

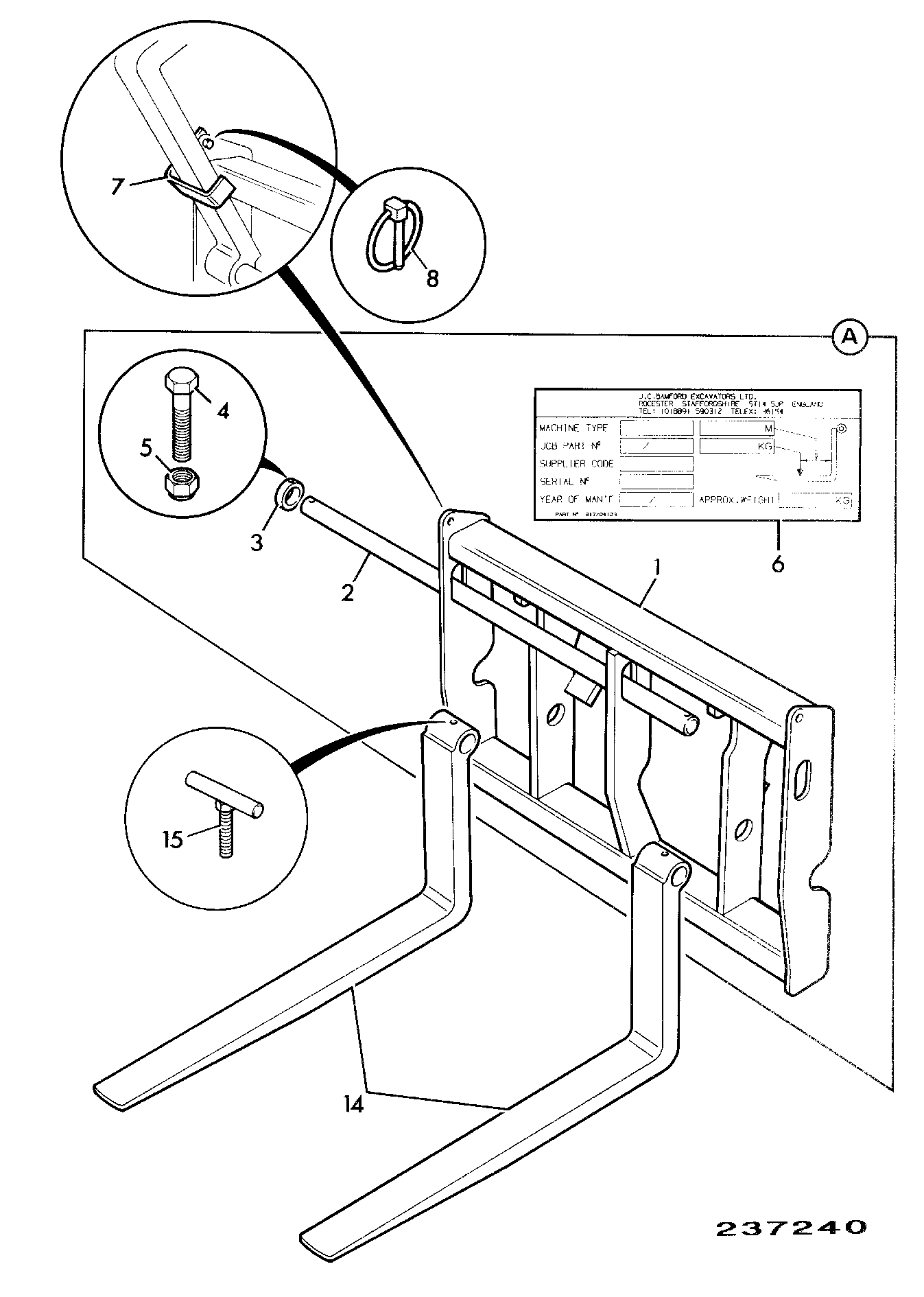

DIAG-A3-3-2-400577-12836444 A3-3-2 FORK FRAME & FORKS 1200MM LONG
View Diagram
DIAG-A3-3-2-400577 A3-3-2 FORK FRAME & FORKS 1200MM LONG
View Diagram
DIAG-A3-3-5-400577 A3-3-5 FORK RETENTION KIT
View Diagram

Previous Assembly DIAG-A3-3-2-400577-12836444 A3-3-2 FORK FRAME & FORKS 1200MM LONG Next Assembly DIAG-A3-3-5-400577 A3-3-5 FORK RETENTION KIT
