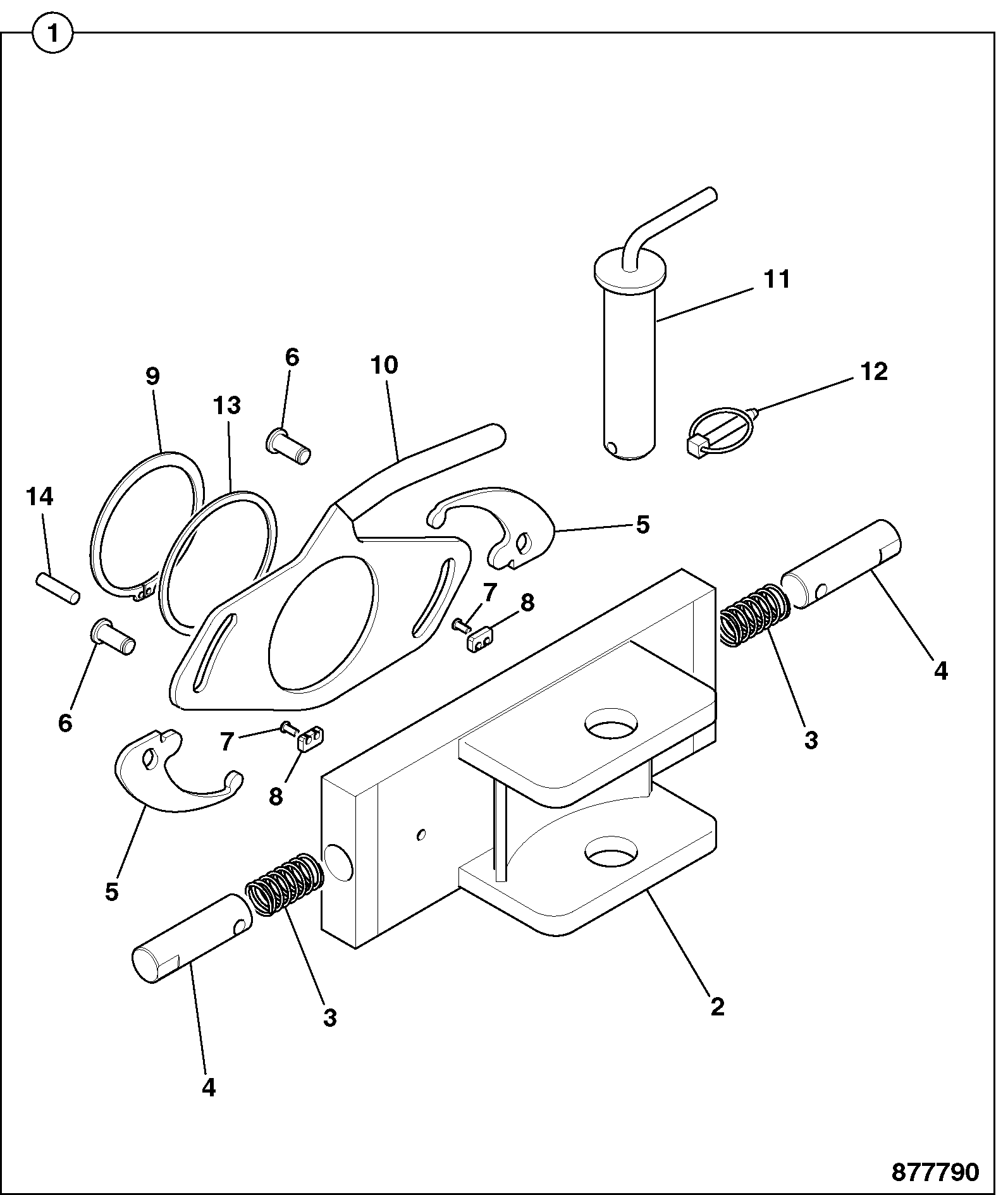

A3-29-2 TRAILER COUPLING SCHARMULLER D2 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Coupling 331/29336	1	AVAILABLE TO ORDER	$1,317.38	Quantity
3	Spring 331/65145	1	AVAILABLE TO ORDER	$36.81	Quantity
4	Pin locking 331/63439	1	AVAILABLE TO ORDER	$120.56	Quantity
5	Lever 331/65147	1	AVAILABLE TO ORDER	$385.38	Quantity
6	Pin locking 331/63440	1	AVAILABLE TO ORDER	$53.71	Quantity
7	Pin 331/65148	1	AVAILABLE TO ORDER	$32.45	Quantity
9	Circlip 331/65149	1	AVAILABLE TO ORDER	$50.60	Quantity
