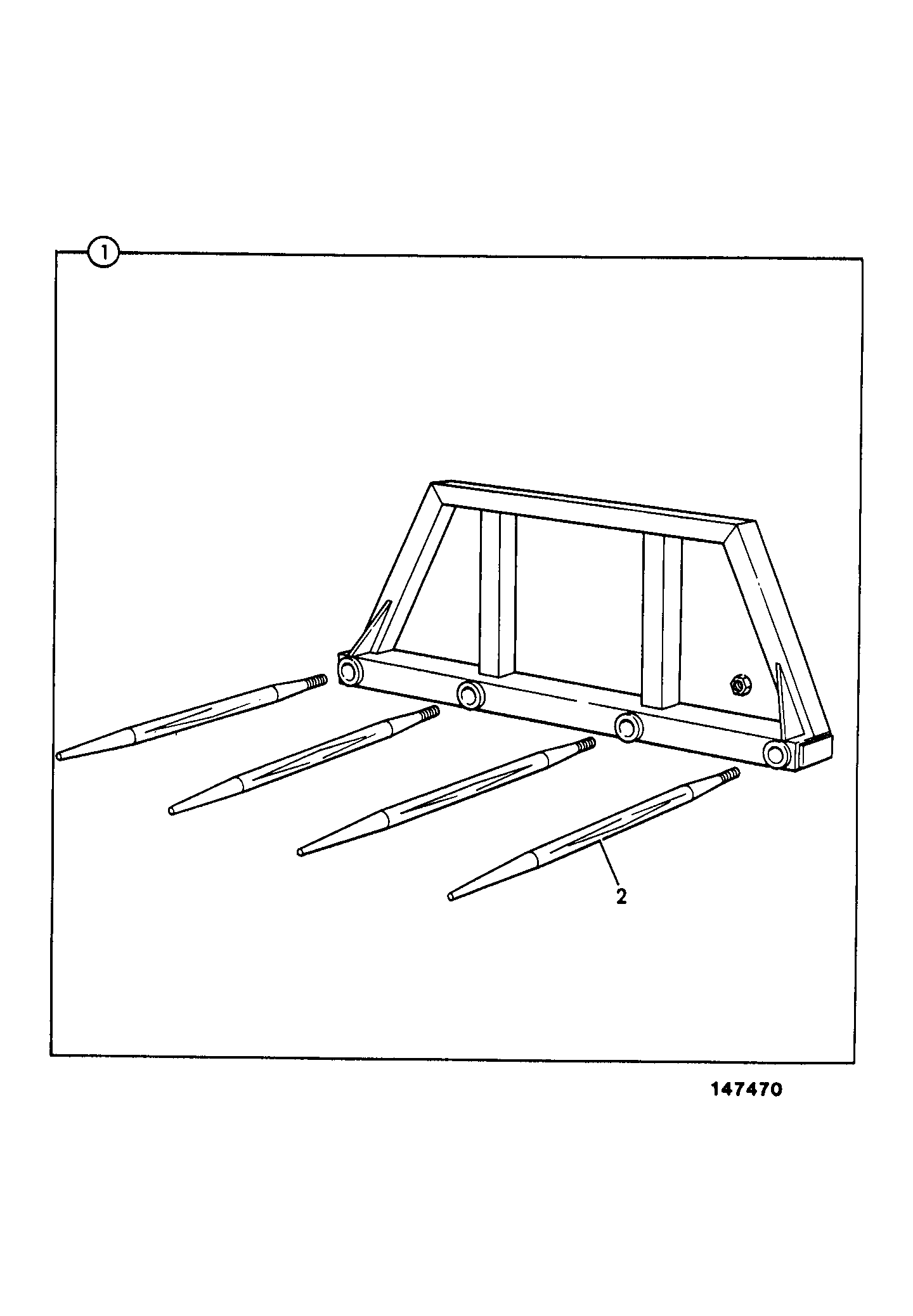

A3-21-2 FORK,ROUND BALE Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	SCREW 4X1/4 826/00115	1	AVAILABLE TO ORDER	$1.43	Quantity
1	FORK-ROUND BALE 980/25200	1	AVAILABLE TO ORDER	$1,812.91	Quantity
2	FORK TINE -LONG 545/44203	1	AVAILABLE TO ORDER	$559.68	Quantity
3	SMALL TINE FORK 545/44202	1	AVAILABLE TO ORDER	$620.50	Quantity

Showing 1 to 4 of 4 parts

DIAG-A3-21-1-400732 A3-21-1 FORK,ROUND BALE 2 BALE CAPACITY
View Diagram

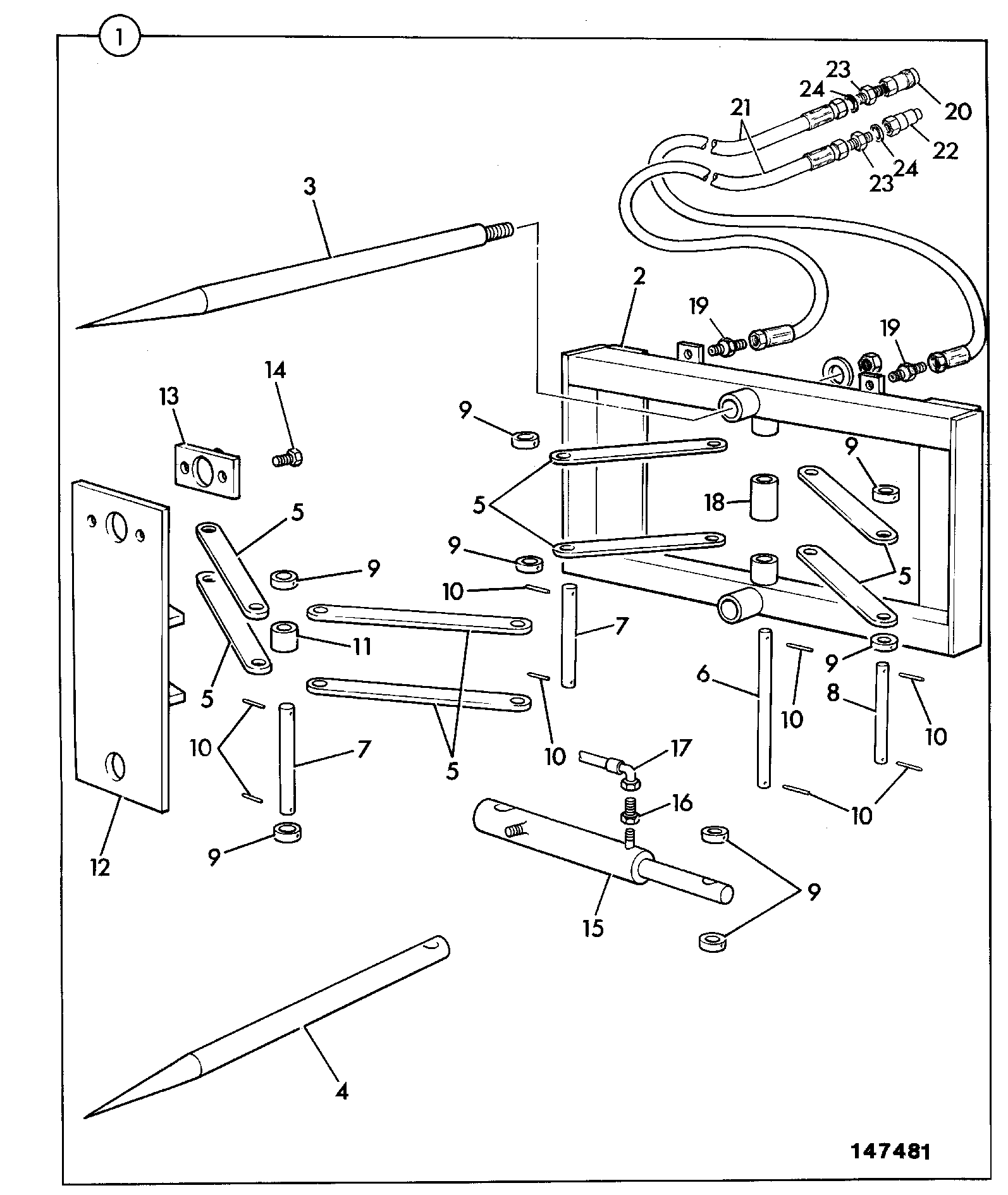

DIAG-A3-22-1-400732 A3-22-1 FORK,ROUND BALE WITH PUSH OFF
View Diagram
DIAG-A3-22-2-400732 A3-22-2 WRAPPED,BALE CLAMP
View Diagram

Previous Assembly DIAG-A3-21-1-400732 A3-21-1 FORK,ROUND BALE 2 BALE CAPACITY Next Assembly DIAG-A3-22-1-400732 A3-22-1 FORK,ROUND BALE WITH PUSH OFF
