Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| KIT-SEAL 983/10325 | 1 | $236.25 | ||||
| 1 | LABEL - READ THE MANUAL 817/02742 | 1 | $21.40 | |||
| 4 | LEG 980/40937 | 1 | $501.82 | |||
| 5 | PIN 980/40938 | 1 | $40.68 | |||
| 6 | PIN 980/40939 | 1 | $4.80 | |||
| 7 | ROLLER 980/40940 | 1 | $409.59 | |||
| 8 | BEARING 980/40941 | 1 | $60.56 | |||
| 12 | CLAMP 980/40944 | 1 | $39.48 | |||
| 13 | STRIP CLAMPING 980/40945 | 1 | $274.82 | |||
| 14 | BUCKET RUBBER 980/40949 | 1 | $203.72 | |||
| 16 | PIVOT 980/40951 | 1 | $127.97 | |||
| 17 | LINK-LH 980/40953 | 1 | $1,131.39 | |||
| 17 | LINK-RH 980/40952 | 1 | $1,009.33 | |||
| 20 | RAM PIN 980/40956 | 1 | $138.75 | |||
| 21 | COLLAR 980/40957 | 1 | $36.41 | |||
| 22 | LATCH 980/40958 | 1 | $322.88 | |||
| 24 | NUT M16 STD SELF LOCK 1370/0603Z | 1 | $2.66 | |||
| 26 | WHEEL 980/40960 980/32702 | 1 | $391.70 | |||
| 27 | BUCKET-CASTOR 980/40961 | 1 | $1,095.78 | |||
| 28 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 29 | GREASE NIPPLE G1/8A 90DEG 1450/1001 | 1 | $3.38 | |||
| 30 | SCREW PIPE CLAMP 980/40962 | 1 | $3.30 | |||
| 31 | BOLT M8x45 1315/3311Z | 1 | $2.08 | |||
| 32 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | |||
| 33 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 34 | SET SCREW M8x16 1315/0303Z | 1 | $2.03 | |||
| 35 | SET-SCREW M_6 L-30mm 1315/0208Z | 1 | $0.33 | |||
| 36 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 37 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 38 | SET-SCREW M12 L-_30mm 1315/0508Z | 1 | $1.75 | |||
| 39 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 40 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $2.11 | |||
| 41 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 42 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 43 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 44 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 45 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $0.65 | |||
| 46 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | |||
Showing 1 to 38 of 38 parts
Related Assemblies
-

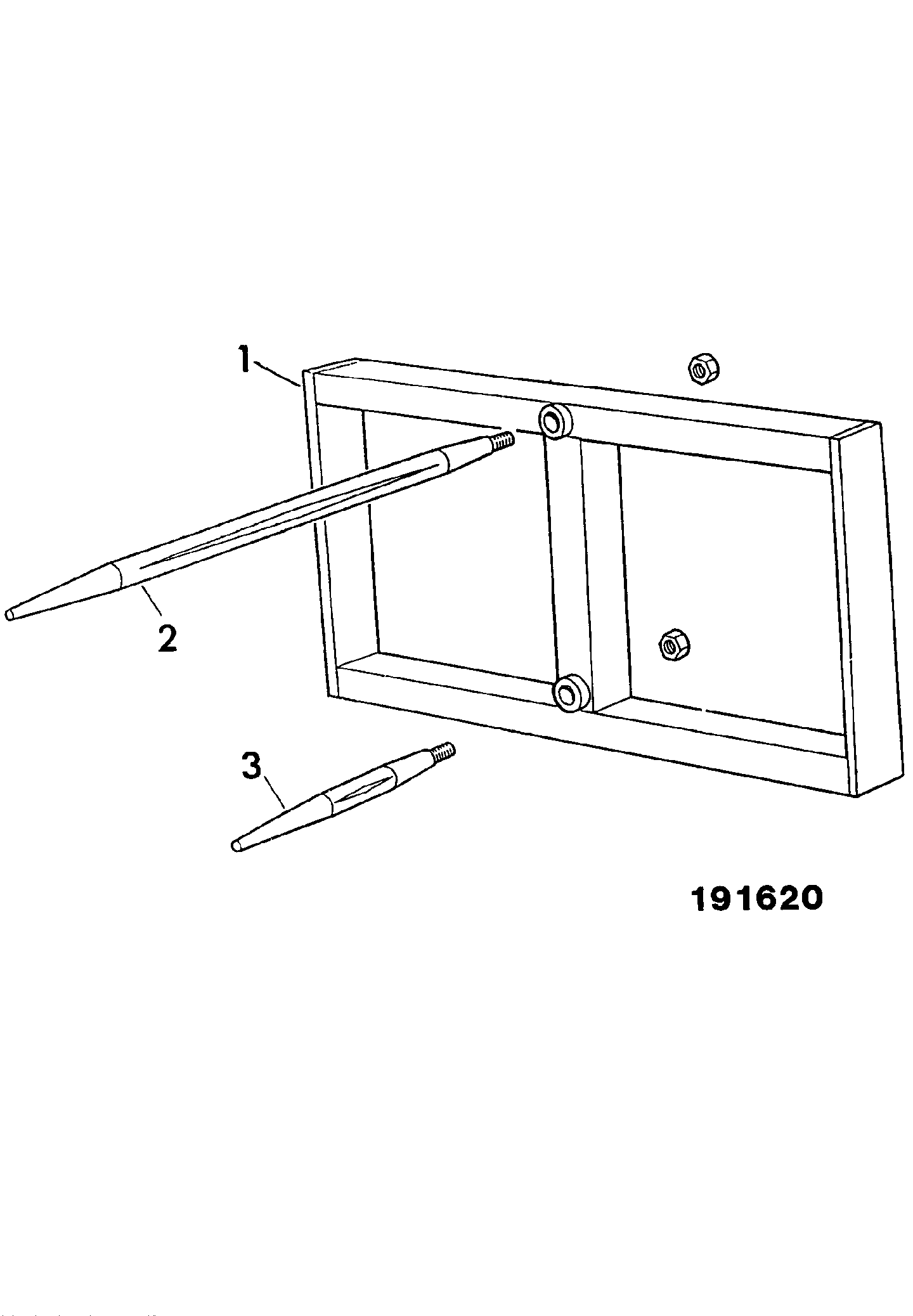

DIAG-A3-16-1-400547 A3-16-1 FORK,ROUND BALE
View Diagram -
DIAG-A3-20-2-400547 A3-20-2 SWEEPER COLLECTOR DIRTMASTER RH DRIVE
View Diagram -

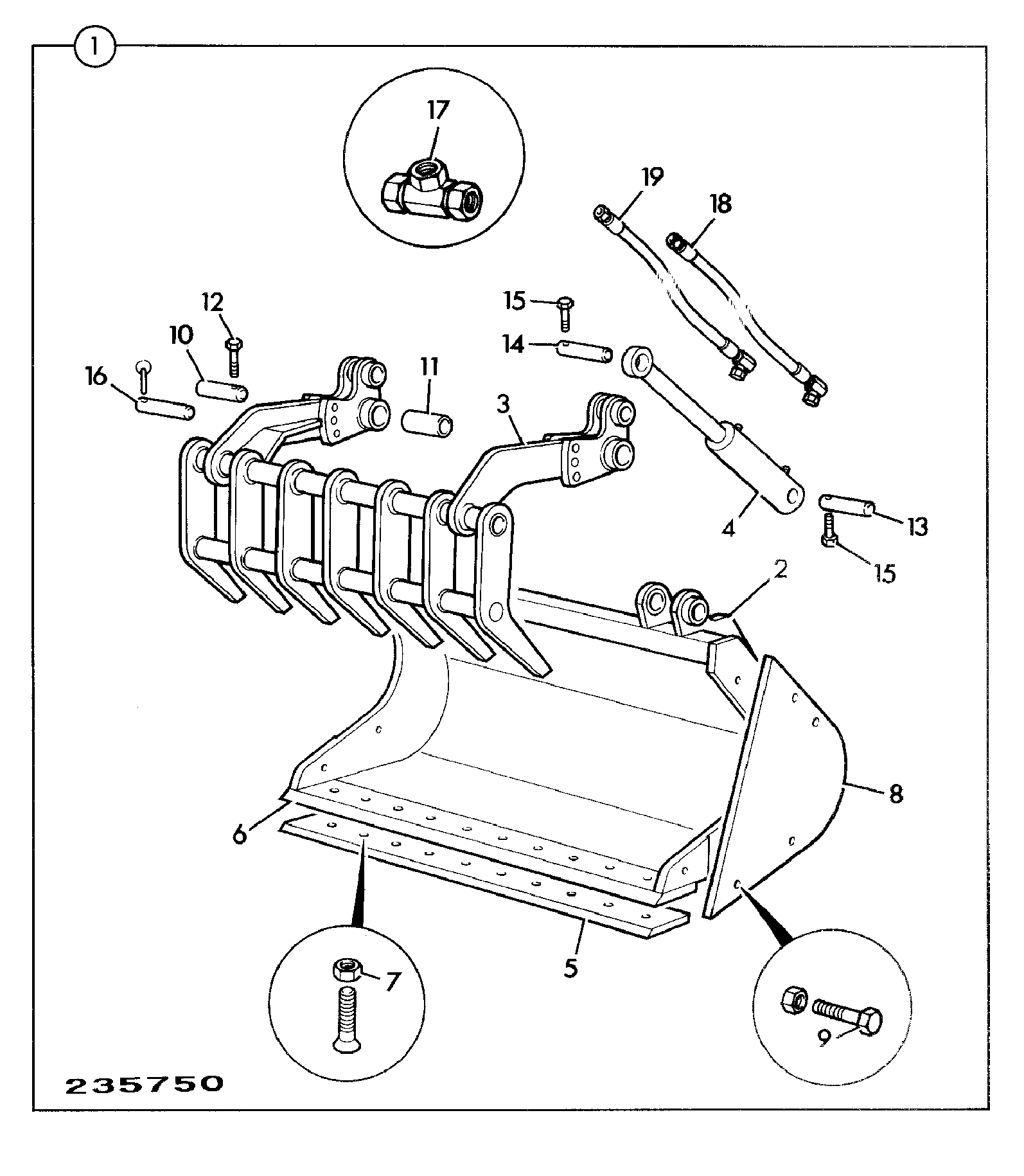

DIAG-A3-15-1-400547 A3-15-1 MULTIBUCKET
View Diagram
