A3-2-5 FORK RETENTION KITS INDUSTRIAL FORKS Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	KIT FORK RETENTION 993/51100	1	AVAILABLE TO ORDER	$78.09	Quantity
1	KIT, FORK RETENTION 547/03401 993/45300	1	AVAILABLE TO ORDER	$130.88	Quantity
2	PIN LOCATING 547/01501	1	AVAILABLE TO ORDER	$77.38	Quantity
3	SPIROL PIN MBK 826/00498	1	AVAILABLE TO ORDER	$4.35	Quantity
4	SPRING COMPRESSION 814/00145	1	AVAILABLE TO ORDER	$21.97	Quantity

Showing 1 to 5 of 5 parts

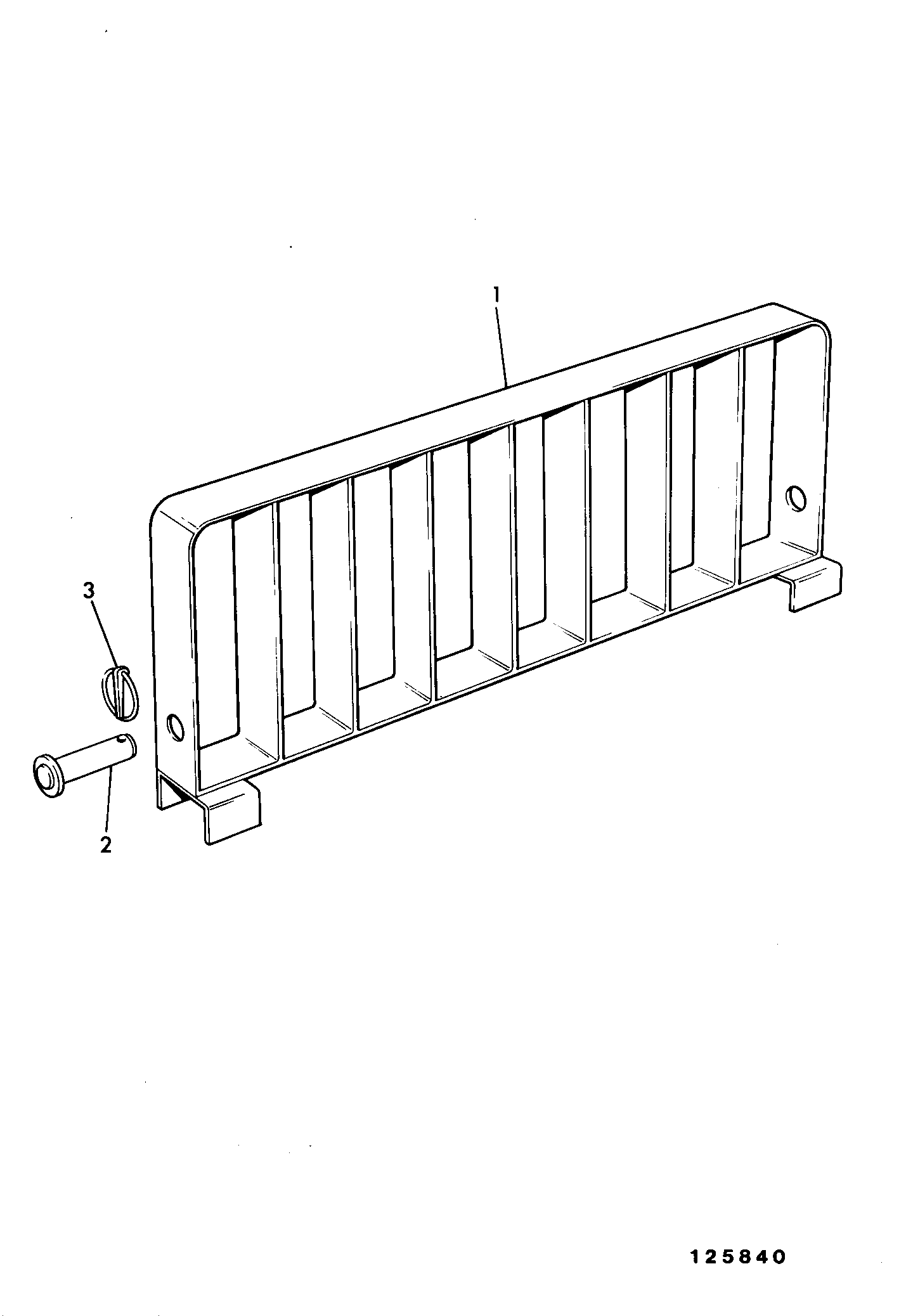

DIAG-A3-3-1-400841 A3-3-1 GUARD, LOAD 'Q'FIT CARRIAGE
View Diagram
DIAG-A3-1-1-400841 A3-1-1 CARRIAGE 'Q'FIT
View Diagram

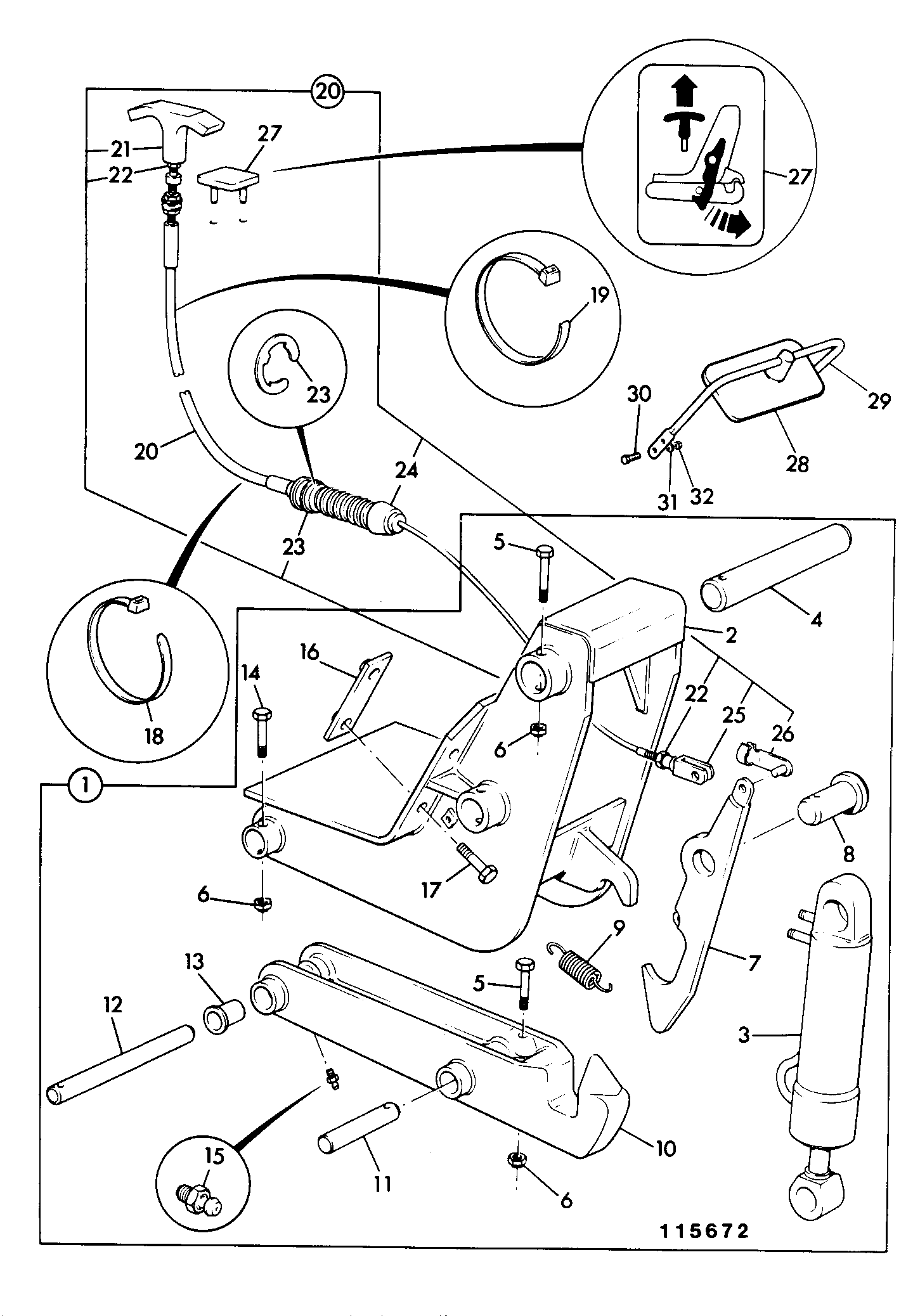

DIAG-A3-4-1-400841 A3-4-1 TOW HITCH, HYDRAULIC INSTALLATION
View Diagram

Previous Assembly DIAG-A3-1-1-400841 A3-1-1 CARRIAGE 'Q'FIT Next Assembly DIAG-A3-3-1-400841 A3-3-1 GUARD, LOAD 'Q'FIT CARRIAGE
