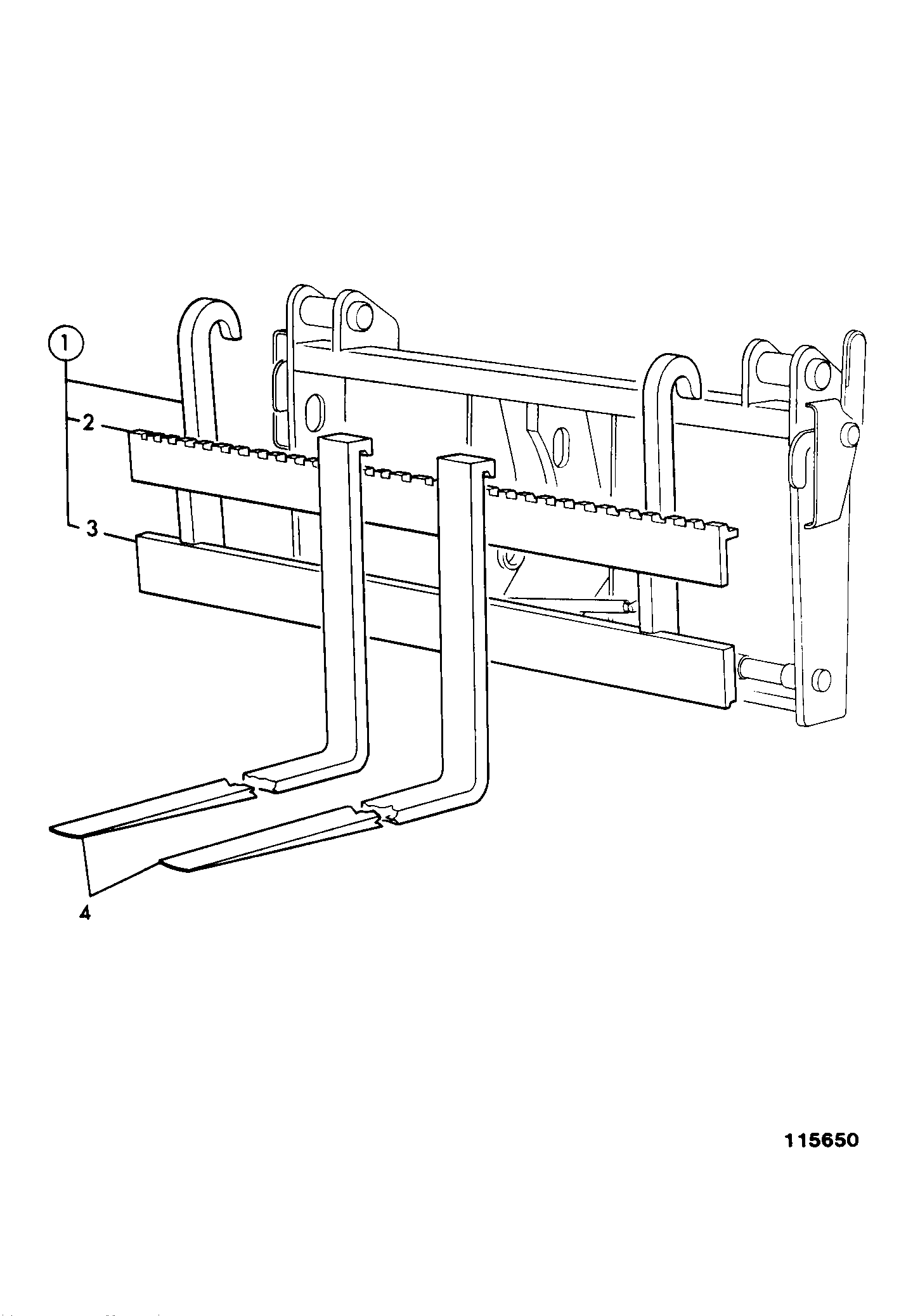

A3-2-2 CARRIAGE FORK,INDUSTRIAL Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	INDUSTRIAL FORK FRAME G.A 545/40800	1	AVAILABLE TO ORDER	$4,918.63	Quantity
2	CARARIAGE STILE TOP 547/40302	1	AVAILABLE TO ORDER	$1,327.80	Quantity
3	CARRIAGE STILE BOTTOM 547/40303	1	AVAILABLE TO ORDER	$2,902.75	Quantity
4	100x50x1067mm FORKS CL 3 718 H/H 547/07900 333/T0068	1	AVAILABLE TO ORDER	$765.99	Quantity

Showing 1 to 4 of 4 parts
