Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | Kingpost 980/42321 | 1 | $2,839.24 | |||
| 3 | Carriage 980/42322 | 1 | $4,778.45 | |||
| 4 | PIN PIVOT 980/42323 | 1 | $210.53 | |||
| 5 | BUSH 980/42318 | 1 | $136.99 | |||
| 6 | WASHER PLAIN 980/42325 | 1 | $5.34 | |||
| 7 | NUT M24 STD SELF LOCK 1370/0903Z | 1 | $36.38 | |||
| 8 | NUT M20 STD SELF LOCK 1370/0703Z | 1 | $12.95 | |||
| 9 | (W) (P) WASHER M20 PLAIN 1420/0012Z | 1 | $2.82 | |||
| 10 | CLAMP 980/42326 | 1 | $489.18 | |||
| 11 | SEAL 980/42327 | 1 | $782.36 | |||
| 12 | BOLT CLAMP 980/42328 | 1 | $115.34 | |||
| 13 | WASHER BONDED 1/8"BSP(KANBAN) 1406/0008 | 1 | $4.63 | |||
| 14 | ADAPTOR G1/4A-G1/8A 1606/0001 1606/2050 | 1 | $8.46 | |||
| 17 | PIN PIVOT 980/42330 | 1 | $123.02 | |||
| 18 | TUBE SPACER 980/42331 | 1 | $64.57 | |||
| 19 | Foot stabiliser ri 980/42333 | 1 | $450.70 | |||
| 20 | Leg stabiliser 980/42334 | 1 | $345.80 | |||
| 22 | PIN PIVOT 980/42336 | 1 | $80.23 | |||
| 23 | BUSHING 980/42337 | 1 | $115.81 | |||
| 24 | CAP SCREW M10x60 1391/3414Z 1391/3414 | 1 | $18.70 | |||
| 27 | RACHET 980/42339 | 1 | $323.10 | |||
| 28 | CLEVIS 980/42340 | 1 | $200.18 | |||
| 30 | BOLT 1305/3822Z | 1 | $20.60 | |||
| 31 | NUT 3/4UNF STD SELF LOCK 1340/0703Z | 1 | $18.33 | |||
| 32 | BOLT M10x70 1315/3416Z | 1 | $4.90 | |||
| 33 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 34A | KNOB 980/42384 | 1 | $43.94 | |||
| 34B | Lever 980/42359 | 1 | $58.10 | |||
| 34C | Pin roll 980/42324 | 1 | $1.88 | |||
| 34D | Spring 980/42329 | 1 | $15.54 | |||
| 35 | SET-SCREW M_6 L-30mm 1315/0208Z | 1 | $0.33 | |||
| 42 | RAM -SLEW 980/43500 | 1 | $3,330.65 | |||
| 44 | Pin pivot 980/42349 | 1 | $47.79 | |||
| 46 | CAP-SCREW M_8 L-_20mm 1391/3305 | 1 | $0.38 | |||
| 48 | WASHER BONDED 3/8" BSP(KANBAN) 1406/0015 | 1 | $1.52 | |||
| 49 | ADAPTOR G3/8A-G1/4A 1606/0003 1606/2052 | 1 | $15.43 | |||
| 50 | WASHER BONDED 1/4 BSP 1406/0011 | 1 | $1.52 | |||
| 52 | ADAPTOR G1/4A M/M 1604/0002 | 1 | $29.81 | |||
| 54 | COVER STABILISER 980/42354 | 1 | $70.81 | |||
| 56 | SET SCREW M6x12 1315/0201Z | 1 | $0.62 | |||
| 57 | HITCH PLATE 980/42302 | 1 | $170.84 | |||
| 58 | SET SCREW M6 X 16 GRADE 8.8 1315/0203Z 1315/0203D | 1 | $0.54 | |||
| 59 | (W) (Pre-P) WASHER M6 SPRING (BR3) 1425/0006Z | 1 | $0.14 | |||
| 60 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
Showing 1 to 44 of 44 parts
Related Assemblies
-
DIAG-E4-14-1-395377 E4-14-1 RAM, BUCKET BACKHOE ATTACHMENT
View Diagram -
DIAG-A3-13-1-395377 A3-13-1 ATTACHMENT BACKHOE BOOM AND DIPPER
View Diagram -

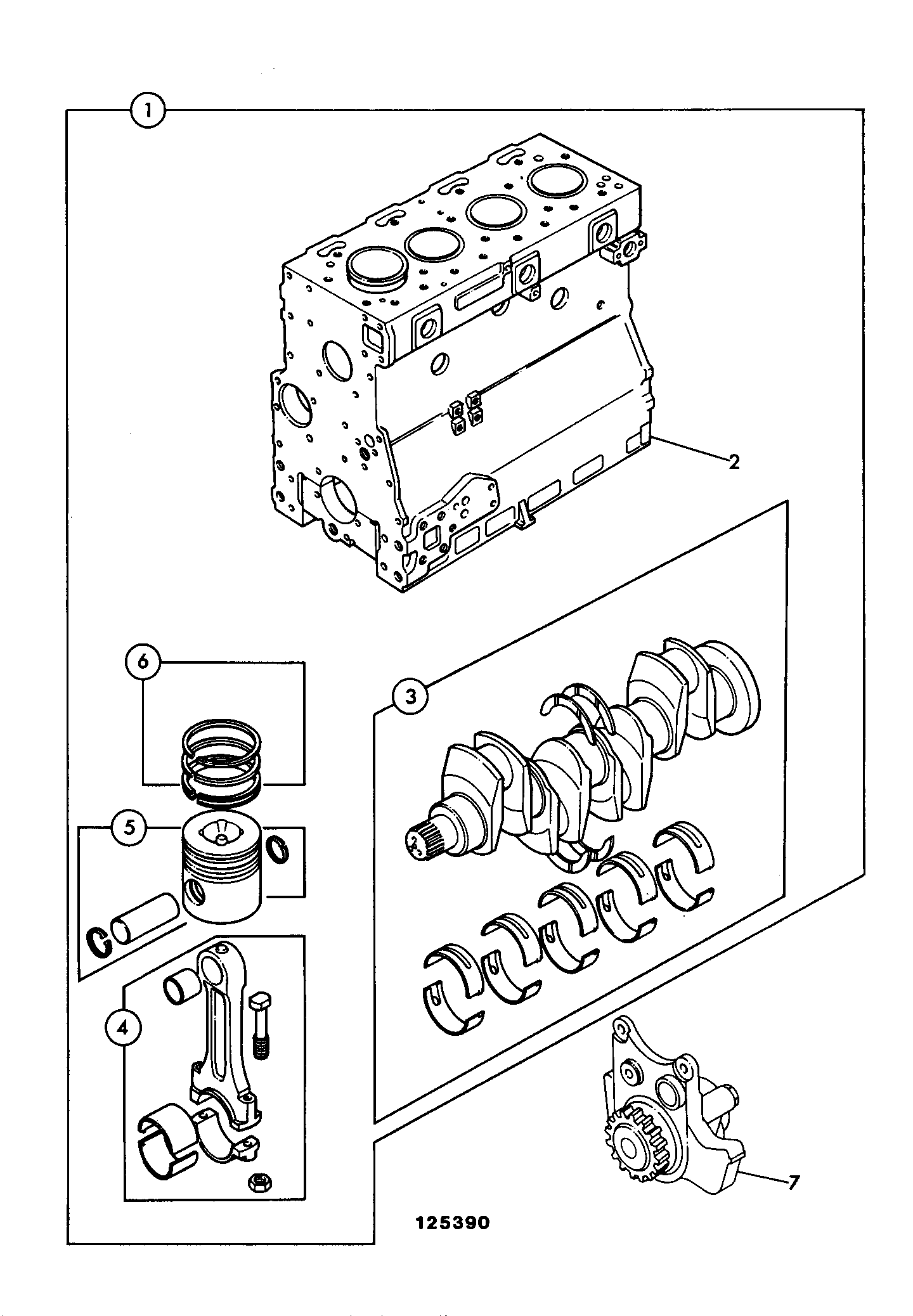

DIAG-P1-2-1-395394 P1-2-1 ENGINE, SHORT AR BUILD
View Diagram
