Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | RH ARM BRKT ASSY 476/30801 | 1 | $514.13 | |||
| 3 | LH ARM BRKT ASSY 476/30802 | 1 | $677.54 | |||
| 4 | PIN 478/01298 | 1 | $282.46 | |||
| 5 | LYNCHPIN 826/01166 826/01271 | 1 | $14.18 | |||
| 6 | WASHER 1411/0012Z | 1 | $3.97 | |||
| 8 | BOLT EYE 478/19944 | 1 | $86.85 | |||
| 9 | NUT M20 THIN PLAIN 1370/0702Z | 1 | $2.57 | |||
| 10 | WASHER 7/8 SMALL 1410/0009Z | 1 | $2.23 | |||
| 11 | LYNCH PIN 826/01278 | 1 | $3.21 | |||
| 12 | RETAINING ROPE. 476/26706 | 1 | $6.35 | |||
| 13 | WIRE CLIP 476/26709 | 1 | $4.02 | |||
| 14 | CROSS SHAFT 476/30001 | 1 | $280.60 | |||
| 15 | BRACKET-LH 478/00226 | 1 | $1,862.79 | |||
| 16 | LOWER LINK BRKT 478/00227 | 1 | $1,862.79 | |||
| 17 | SUPPORT WASHER 823/00459 | 1 | $5.00 | |||
| 18 | CIRCLIP 821/00341 | 1 | $5.31 | |||
| 19 | DIA.45 CROSS SHAFT 476/30002 | 1 | $239.71 | |||
| 20 | SUPPORT WASHER 823/00460 | 1 | $5.82 | |||
| 21 | CIRCLIP 821/00342 | 1 | $5.16 | |||
| 22 | LOCK PAWL ASSY 478/01441 | 1 | $454.61 | |||
| 23 | CENTRE HOOK 478/01443 | 1 | $112.99 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-

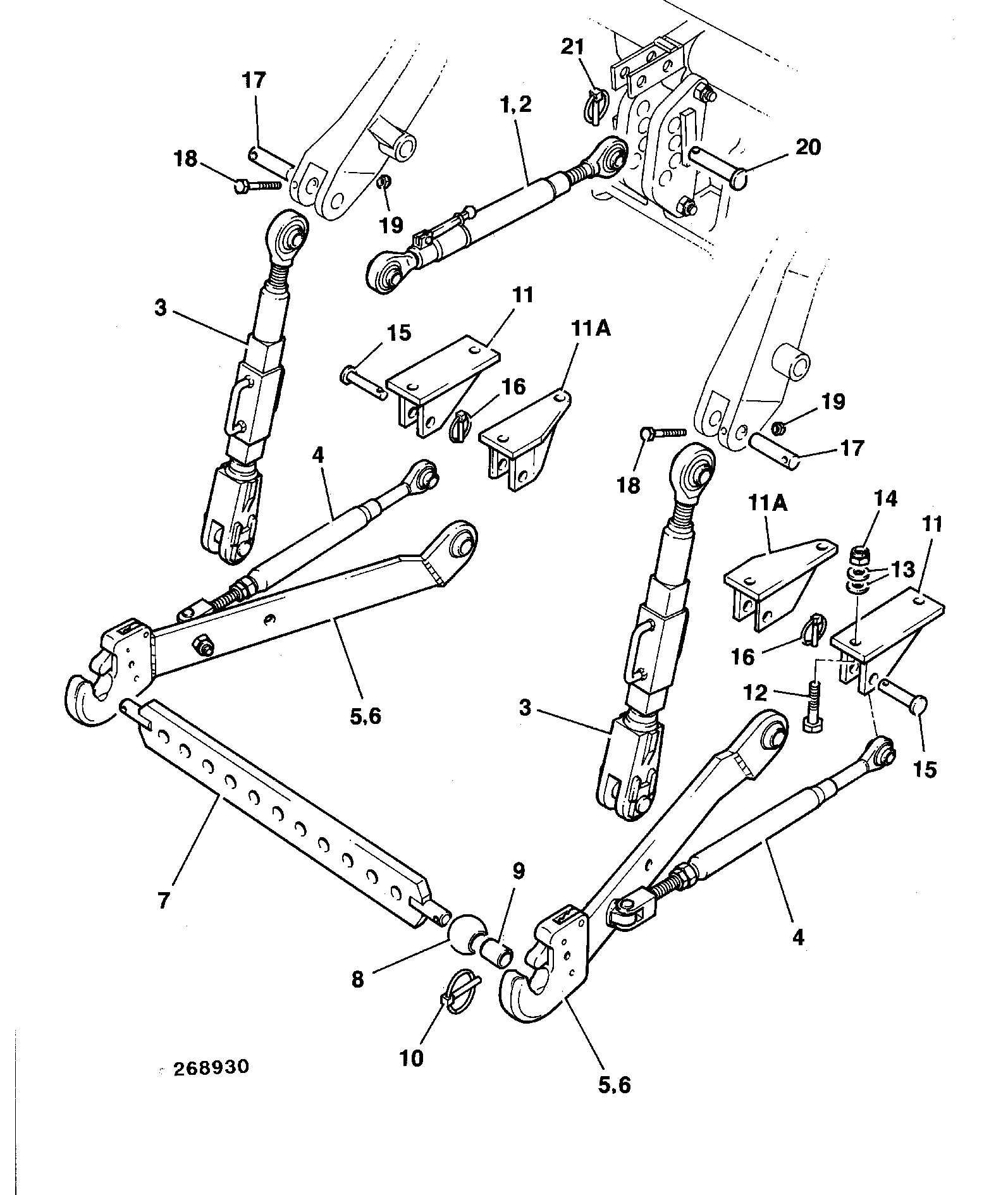

DIAG-A3-10-2-393521-10469470 A3-10-2 HITCH, REAR, LINKAGE
View Diagram -

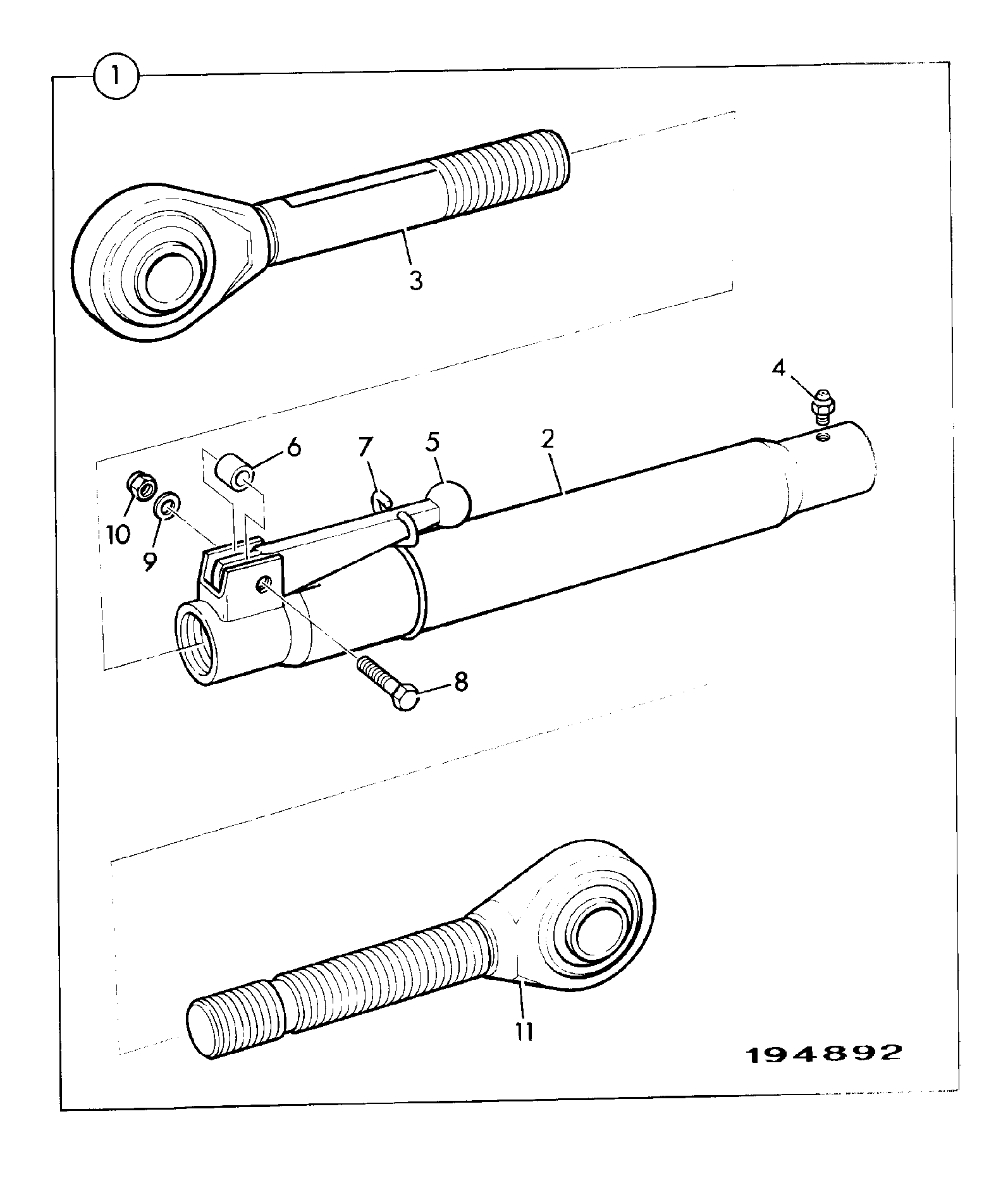

DIAG-A3-12-1-393521 A3-12-1 TOP LINK ASSEMBLY EYE END 75MM LIFT RAMS
View Diagram -
DIAG-A3-10-1-393521-10469468 A3-10-1 HITCH, REAR
View Diagram
