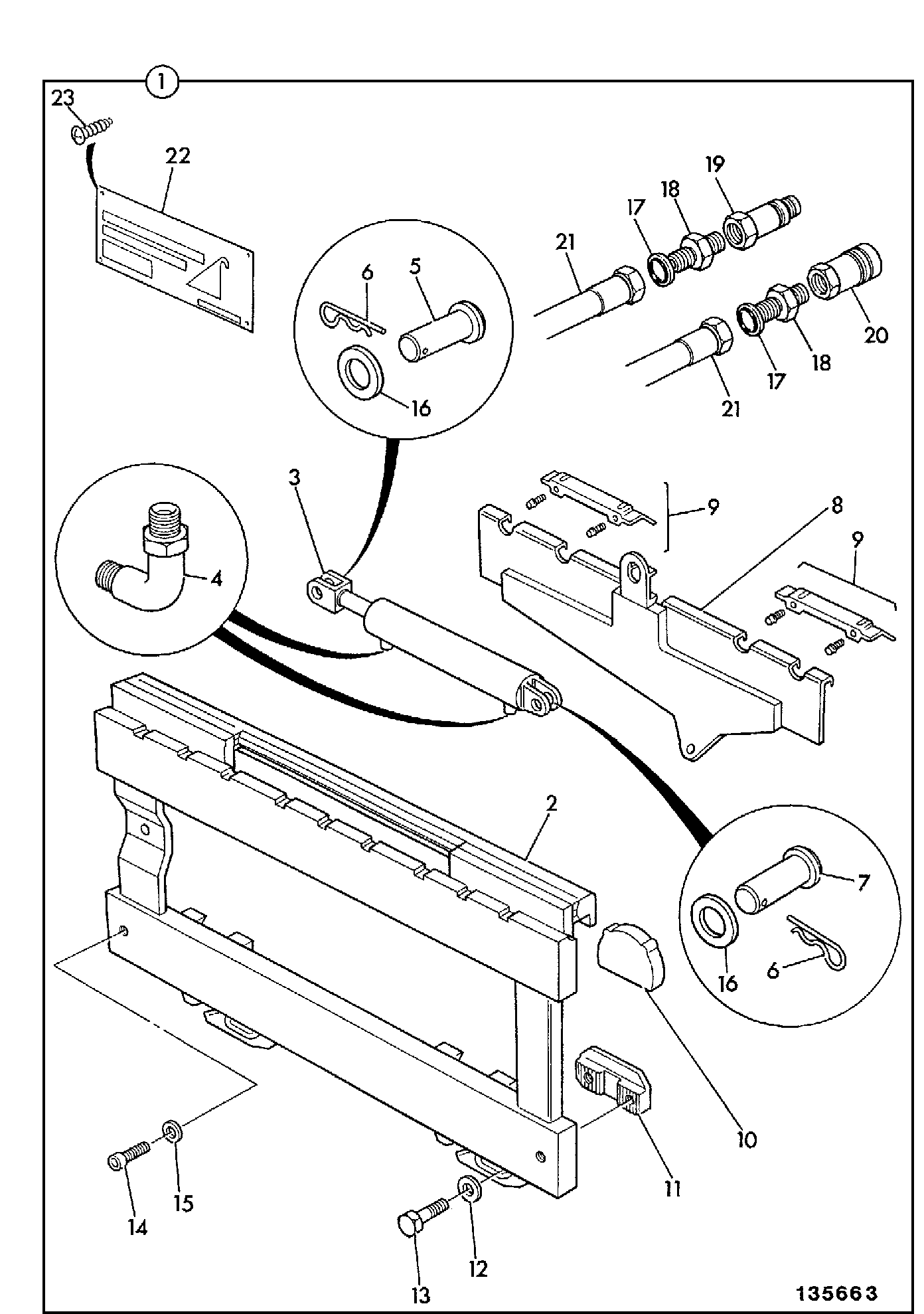

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | '48" WIDE SIDE TILT CARRIAGE, 21/4" FORK 330/71421 | 1 | $8,405.63 | |||
| 2 | 530B CARRIAGE FRONT A1-5-2 330/71422 | 1 | $3,462.76 | |||
| 4 | WASHER 1411/0014 | 1 | $24.54 | |||
| 5 | SPACER TUBE MAJOR 330/71406 | 1 | $106.15 | |||
| 6 | CYL ASSY 2.50x1.25x10.00 549/00173 | 1 | $1,454.05 | |||
| 9 | SCREW 1/2 X 1 UNF 1305/0406 | 1 | $1.94 | |||
| 11 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 12 | BOLT 1-1/2" X 6-3/8" MAJOR 330/71424 | 1 | $278.03 | |||
| 13 | NUT (MAJOR#10019) 330/31425 | 1 | $96.29 | |||
| 14 | BRACKET (SIDE TILT CARR.) 330/71409 | 1 | $193.48 | |||
| 15 | WASHER BONDED 3/8" BSP(KANBAN) 1406/0015 | 1 | $1.52 | |||
| 16 | ADAPTOR G3/8A M/M 1604/2052 | 1 | $18.27 | |||
| 19 | HOSE -06 BSP HP 775mm A 612/01100 | 1 | $80.36 | |||
| 22 | PIN SPLIT 2103/1618 | 1 | $2.56 | |||
| 23 | G51/4 PIPECAP 816/00192 | 1 | $3.82 | |||
| 24 | O-RING 2401/0102 | 1 | $1.26 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-
DIAG-A3-1-6-400160 A3-1-6 CARRIAGE, SIDESHIFT
View Diagram -
DIAG-A3-2-1-400160 A3-2-1 CARRIAGE, FORK INDUSTRIAL
View Diagram -
DIAG-A3-1-1-400160 A3-1-1 CARRIAGE 'Q'FIT
View Diagram
