Scroll to zoom Click a part # to view details

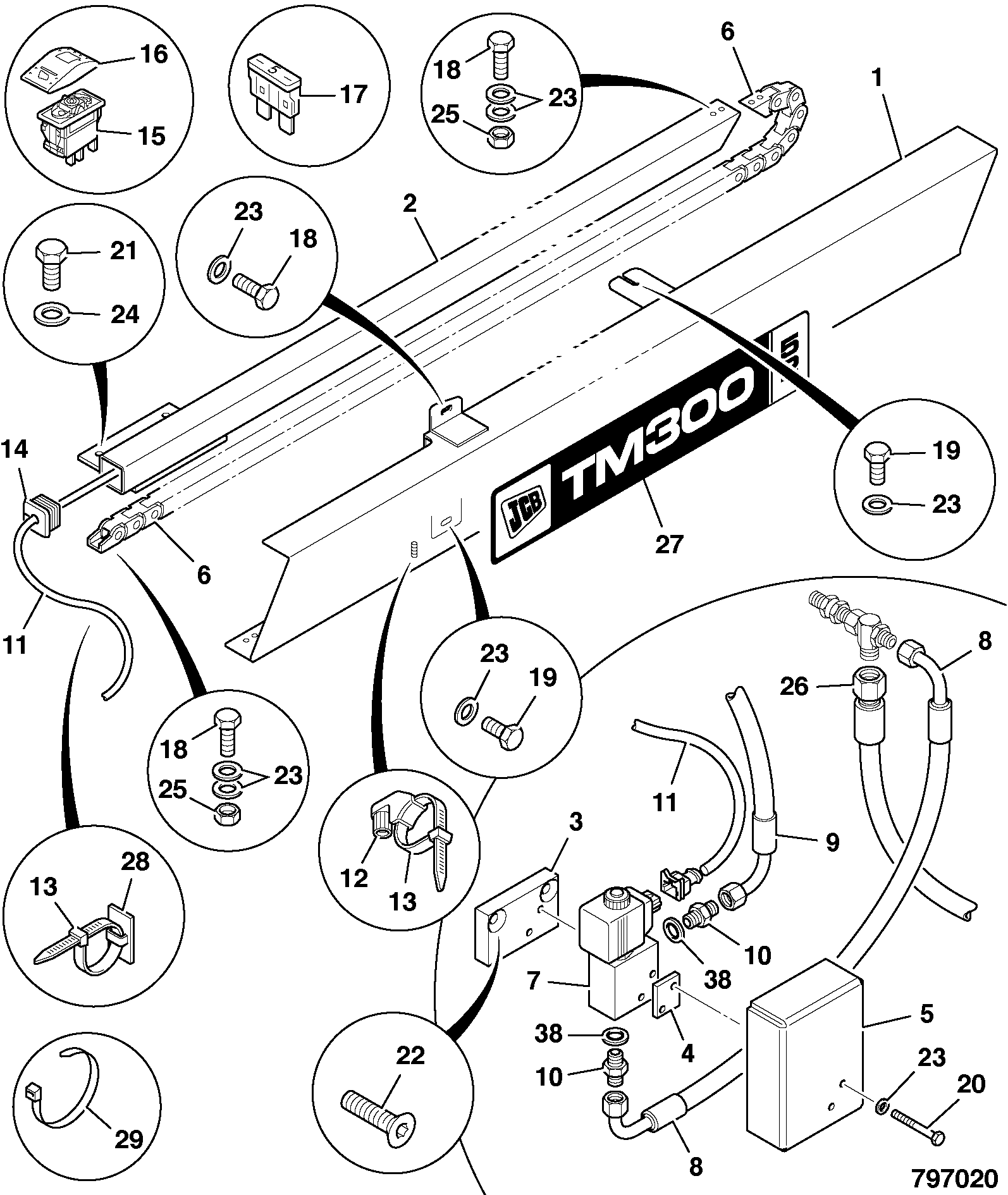

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| A113 50 mltrs PERMABOND 4101/0251 | 1 | $36.80 | ||||
| CAP SCREW M12x100 1391/3520 | 1 | $1.26 | ||||
| CAP SCREW M16x30 1391/3708D | 1 | $9.47 | ||||
| NUT M12 STD SELF LOCK 1370/0403Z | 1 | $2.11 | ||||
| PVC HOSE ROLL (100FT) 647/02600 | 1 | $9.55 | ||||
| QUICKHITCH PIN AND CONE 331/35541 | 1 | $10,003.59 | ||||
| QUICKHITCH WA (PIN&CONE) 331/50441 | 1 | $6,299.20 | ||||
| WASHER 1/2 1417/0014Z 1417/0014D | 1 | $1.16 | ||||
| 2 | GA Q-HITCH RAM 50x30 (Tm300) 551/60169 551/60195 | 1 | $1,163.58 | |||
| 3 | COUPLING QR MALE F9 - 1/2BSP 45/910500 | 1 | $78.76 | |||
| 4 | COUPLING QR FEMALE F9 - 1/2BSP 45/910400 | 1 | $124.19 | |||
| 6 | WASHER BONDED 3/8" BSP(KANBAN) 1406/0015 | 1 | $1.52 | |||
| 7 | VALVE ; BALL 25/201400 25/222487 | 1 | $70.18 | |||
| 8 | ADAPTOR G1/4A M/M 1604/0002 | 1 | $29.81 | |||
| 9 | WASHER BONDED 1/4 BSP 1406/0011 | 1 | $1.52 | |||
| 10 | 3DAPTOR 3-WAY 816/50031 | 1 | $34.01 | |||
| 11 | BOLT M12X120 1315/3522Z | 1 | $7.65 | |||
| 11 | SCREW CAP 1391/3720 | 1 | $91.89 | |||
| 12 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $0.65 | |||
| 14 | BULKHEAD ADAPTOR 816/10149 | 1 | $65.45 | |||
| 15 | ADAPTER 816/50048 | 1 | $217.71 | |||
| 16 | SPRING-WASHER M12 1425/0009Z 1425/0009D | 1 | $0.85 | |||
| 17 | BULKHEAD MOUNT 331/13007 | 1 | $357.70 | |||
| 18 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $1.22 | |||
| 19 | SPACER 267/39334 | 1 | $155.82 | |||
| 19 | SPACER - QUICKHITCH 829/31049 | 1 | $99.42 | |||
| 20 | HOSE.1/2BSP 1150mm lg 613/50200 | 1 | $249.72 | |||
| 24 | WASHER -WEAR 267/39333 | 1 | $2.56 | |||
| 25 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 26 | ADAPTOR 1/4 BSP BULKHEAD 816/90005 | 1 | $4.45 | |||
| 28 | HOSE -HP 611/45600 | 1 | $111.87 | |||
| 29 | HOSE 1/4BSP 250mm 611/29500 | 1 | $32.06 | |||
| 31 | HOSE 611/48500 | 1 | $59.74 | |||
| 31 | HOSE 1/4BSP 920mm 611/80121 | 1 | $44.50 | |||
| 32 | HOSE 611/53000 | 1 | $141.66 | |||
| 32 | HOSE 1/4BSP 740mm 611/80122 | 1 | $39.22 | |||
| 34 | TWIN CLAMP MOULDING 821/00347 | 1 | $31.20 | |||
| 35 | COVER PLATE and bolt 821/00169 821/00169A | 1 | $1.92 | |||
| 40 | SET SCREW M8x35(KANBAN) 1315/0309Z | 1 | $2.57 | |||
| 42 | 334/vPIVOT PIN DIA 75 911/40086 | 1 | $996.97 | |||
| 43 | LINER BEARING (75x102) 809/00118 333/S1234 | 1 | $61.37 | |||
| 44 | KEEP PLATE SPACER 830/11742 | 1 | $37.27 | |||
| 45 | Nut locking 826/10393 | 1 | $17.09 | |||
| 46 | BOLT M20x45 1315/0811D | 1 | $7.75 | |||
| 47 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
| 48 | PIVOT PIN SEAL 75-85-6 813/00415 | 1 | $86.35 | |||
Showing 1 to 46 of 46 parts
Related Assemblies
-
DIAG-A1-10-1-403015 A1-10-1 TOOTH GUARD
View Diagram -
DIAG-A3-2-1-403015 A3-2-1 QUICKHITCH ISOLATION KIT PIN & CONE
View Diagram -
DIAG-A1-2-1-403015 A1-2-1 BUCKET 1.0 CU.M WITH BOLT ON TOEPLATE
View Diagram
