Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| GA - Q-HITCH LOADER HYD 2CX AIRMASTER 141/67300 | 1 | $6,036.84 | ||||
| WASHER 1/4IN SMALL 1410/0001Z 1410/0001D | 1 | $0.29 | ||||
| 1 | WA - QUICKHITCH 141/29200 | 1 | $3,564.77 | |||
| 2 | PIPE 141/24000 | 1 | $325.86 | |||
| 3 | BALL VALVE 25/961900 | 1 | $262.05 | |||
| 4 | ADAPTOR G1/4A X G1/4 1612/0002 1612/2050 | 1 | $16.07 | |||
| 6 | COUPLING QR MALE 3/8BSP 45/910700 | 1 | $60.31 | |||
| 7 | COUPLING QR FEMALE 3/8BSP 45/910600 | 1 | $120.27 | |||
| 8 | WASHER BONDED 3/8" BSP(KANBAN) 1406/0015 | 1 | $1.52 | |||
| 9 | GUARD 141/00525 | 1 | $96.61 | |||
| 10 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | |||
| 11 | (W) (Pre-P) WASHER M6 SPRING (BR3) 1425/0006Z | 1 | $0.14 | |||
| 12 | RIVET NUT M6 826/01181 | 1 | $21.74 | |||
| 13 | PISTON 511/53501 | 1 | $791.24 | |||
| 14 | CAP END 274/00859 | 1 | $527.95 | |||
| 14 | END CAP 266/14902 | 1 | $2,214.95 | |||
| 15 | NUT M16 STD SELF LOCK 1370/0603Z | 1 | $2.66 | |||
| 16 | WEAR RING 60 x 6.9 2411/7916 | 1 | $18.47 | |||
| 17 | O-RING 2401/0314 | 1 | $5.38 | |||
| 18 | O-RING 2401/0229 | 1 | $6.00 | |||
| 19 | GLAND SEAL 904/09000 | 1 | $18.66 | |||
| 20 | WIPER SEAL 904/09100 | 1 | $34.41 | |||
| 21 | BOLT M16 X 110 1316/3721 | 1 | $29.11 | |||
| 22 | O-RING 2401/0218 | 1 | $1.46 | |||
| 23 | PISTON SEAL 60 x 6 2411/1129 | 1 | $71.17 | |||
| 27 | WASHER BONDED 1/4 BSP 1406/0011 | 1 | $1.52 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-

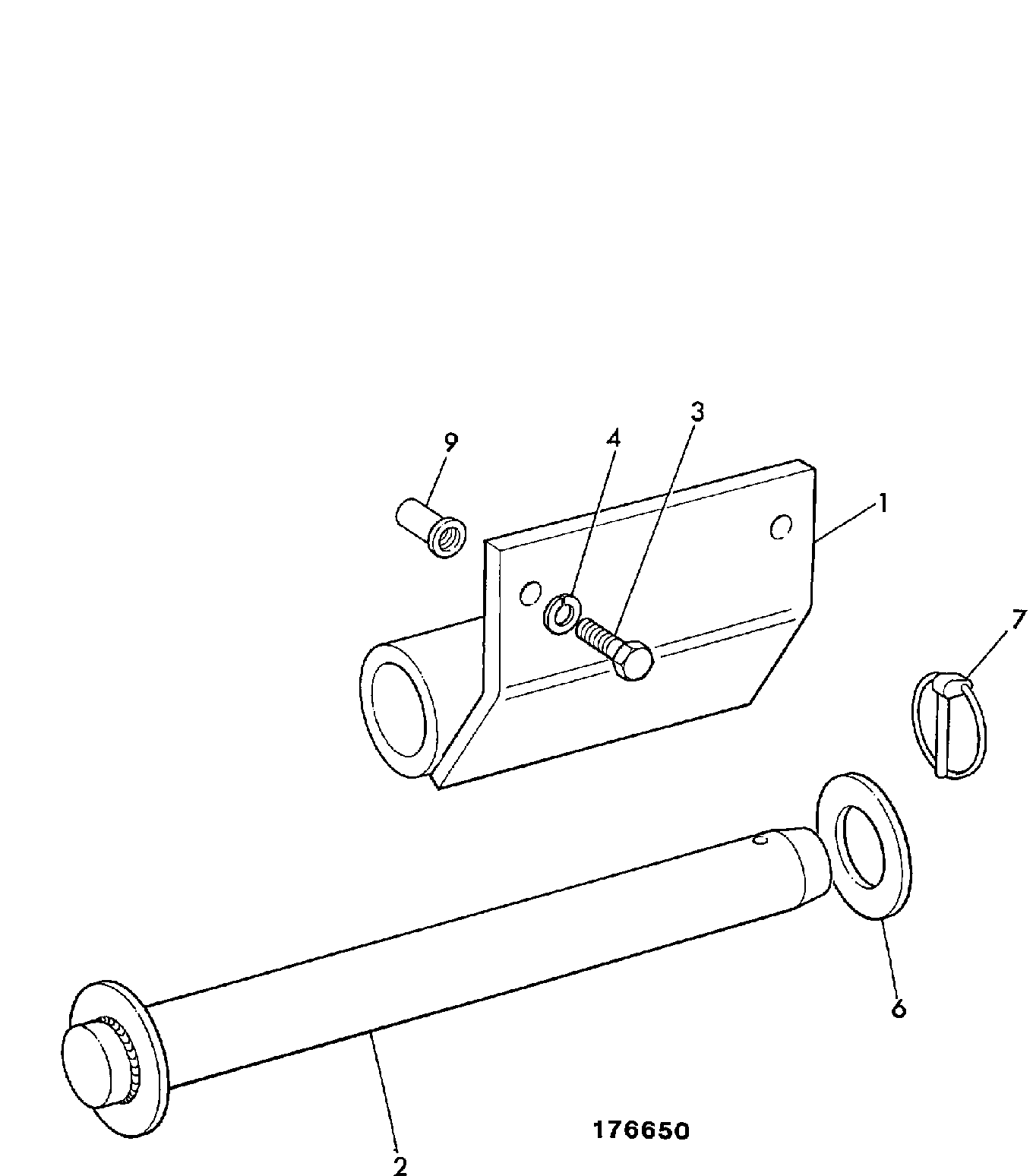

DIAG-A3-6-2-395077-11167846 A3-6-2 BRACKET BUCKET STOWAGE
View Diagram -

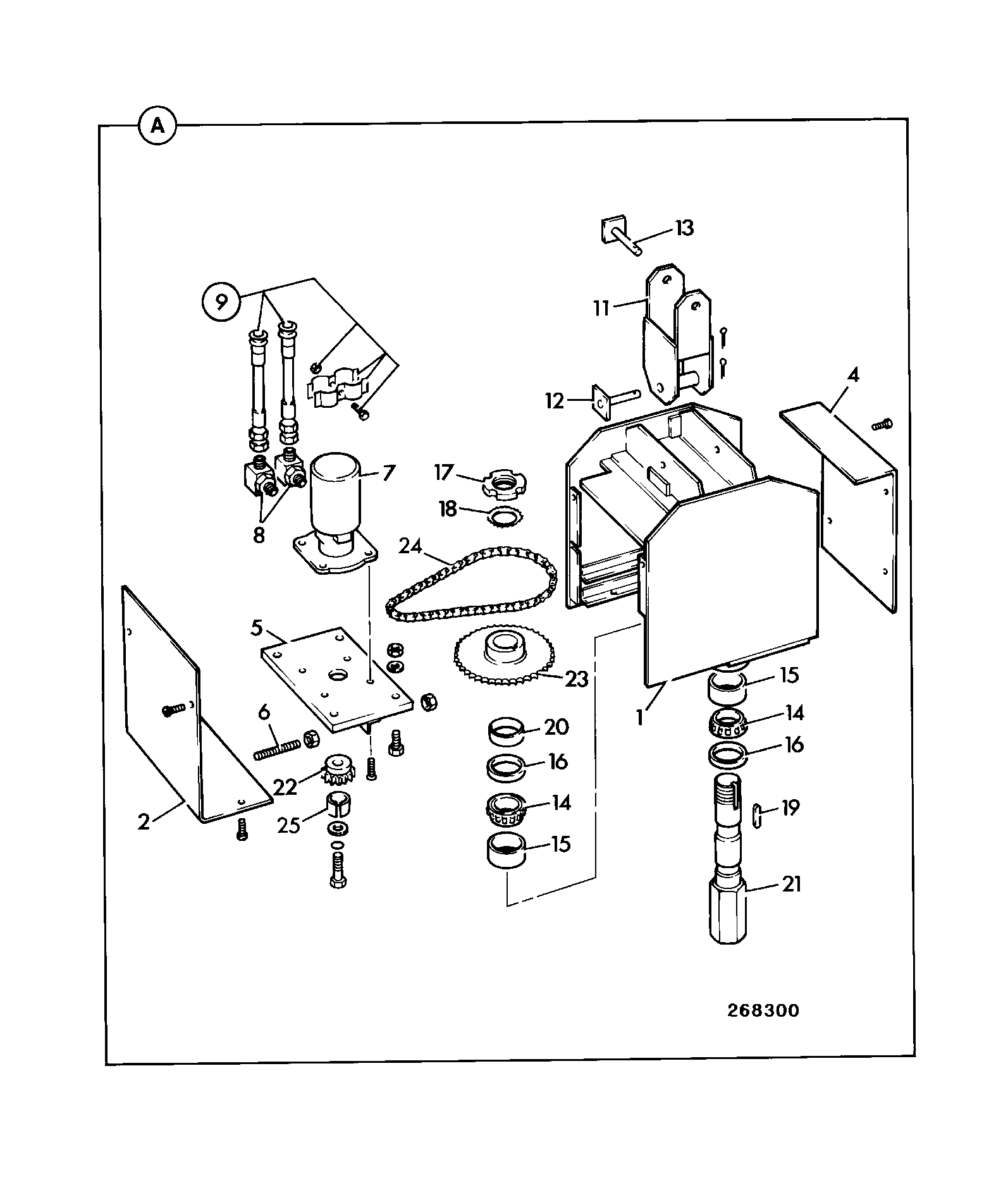

DIAG-A3-7-2-395077 A3-7-2 EARTH DRILL JCB 1200 QUICK HITCH MOUNTED FRONT
View Diagram -
DIAG-A3-7-3-395077 A3-7-3 EARTH DRILL JCB 1200 COMPONENTS
View Diagram
