A290-15-1 OTHER BUCKETS BUCKET BUSH KIT Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	BUSH 332/T7117 334/T6716	1	AVAILABLE TO ORDER	$178.74	Quantity
2	BUCKET LINK M/C 332/V4807	1	AVAILABLE TO ORDER	$1,425.52	Quantity

Showing 1 to 2 of 2 parts

DIAG-A290-10-1-398137 A290-10-1 OTHER BUCKETS BUCKET BUSH KIT
View Diagram

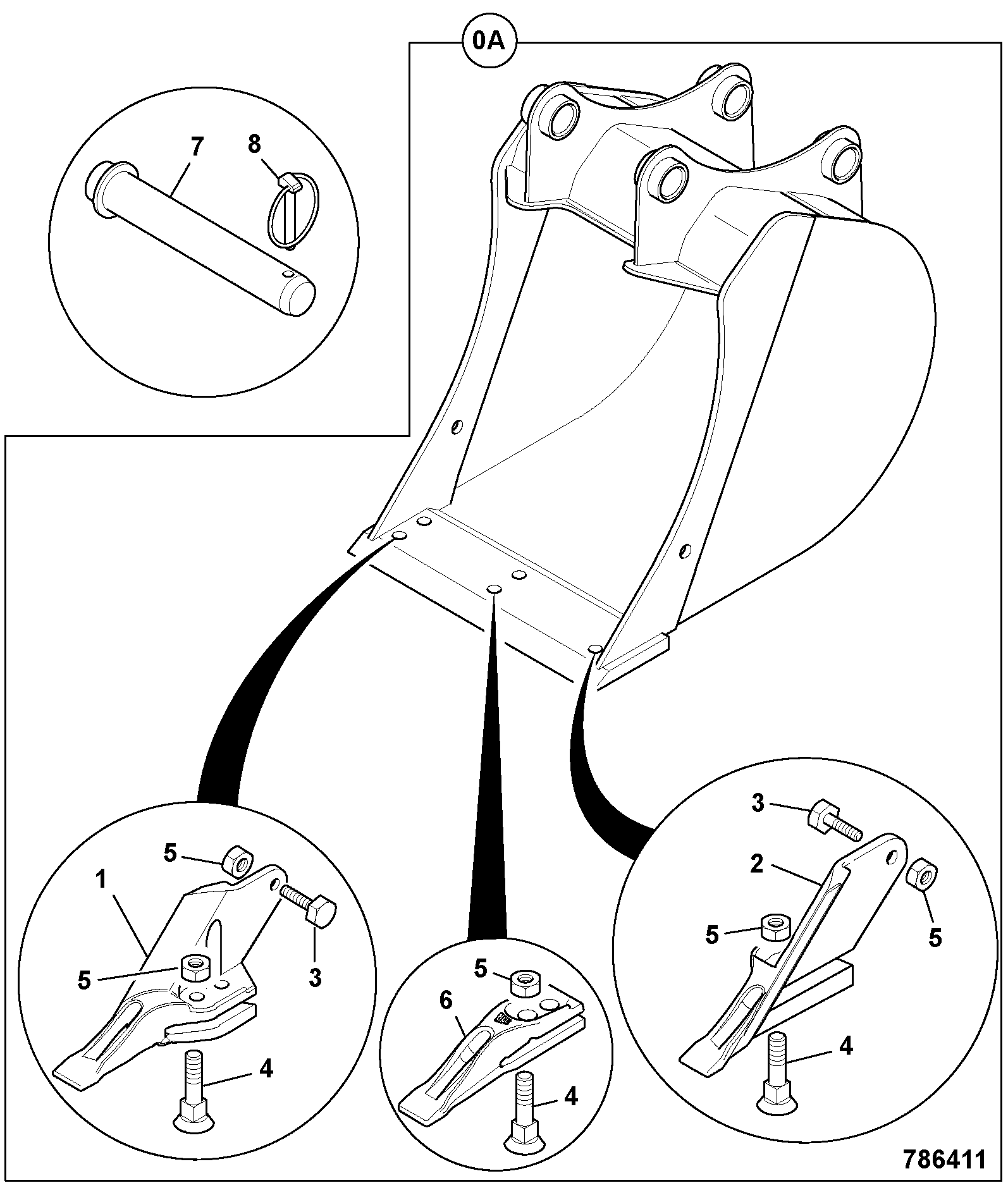

DIAG-A210-1-10-398137 A210-1-10 STANDARD BUCKET 460MM
View Diagram

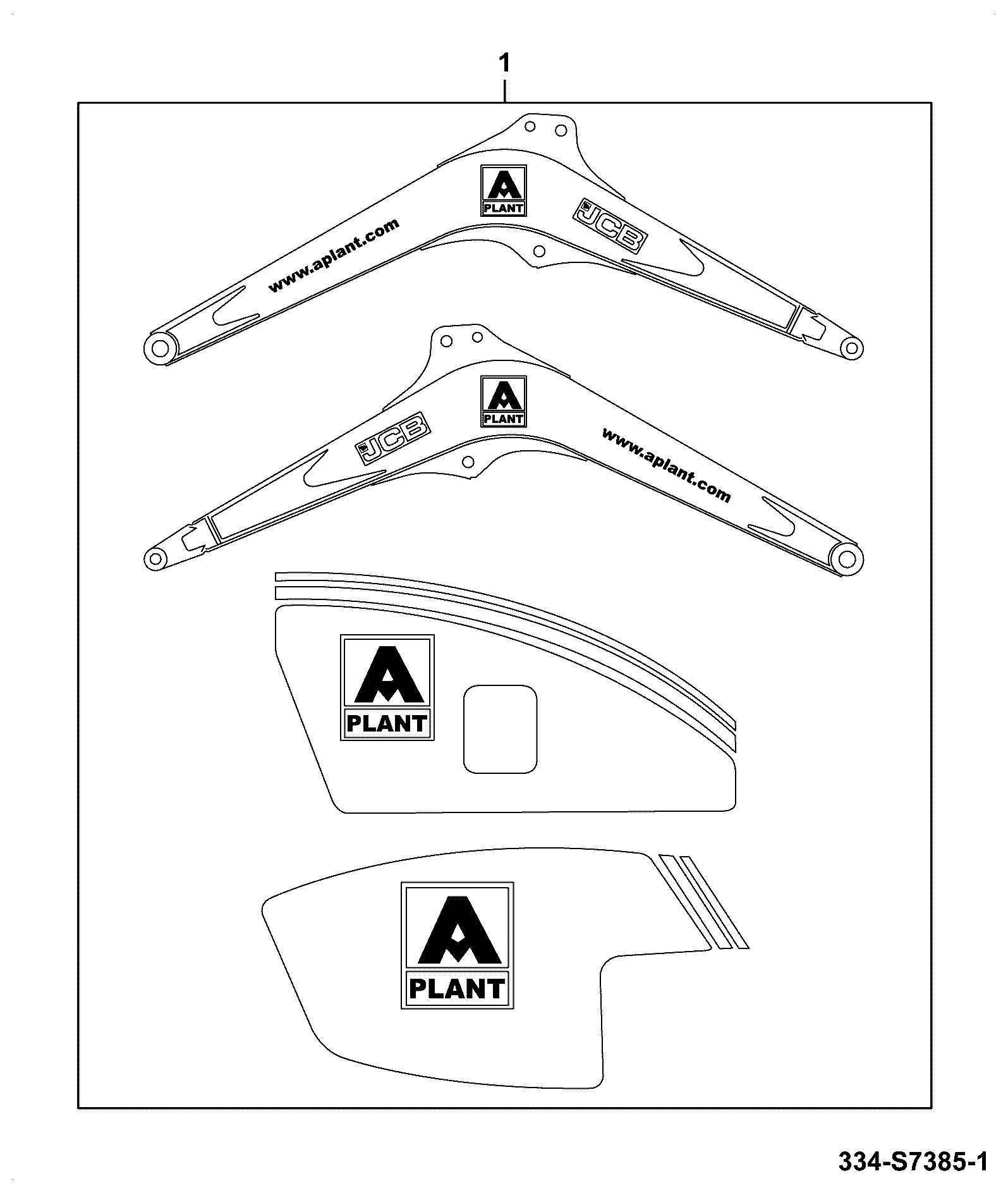

DIAG-B500-10-1-398137 B500-10-1 REFURBISHMENT INSTALLATION ASSEMBLIES A PLANT DECAL KIT
View Diagram
