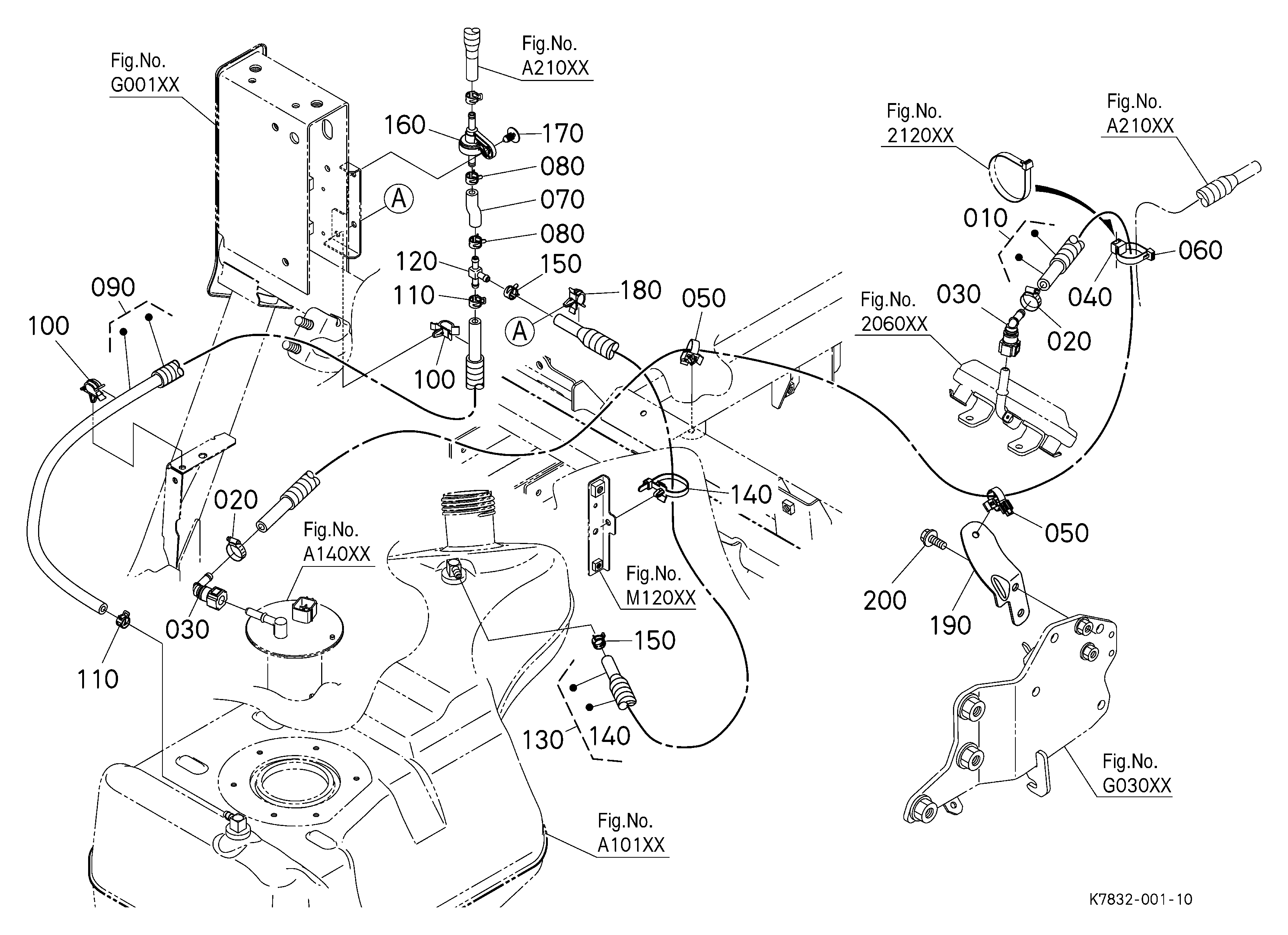

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | HOSE,ASSY(EVAP,V-C) K7812-24603 | 1 | $24.19 | |||
| 020 | CLAMP,HOSE * E7194-30110 E7192-44110 | 1 | $13.46 | |||
| 030 | HOSE,ASSY(EVAP,C-P) K7812-24653 | 1 | $18.33 | |||
| 050 | HOSE,ASSY(EVAP,P K7812-24800 | 1 | $24.62 | |||
| 070 | CLAMP, CORD K1042-61250 | 1 | $0.80 | |||
| 080 | JOINT,PIPE 1K012-42360 | 1 | $8.44 | |||
| 090 | HOSE,ASSY(EVAP,J-IM) K7812-24852 | 1 | $21.52 | |||
| 100 | BAND(M6,135) K7811-83240 | 1 | $1.75 | |||
| 110 | BAND, HOSE 09318-88095 | 1 | $4.65 | |||
Showing 1 to 9 of 9 parts
Related Assemblies
-
DIAG-A20100-194698 A20100 CANISTER
View Diagram -
DIAG-A11000-194698 A11000 FUEL PIPE
View Diagram -

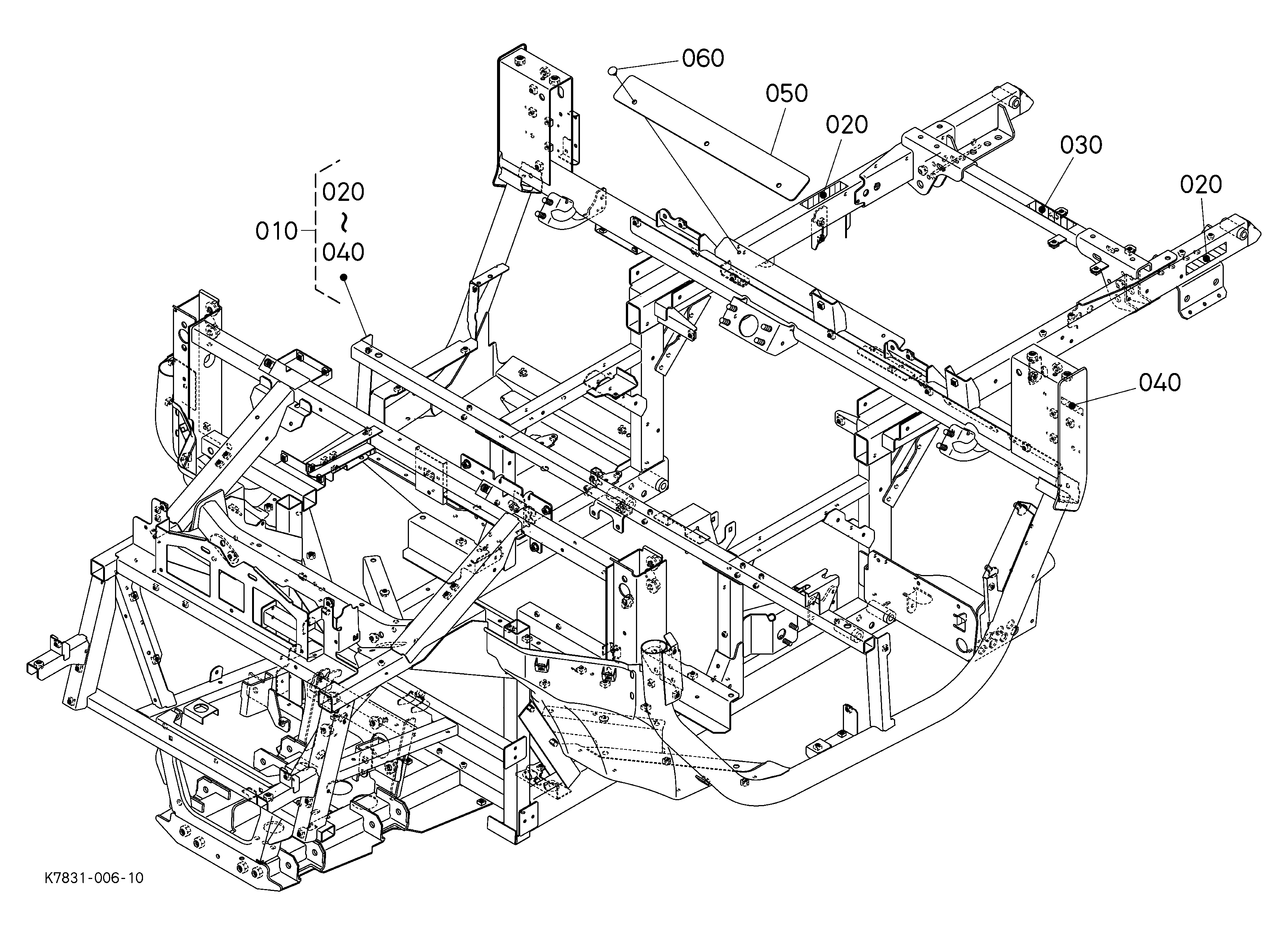

DIAG-G00100-194698 G00100 MAIN FRAME
View Diagram
