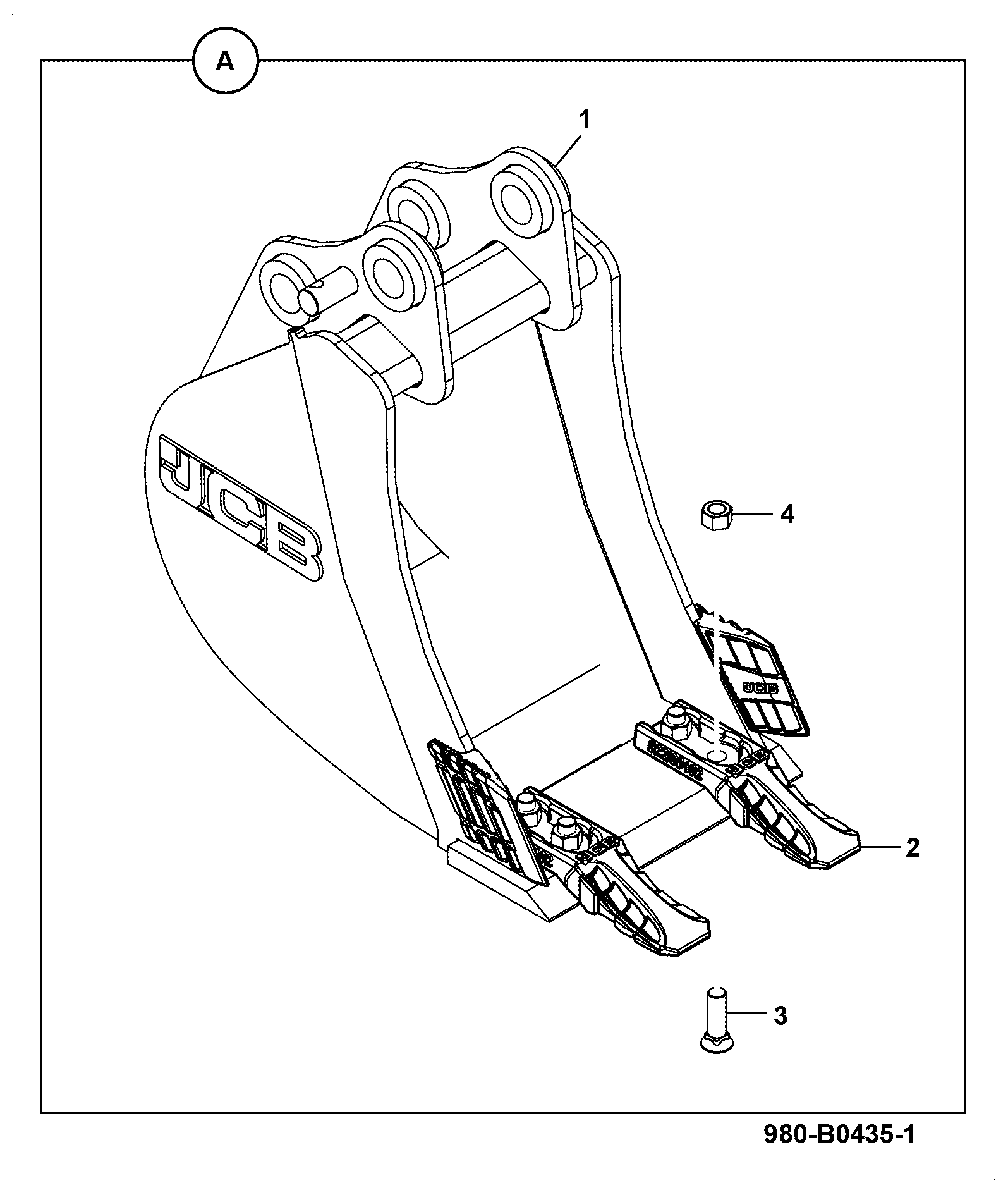

A210-85-1 STANDARD BUCKET GP 150MM, SOFT PINS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1B	SIDE CUTTER L/H 333/A8353	1	AVAILABLE TO ORDER	$11.36	Quantity
1C	SIDE CUTTER R/H 333/A8354	1	AVAILABLE TO ORDER	$11.36	Quantity
2	TOOTH 522/00102	1	5 IN STOCK	$26.69	Quantity
3	PLOUGH BOLT 826/01111	1	10 IN STOCK	$4.90	Quantity
4	1/2 UNF NUT STD 1340/0401Z	1	10 IN STOCK	$2.23	Quantity
A	GA - GP BUCKET 150mm + SOFT PINS 980/B0521	1	AVAILABLE TO ORDER	$233.23	Quantity

Showing 1 to 6 of 6 parts

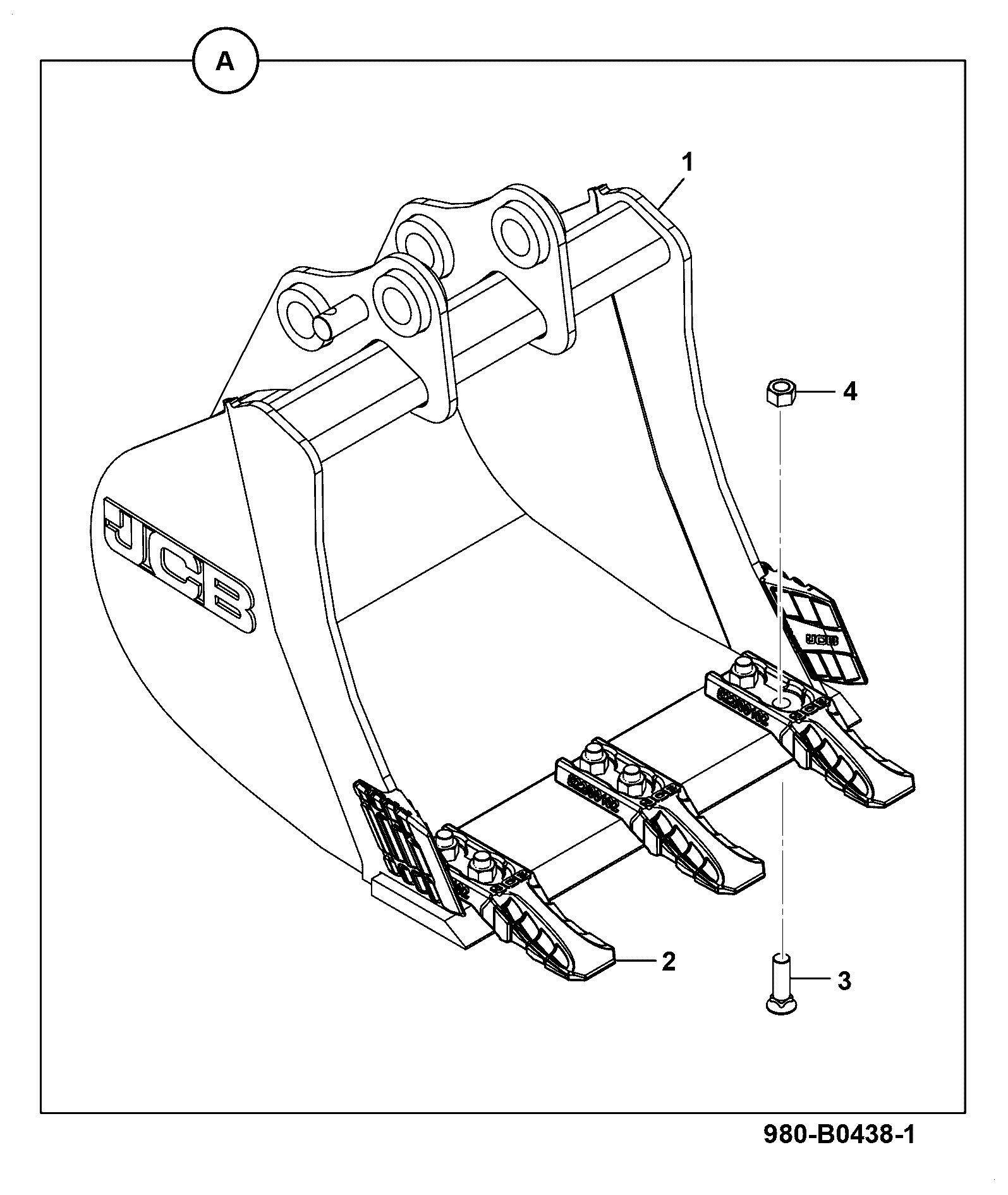

DIAG-A210-80-1-397519 A210-80-1 STANDARD BUCKET ASSEMBLY GP 450mm, 1-2T
