Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | VALVE,2WAY K3011-24223 | 1 | $29.74 | |||
| 020 | SEPARATOR K3811-25970 K3811-25972 | 1 | $27.84 | |||
| 030 | COVER, SEPARATOR K3811-25930 | 1 | $8.03 | |||
| 040 | BOLT, THREAD ROL K3011-91010 | 1 | $1.16 | |||
| 050 | HOSE,ASSY(V-E) K3881-24342 | 1 | $26.61 | |||
| 060 | HOSE(ASSY,2) K3811-24405 | 1 | $26.99 | |||
| 060 | HOSE(ASSY,2) *** K3811-24400 K3811-24404 | 1 | $29.63 | |||
| 070 | HOSE(ASSY,1) K3811-24306 | 1 | $42.76 | |||
| 070 | HOSE(ASSY,1) *** K3811-24303 K3811-24305 | 1 | $46.11 | |||
| 080 | BAND, HOSE 09318-88100 | 1 | $1.91 | |||
| 090 | CLAMP, HOSE (1/2 K3272-24660 | 1 | $1.06 | |||
Showing 1 to 11 of 11 parts
Related Assemblies
-

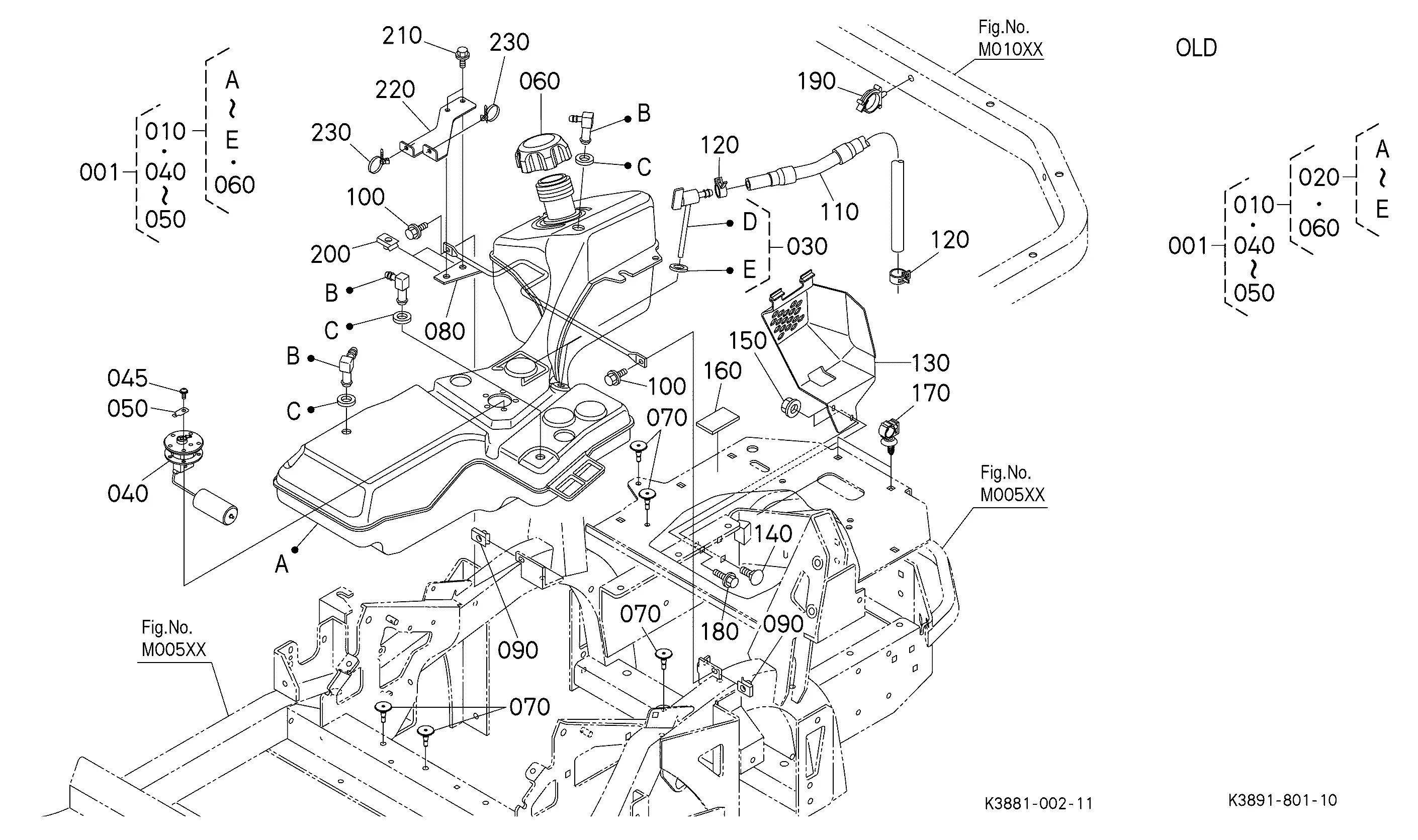

DIAG-A10100-125593 A10100 FUEL TANK
View Diagram -

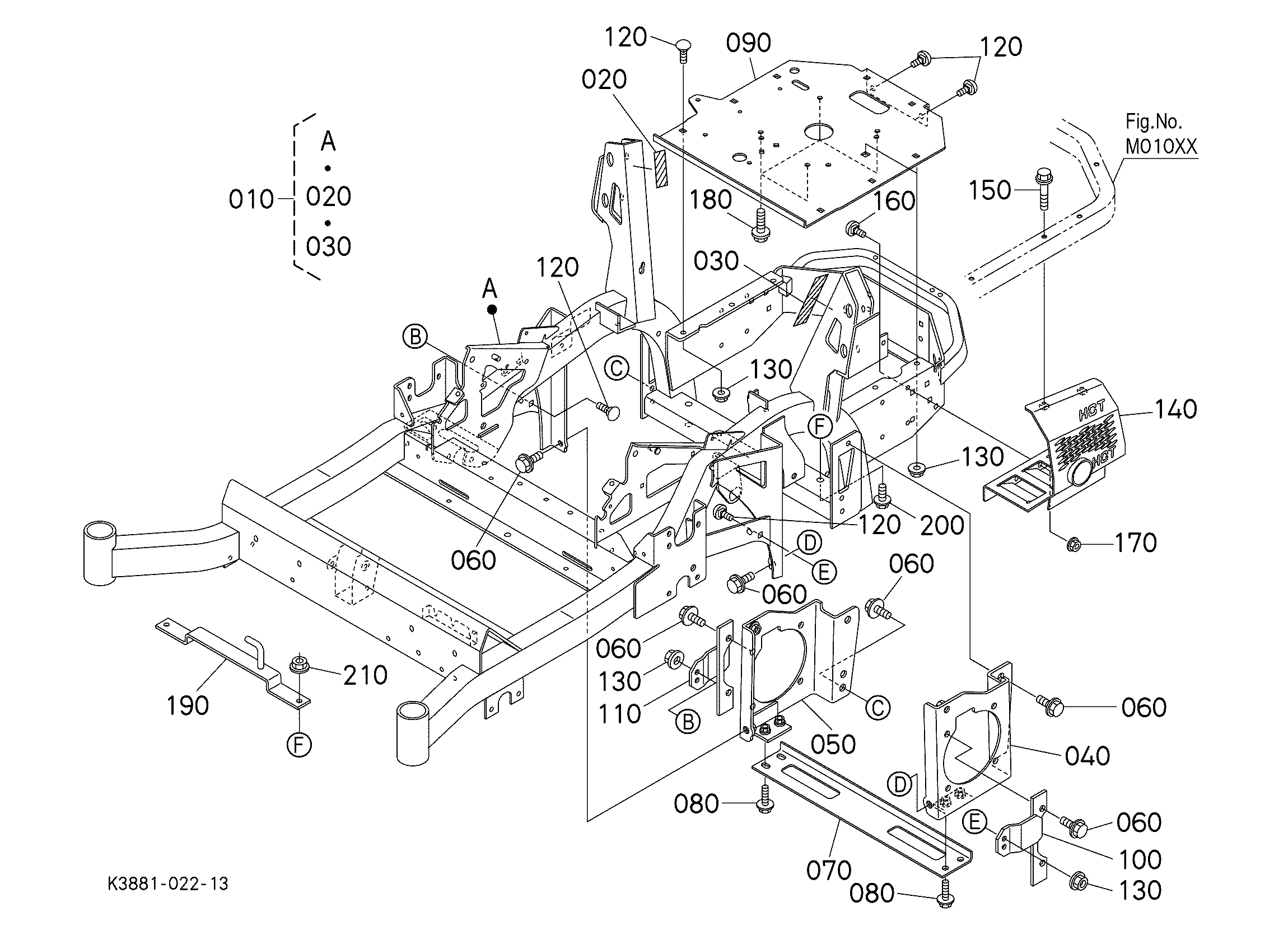

DIAG-M01000-125593 M01000 UPPER FRAME
View Diagram -

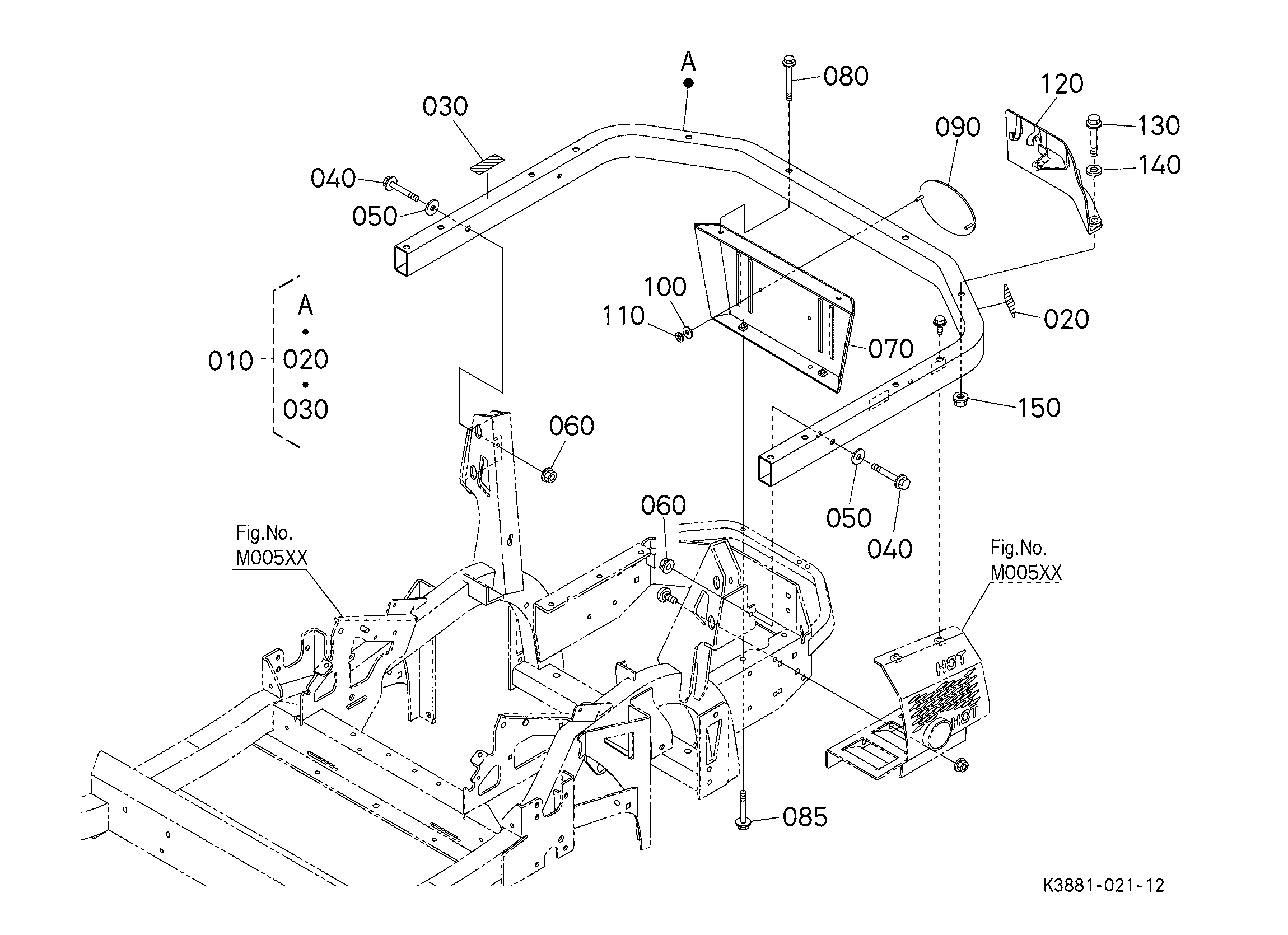

DIAG-M00500-125593 M00500 MAIN FRAME
View Diagram
