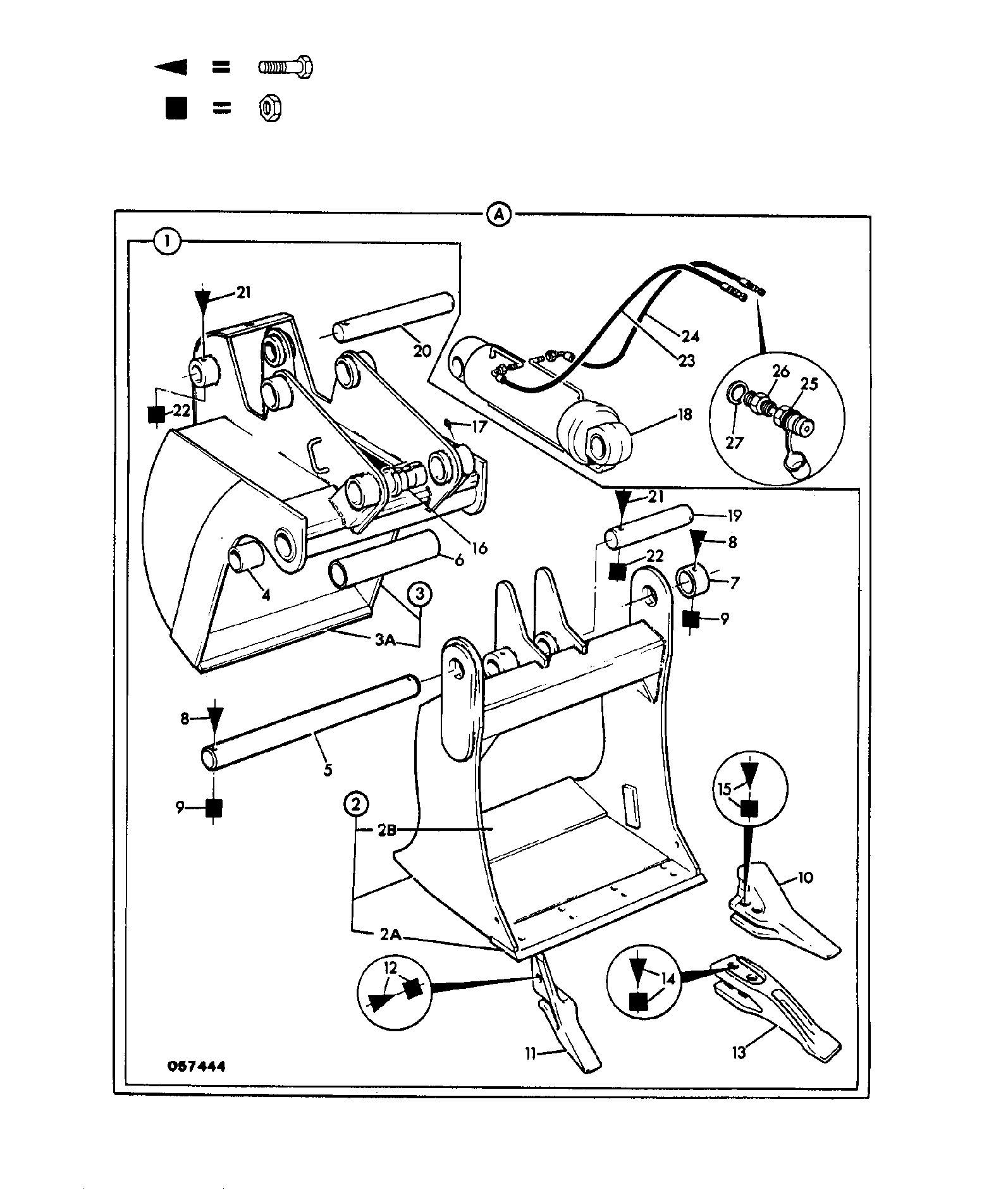

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | ||||
| 2 | TOEPLATE 529/68702 | 1 | $87.14 | |||
| 3 | TOEPLATE 529/42606 | 1 | $168.44 | |||
| 4 | BUSHING 1 13/16 X 2 1/16 X 3 1208/0017 | 1 | $145.65 | |||
| 5 | PIVOT PIN 911/16200 | 1 | $818.72 | |||
| 6 | SPACER TUBE 830/00208 | 1 | $98.43 | |||
| 7 | WASHER 823/00470 | 1 | $4.32 | |||
| 8 | EXTERNAL CIRCLIP 45mm DIA 2203/0060 | 1 | $6.14 | |||
| 9 | WA BUCKET PIN 270mm 911/16600 | 1 | $184.79 | |||
| 10 | NUT 3/4UNF STD PLAIN 1340/0701 1340/0701Z | 1 | $1.75 | |||
| 12 | SCREW 3/4 X 2 UNF 1305/0714 | 1 | $13.01 | |||
| 15 | PLOUGH BOLT 3/4UNFx2-3/4" 826/00303 | 1 | $5.64 | |||
| 16 | SPRING BUSH 809/10032 | 1 | $27.48 | |||
| 19 | PIN 1-3/4 X 7 1019/2018 | 1 | $320.54 | |||
| 20 | PIN PIVOT 811/80013 | 1 | $158.33 | |||
| 20 | PIVOT PIN 44.5MM NOM 1019/2053 | 1 | $59.48 | |||
| 21 | BOLT 3/8 X 3-1/2 UNF 1305/3226 | 1 | $12.17 | |||
| 22 | (P) NUT 3/8UNF STD SELF LOCK 1340/0203Z | 1 | $1.75 | |||
| 23 | HOSE 1/2BSP 1740mm 613/29500 | 1 | $257.88 | |||
| 25 | LYNCH PIN 826/00512 | 1 | $3.76 | |||
| 26 | ADAPTOR 1604/0004 1604/0004A | 1 | $3.63 | |||
| 27 | WASHER 1406/0018 | 1 | $4.09 | |||
| 28 | COUPLING QR MALE F9 - 1/2BSP 45/910500 | 1 | $78.76 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-
DIAG-A2-4-2-395100 A2-4-2 BUCKET JAW, 460MM WIDE
View Diagram -
DIAG-A2-4-3-395100 A2-4-3 BUCKET JAW, 600MM WIDE
View Diagram -
DIAG-A2-2-74-395100 A2-2-74 BUCKET, TAPERED DITC HING
View Diagram
