A131-30-1 GRAIN SHOVEL DETAILS Q-FIT, 2.7CU.M. x 2450MM Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	Weld on 2450mm 334/E8562	1	AVAILABLE TO ORDER	$531.21	Quantity
3	Toeplate 2450mm (Bolt on) 334/E8561	1	AVAILABLE TO ORDER	$567.61	Quantity
4	Set x 8 334/E8392	1	AVAILABLE TO ORDER	$122.33	Quantity

Showing 1 to 3 of 3 parts

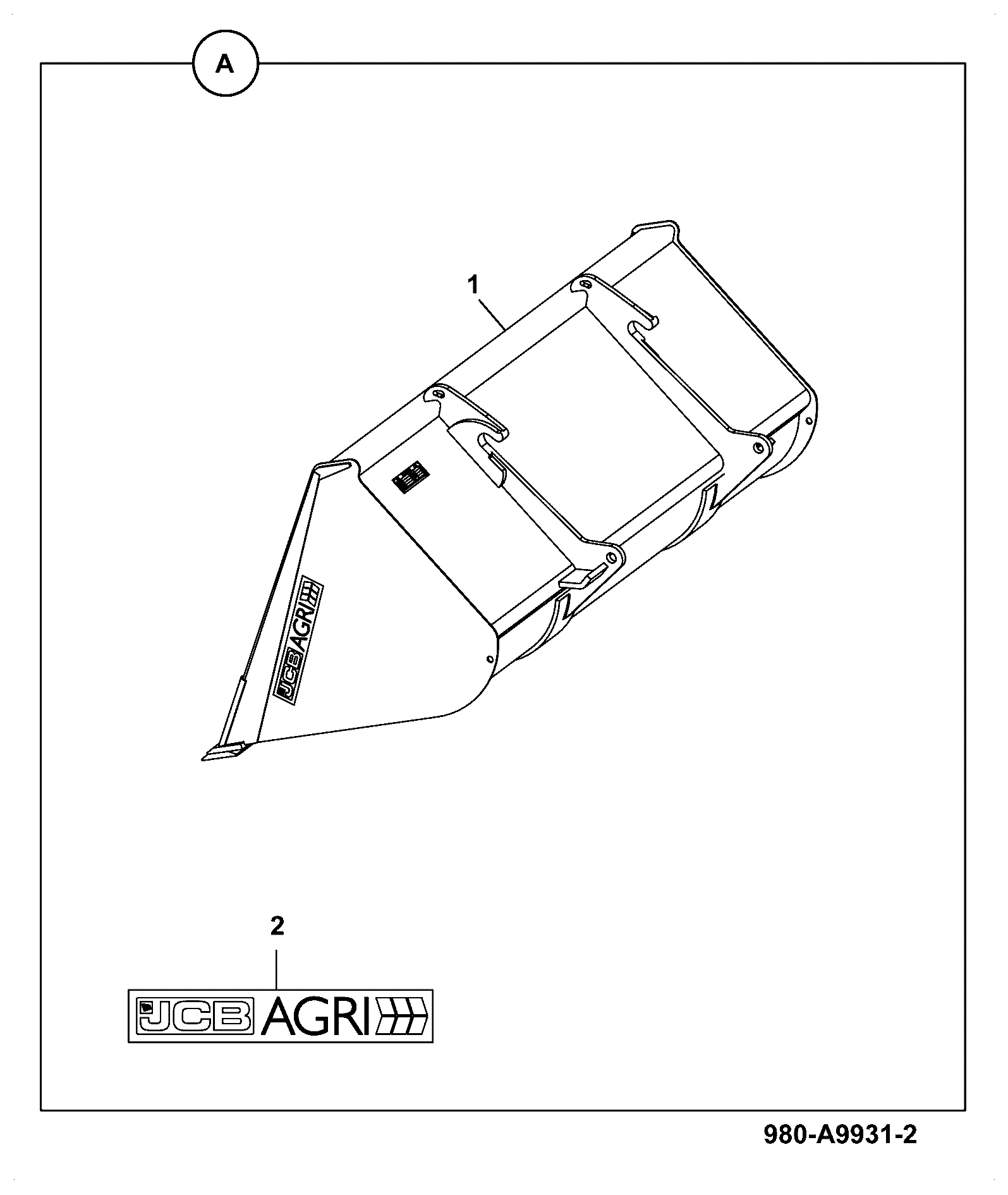

DIAG-A130-30-1-402685 A130-30-1 980/A9938 GRAIN SHOVEL, Q-FIT, 2.7CU.M. x 2450MM
