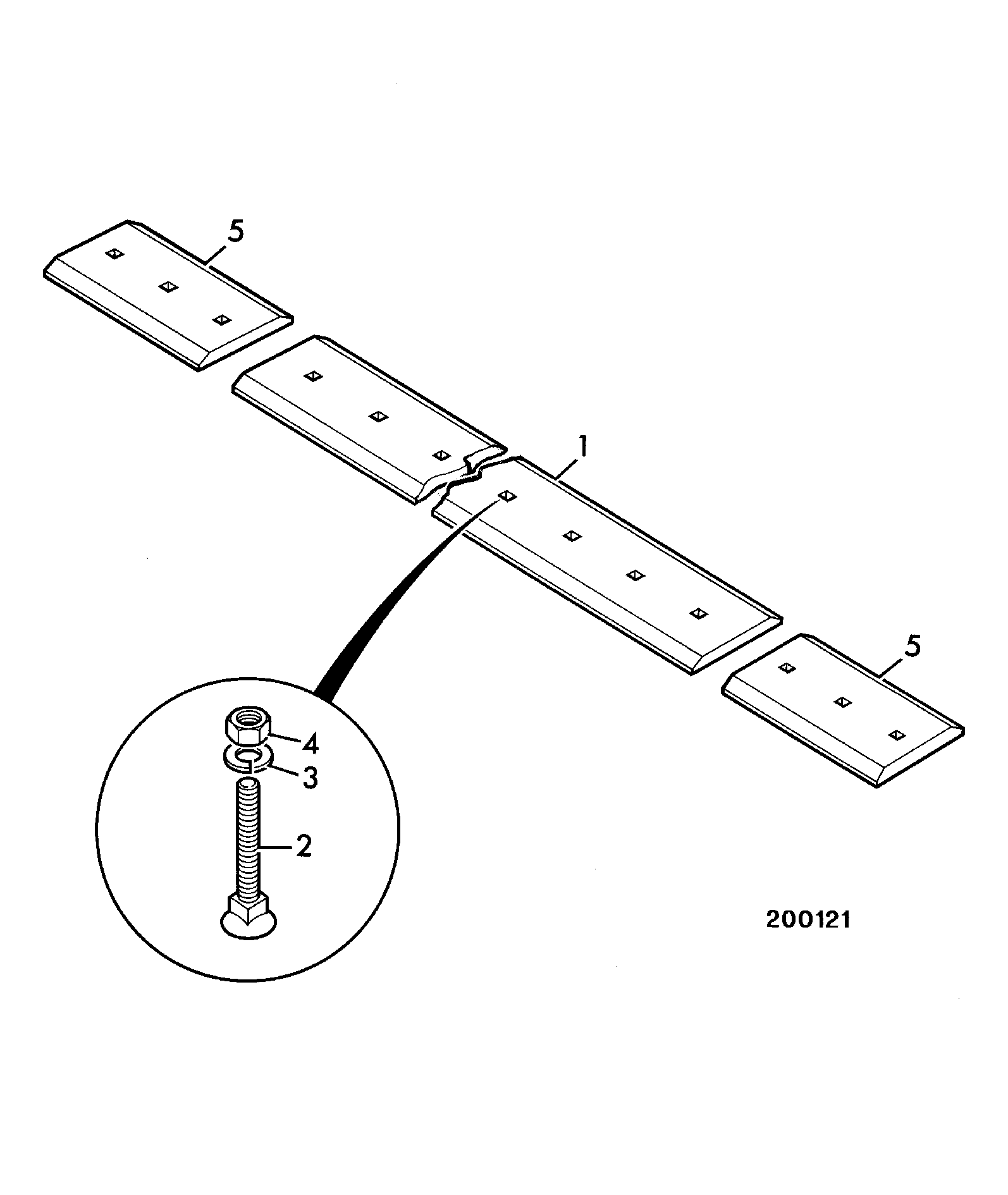

A130-5-1 GRAIN SHOVELS Q-FIT, 4.72CU.M x 2600MM Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	GRAIN SHOVEL 4.72m3 2600m 980/A9956	1	AVAILABLE TO ORDER	$10,414.34	Quantity
	Wear Edge HB500 Boron 200 400/01234	1	AVAILABLE TO ORDER	$1,386.80	Quantity
2	AGRI LOGO - 500 X 86 335/H1331	1	AVAILABLE TO ORDER	$11.56	Quantity

Showing 1 to 3 of 3 parts
