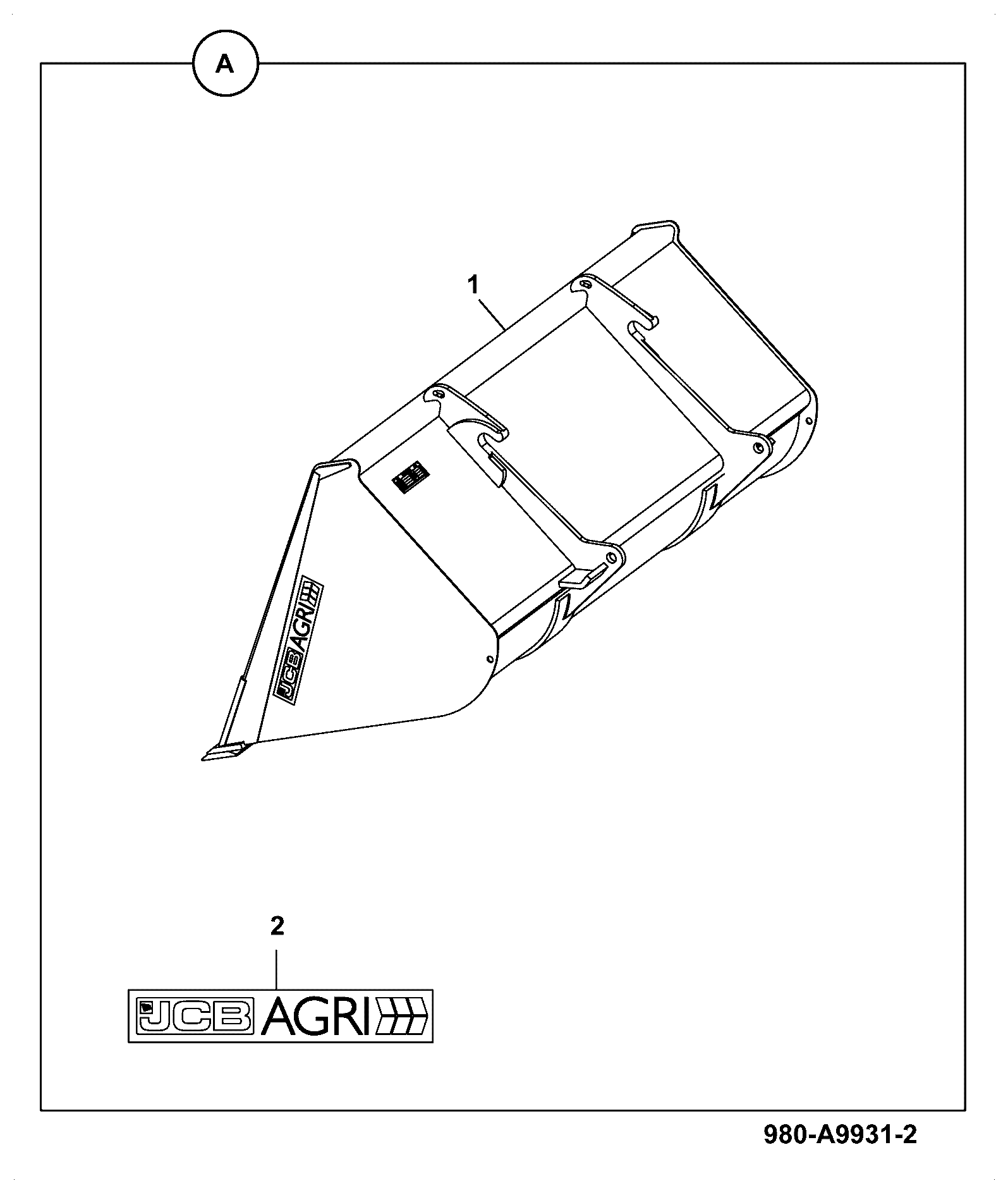

A130-45-5 GRAIN SHOVELS Q-FIT, 2.5CU.M. x 2450MM Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	GRAIN SHOVEL 2.5m3 2450mm 980/A9950	1	AVAILABLE TO ORDER	$4,324.21	Quantity
	Weld on 2450mm 334/E8562	1	AVAILABLE TO ORDER	$531.21	Quantity

Showing 1 to 2 of 2 parts

DIAG-A130-45-1-402087 A130-45-1 GRAIN SHOVELS Q-FIT, 2.5CU.M. x 2450MM
View Diagram
DIAG-A131-50-1-402087 A131-50-1 335/F1135 ABI GRAIN SHOVEL, Q-FIT, 2.5CU.M. x 2450MM
View Diagram

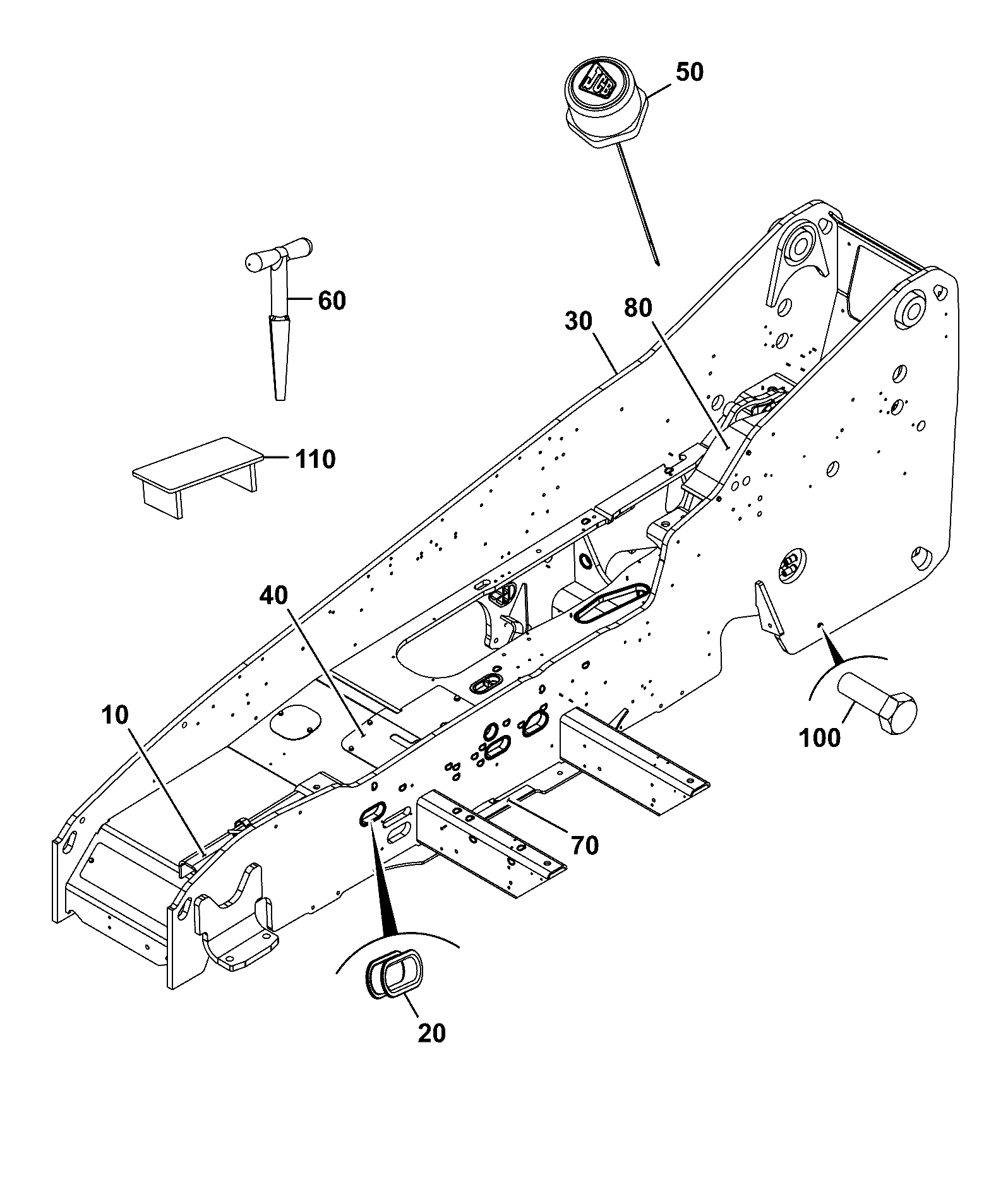

DIAG-B100-1-1-402087 B100-1-1 BODYWORK INSTALLATION ASSEMBLIES CHASSIS FIXED
