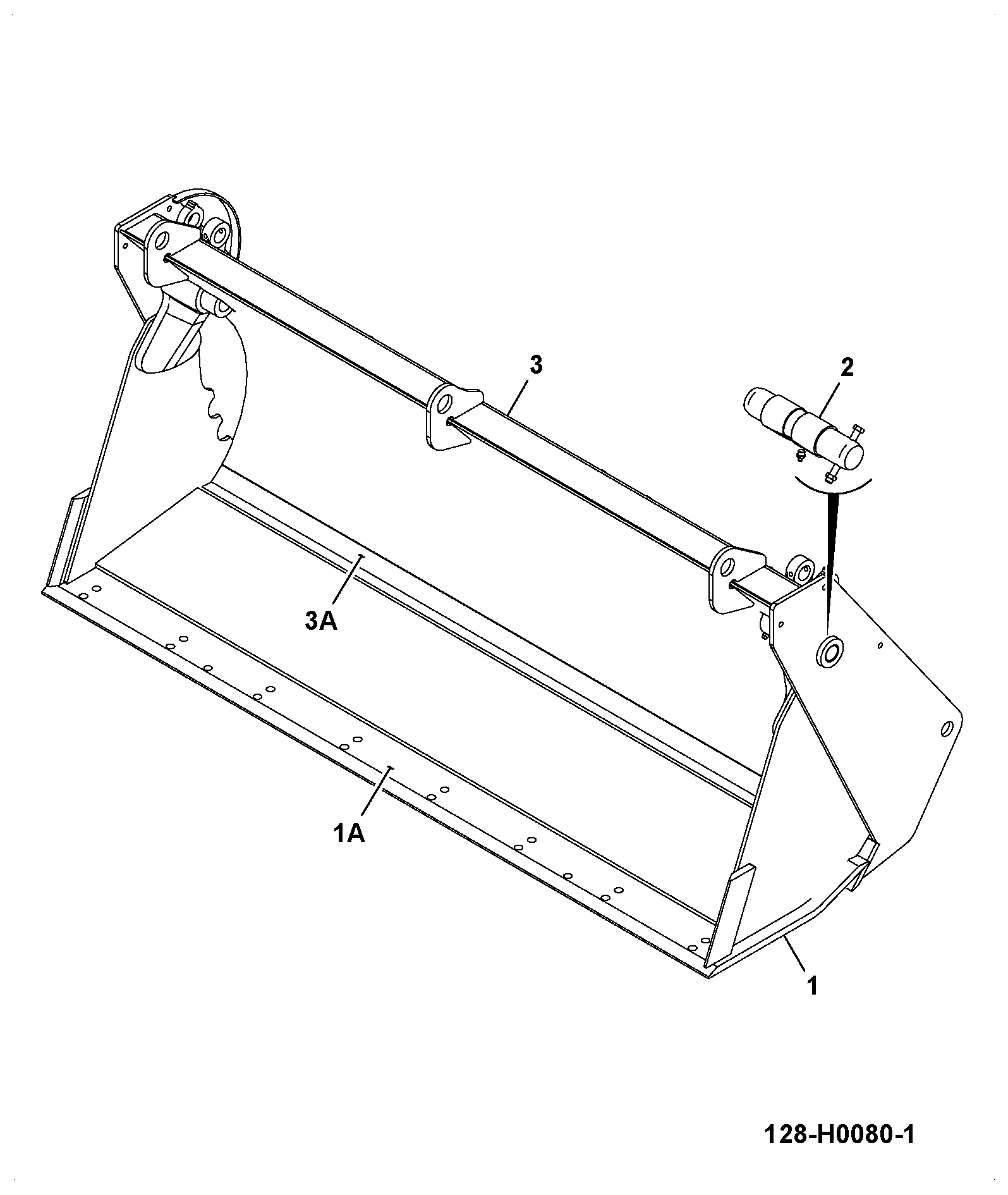

A125-5-1 6 IN 1 SHOVEL DETAILS SHELL 1.3m3 2450mm Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	ABI CLAM 1.3m3 96" 128/C1054	1	AVAILABLE TO ORDER	$7,339.12	Quantity
1	CLAM 125/76000	1	AVAILABLE TO ORDER	$4,008.02	Quantity
1A	ABI CLAM 1.3M3 92" Q/H 125/75700 128/C1068	1	AVAILABLE TO ORDER	$5,937.34	Quantity
3A	TOE PLATE 8FT 333/C0726	1	AVAILABLE TO ORDER	$607.20	Quantity

Showing 1 to 4 of 4 parts
