Kubota L5070 A11510 BREATHER PIPE (FUEL TANK) Parts Diagram

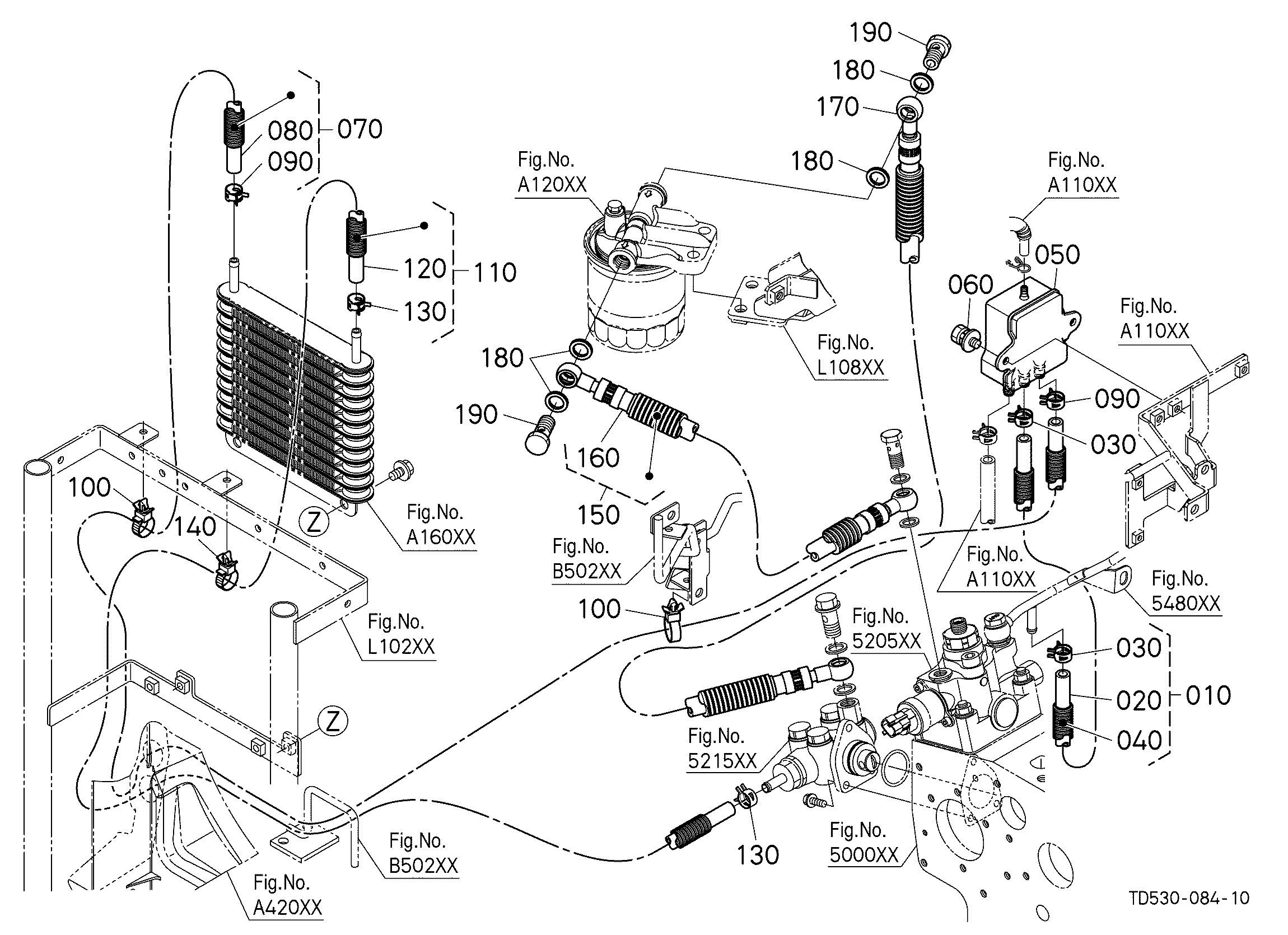

Exploded-view parts diagram "A11510 BREATHER PIPE (FUEL TANK)" for the Kubota L5070 and Kubota L5070-CAB. 7 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 020 | TUBE,FUEL 09661-80625 | 1 | $13.14 | |||
| 030 | Retaining Clip 09318-88125 | 1 | $2.26 | |||
| 040 | Pipe Clip for Fuel Pipe and Fuel Filter Lines 16241-42750 14911-42750 | 1 | $4.60 | |||
| 060 | TUBE,FUEL 09661-80525 | 1 | $10.73 | |||
| 090 | CLAMP T1060-30150 | 1 | $3.16 | |||
| 110 | PIPE,FUEL 09661-80170 | 1 | $5.86 | |||
| 130 | JOINT RB411-51320 | 1 | $35.63 | |||
Showing 1 to 7 of 7 parts
