Kubota L2800DT/HST A11002 FUEL PIPE AND FUEL FILTER [HST TYPE] Parts Diagram
Exploded-view parts diagram "A11002 FUEL PIPE AND FUEL FILTER [HST TYPE]" for the Kubota L2800DT/HST and Kubota L3400DT/HST. 13 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | Fuel Filter Assembly 6A320-59912 6A320-58862 | 1 | $34.63 | |||
| 020 | ASSY TUBE, FUEL T1060-42620 | 1 | $30.10 | |||
| 030 | PIPE, FUEL * 68131-52182 09664-80650 | 1 | $11.42 | |||
| 040 | Retaining Clip 09318-88125 | 1 | $2.26 | |||
| 050 | ASSY FUEL TUBE T0180-42640 | 1 | $19.48 | |||
| 060 | TUBE, FUEL 09661-40600 | 1 | $7.81 | |||
| 070 | Pipe Clip 14971-42751 14971-42750 | 1 | $1.88 | |||
| 080 | Bolt with Washer 01120-50825 01123-50825 | 1 | $1.21 | |||
| 090 | STAY, FUEL FILTE TC220-16562 TC220-16563 | 1 | $20.58 | |||
| 100 | Bolt (Fastener) 01020-50612 01023-50612 | 1 | $0.80 | |||
| 100 | Bolt (Fastener) 01754-50610 | 1 | $1.48 | |||
| 110 | ASSY TUBE, FUEL TA470-42610 | 1 | $26.01 | |||
| 120 | PIPE, FUEL 37410-88230 | 1 | $18.22 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-
DIAG-A11001-85296 A11001 FUEL PIPE AND FUEL FILTER [EXCEPT HST TYPE]
View Diagram -
DIAG-A13000-85296 A13000 FUEL FILTER [COMPONENT PARTS]
View Diagram -

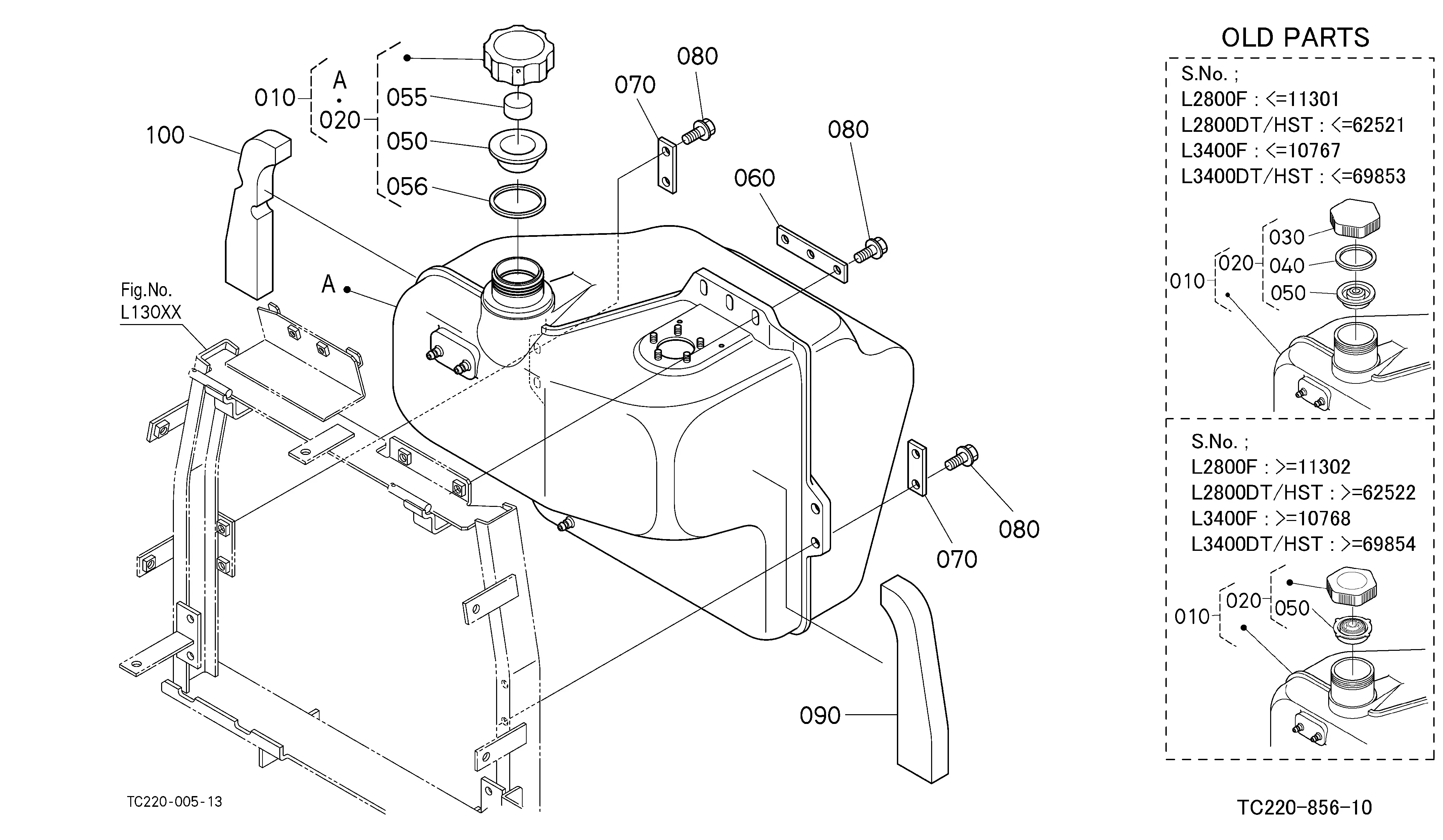

DIAG-A10100-85296 A10100 FUEL TANK
