Kubota BX1880 A11000 FUEL PIPE Parts Diagram

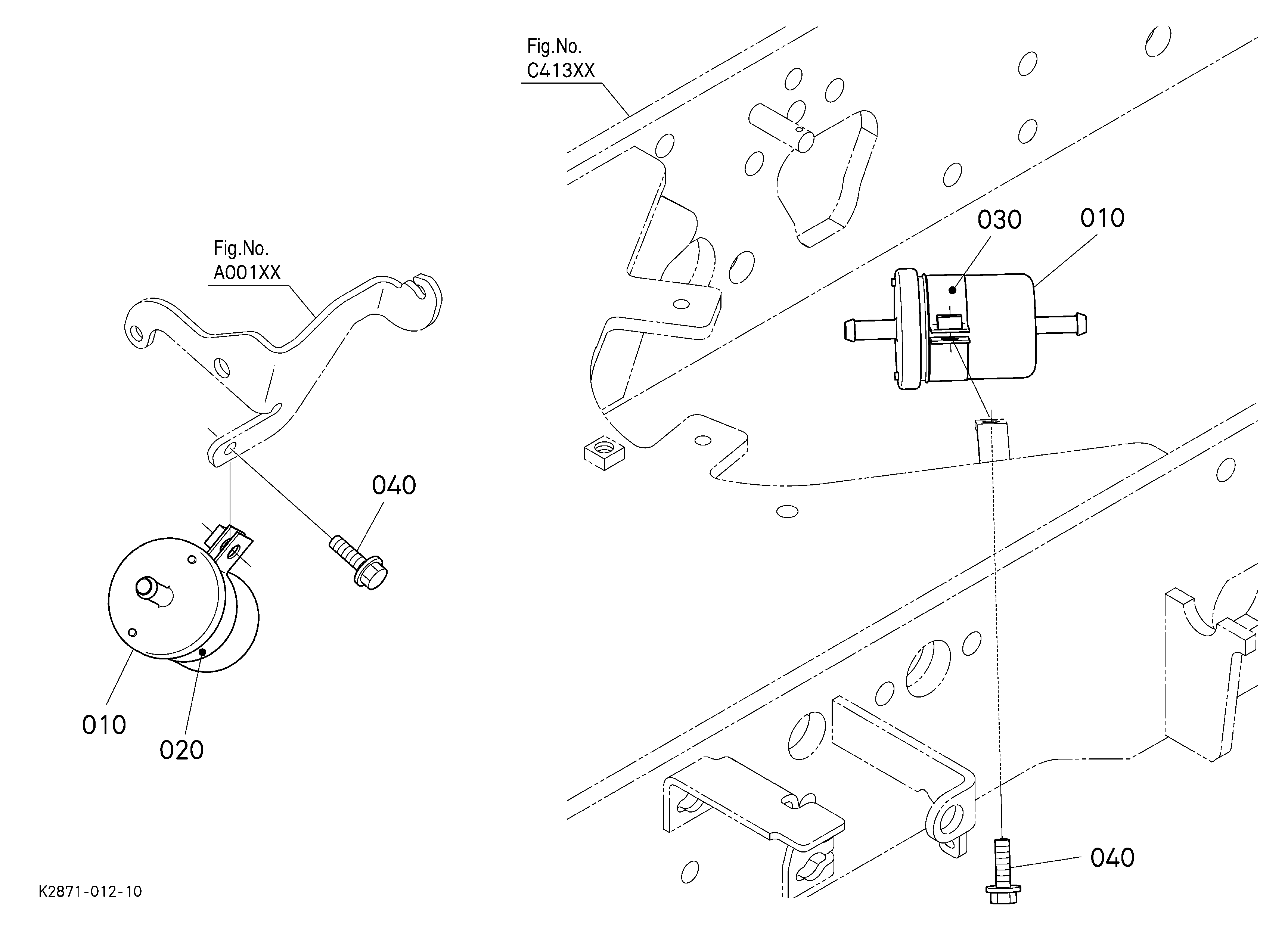

Exploded-view parts diagram "A11000 FUEL PIPE" for the Kubota BX1880. 13 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY HOSE FUEL,2 K2551-25033 | 1 | $10.77 | |||
| 020 | TUBE FUEL K2551-24430 Discontinued | 1 | $4.17 | |||
| 030 | Retaining Clip 09318-88125 | 1 | $2.26 | |||
| 040 | ASSY TUBE,FUEL 2 K2771-25032 | 1 | $6.30 | |||
| 050 | TUBE,FUEL,2 K2771-24432 | 1 | $14.60 | |||
| 070 | TUBE,FUEL,ASSY(3 K2871-25040 | 1 | $16.26 | |||
| 080 | ASSY HOSE, FUEL K2561-24050 | 1 | $38.37 | |||
| 100 | TUBE,FUEL,ASSY(4 K2871-25012 | 1 | $47.55 | |||
| 110 | CONDUIT, CONVOLU K2581-24260 | 1 | $10.86 | |||
| 130 | BAND, HOSE 09318-88095 | 1 | $4.65 | |||
| 140 | HOSE, BREATHER F K2581-24460 | 1 | $21.72 | |||
| 160 | BAND,CORD K1122-61230 | 1 | $0.36 | |||
| 170 | CLAMP, CORD K3441-62220 | 1 | $2.72 | |||
Showing 1 to 13 of 13 parts
