Kubota B3000HSDC A11000 FUEL PIPE Parts Diagram
Exploded-view parts diagram "A11000 FUEL PIPE" for the Kubota B3000HSDC and Kubota B3000HSDCC. 20 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| ASSY PIPE 3, OVE 16264-42030 | 1 | $6.05 | ||||
| ASSY PIPE, FUEL 34670-35540 | 1 | $7.59 | ||||
| ASSY PIPE,OVERFL 16282-42020 | 1 | $6.52 | ||||
| ASSY TUBE 3, FUE 6C070-59430 | 1 | $33.43 | ||||
| ASSY TUBE, FUEL 16294-42502 | 1 | $10.34 | ||||
| ASSY TUBE, FUEL 32771-42640 | 1 | $14.57 | ||||
| ASSY TUBE, FUEL 6C040-59410 6A100-54810 | 1 | $33.45 | ||||
| BOLT 01025-50816 01125-50825 | 1 | $1.77 | ||||
| Fuel Filter Assembly 6A320-59912 6A320-58862 | 1 | $34.63 | ||||
| JOINT, T-PIPE 1C020-42360 1G065-42360 | 1 | $18.86 | ||||
| Pipe Clip 14971-42751 14971-42750 | 1 | $1.88 | ||||
| Pipe Clip for Fuel Pipe and Fuel Filter Lines 16241-42750 14911-42750 | 1 | $4.60 | ||||
| PIPE, FUEL 09661-40080 | 1 | $2.69 | ||||
| PIPE, FUEL 4 34670-35640 | 1 | $5.71 | ||||
| PIPE,FUEL 09661-40040 | 1 | $2.69 | ||||
| SPRING, PIPE PRO 67156-53720 | 1 | $16.61 | ||||
| TUBE, FUEL 09661-40150 | 1 | $5.01 | ||||
| TUBE, FUEL 09661-40675 | 1 | $11.83 | ||||
| TUBE, FUEL 09661-70400 | 1 | $10.92 | ||||
| TUBE, FUEL 09661-80095 | 1 | $4.12 | ||||
Showing 1 to 20 of 20 parts
Related Assemblies
-

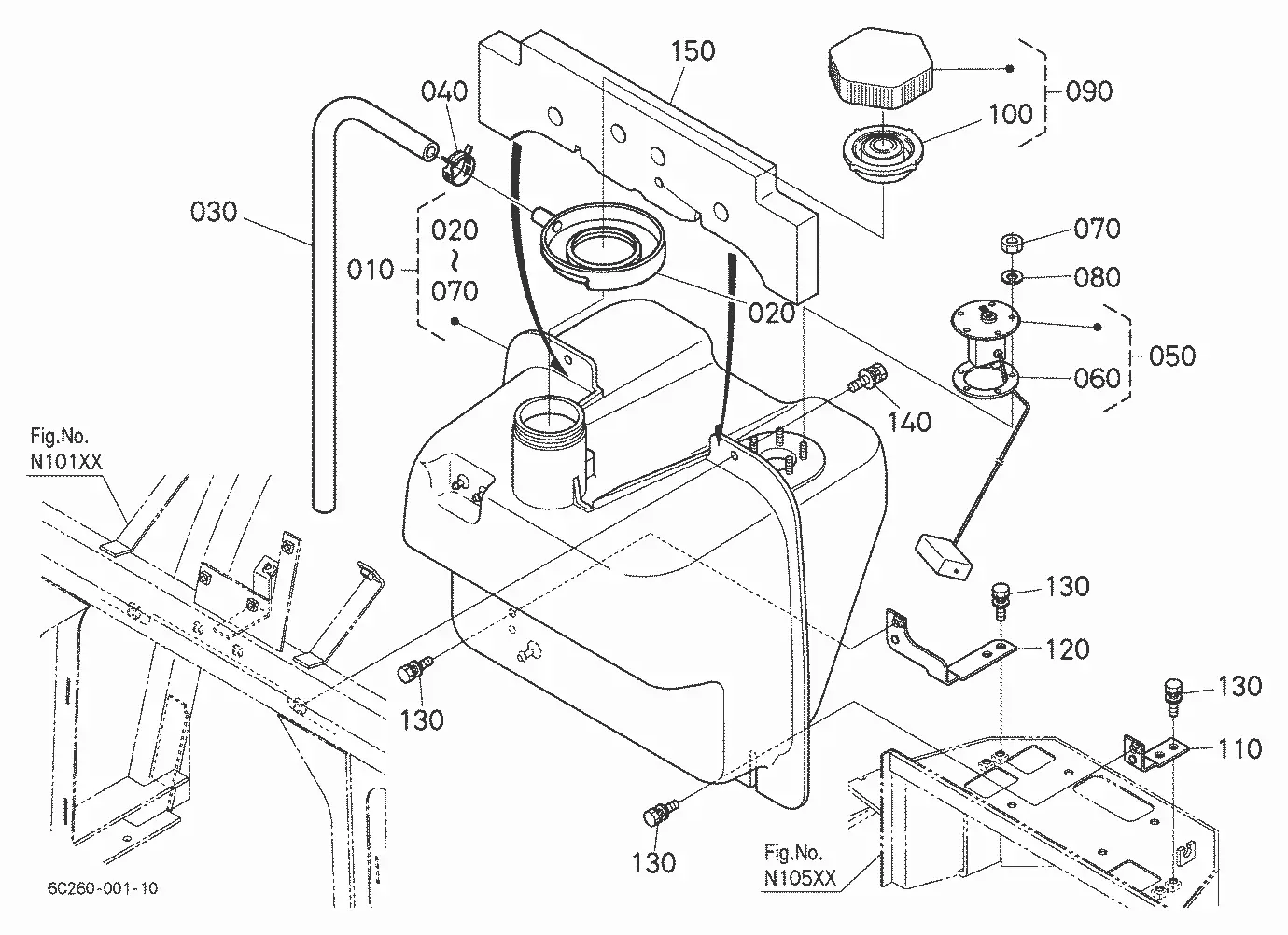

DIAG-A10100-84527 A10100 FUEL TANK
View Diagram -

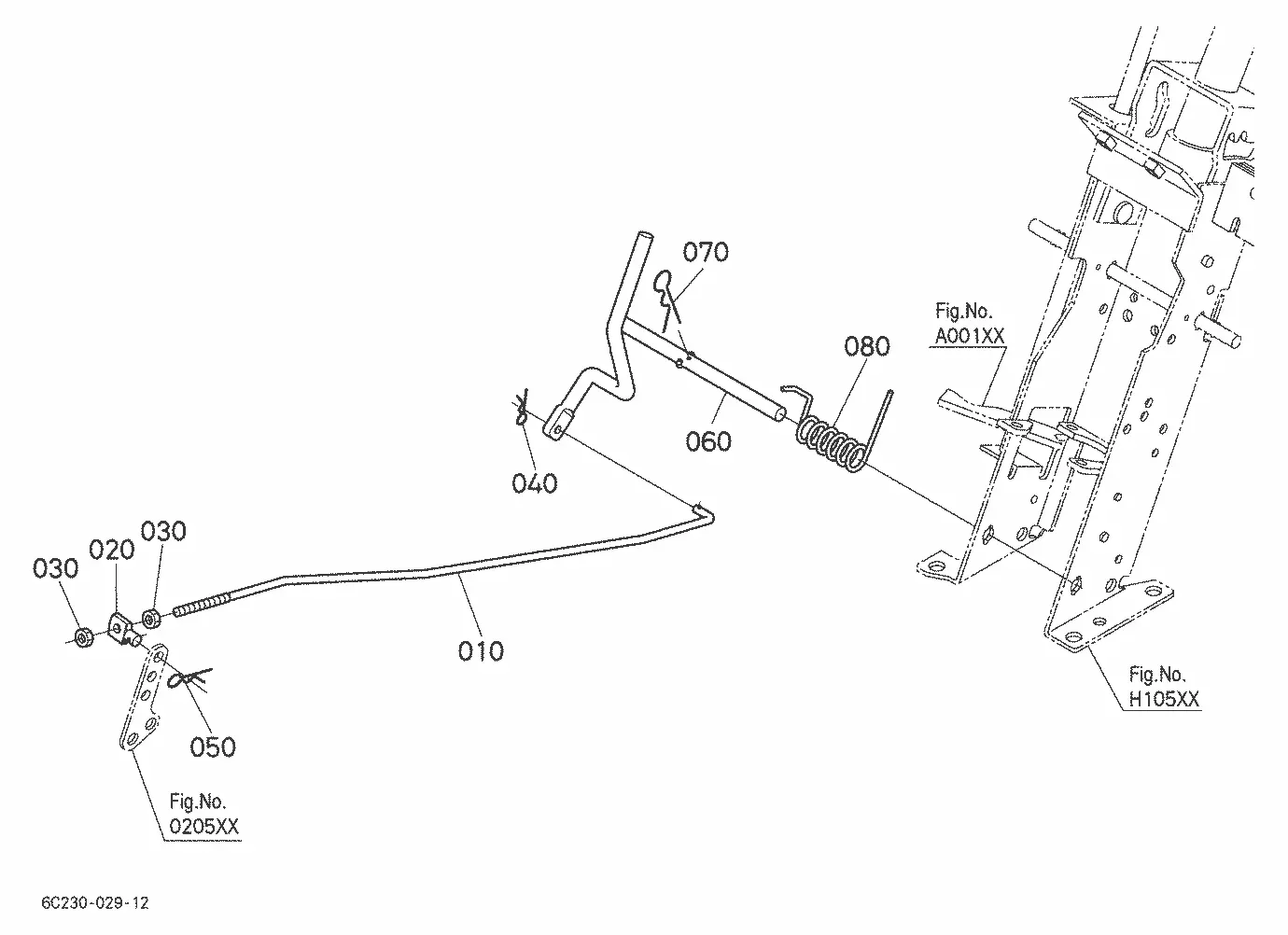

DIAG-A03000-84527 A03000 ACCELERATOR ROD
View Diagram -

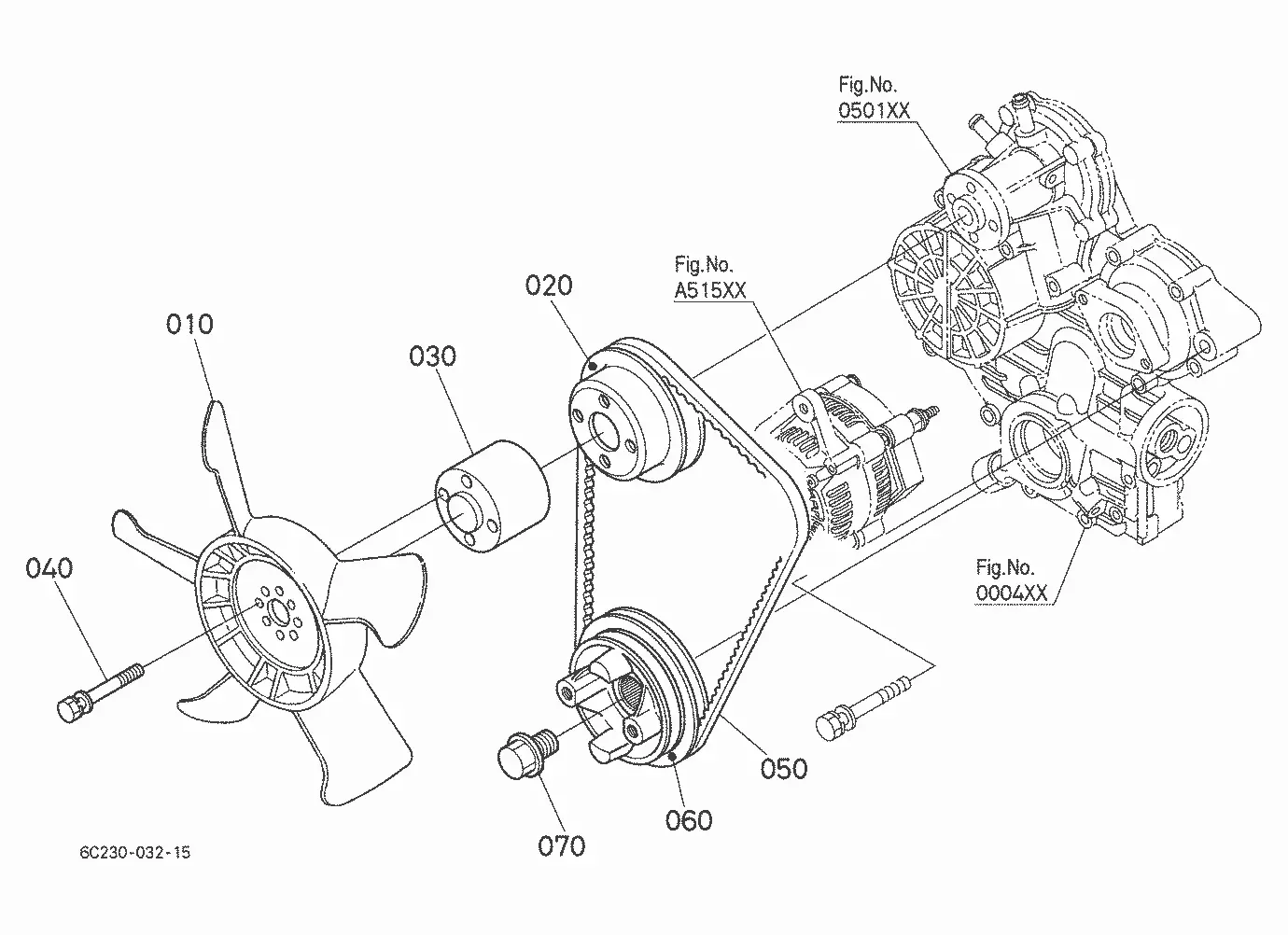

DIAG-A40100-84527 A40100 FAN
