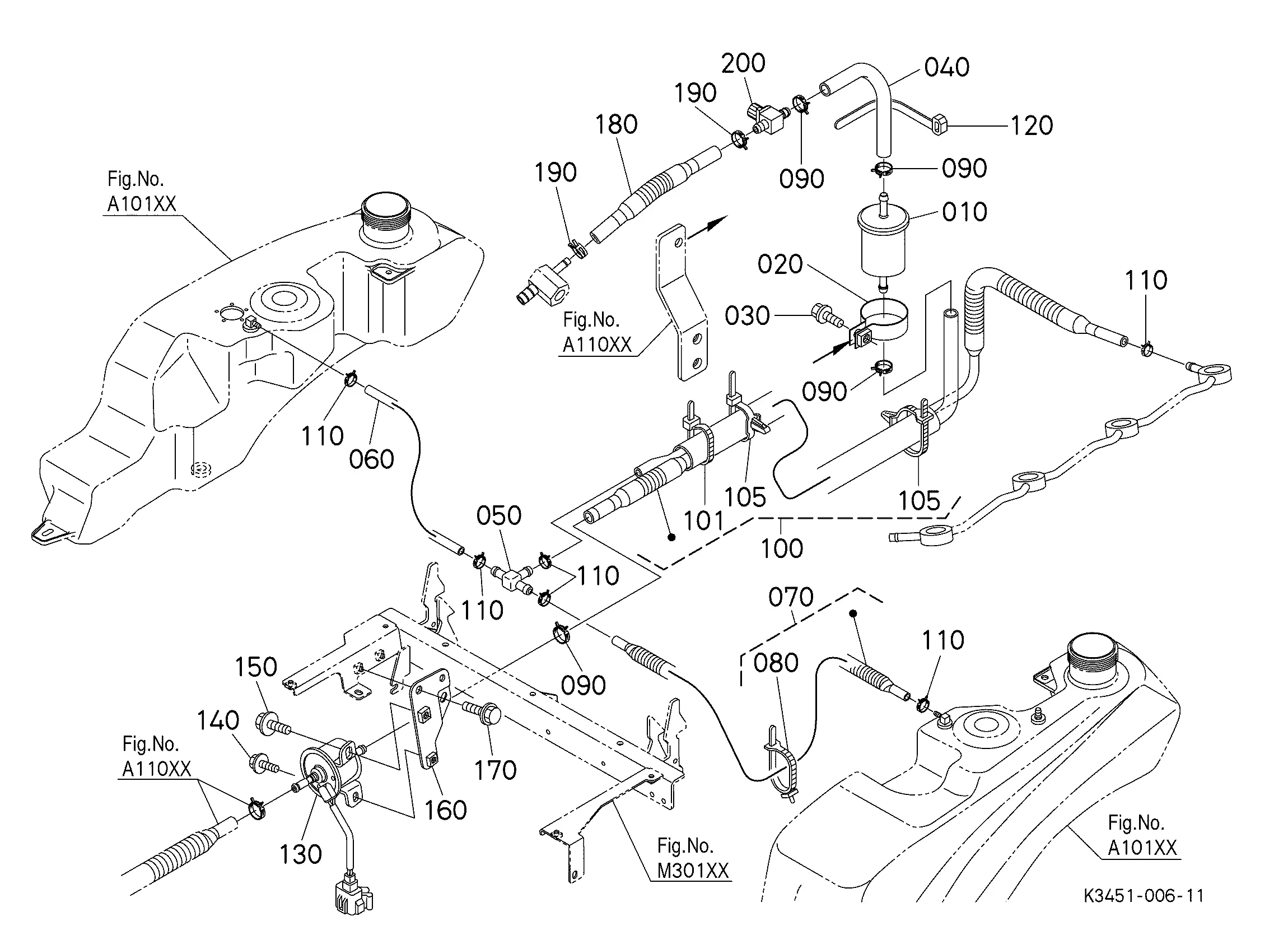

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY HOSE (480) K3441-24410 | 1 | $13.37 | |||
| 020 | STAY, FILTER K3451-24450 | 1 | $11.50 | |||
| 030 | Flange Bolt 01754-50612 | 1 | $2.09 | |||
| 040 | Bolt Fastener 01754-50820 | 1 | $0.54 | |||
| 050 | Fuel Filter Assembly K3272-24210 | 1 | $19.04 | |||
| 060 | CLAMP,FILTER K3615-58310 | 1 | $16.64 | |||
| 070 | HOSE, FUEL (5/16 K3441-24420 | 1 | $2.68 | |||
| 080 | VALVE (1way 1/4" K3282-24450 | 1 | $11.93 | |||
| 090 | HOSE, FUEL (3/8" K3441-24430 | 1 | $3.73 | |||
| 100 | JOINT, T,FUEL 1 K3441-24770 | 1 | $13.90 | |||
| 110 | ASSY HOSE (680) K3441-24560 | 1 | $18.66 | |||
| 120 | CLAMP, CORD K1042-61250 | 1 | $0.80 | |||
| 130 | Retaining Clip 09318-88125 | 1 | $2.26 | |||
| 140 | BAND HOSE 09318-88140 | 1 | $3.29 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-

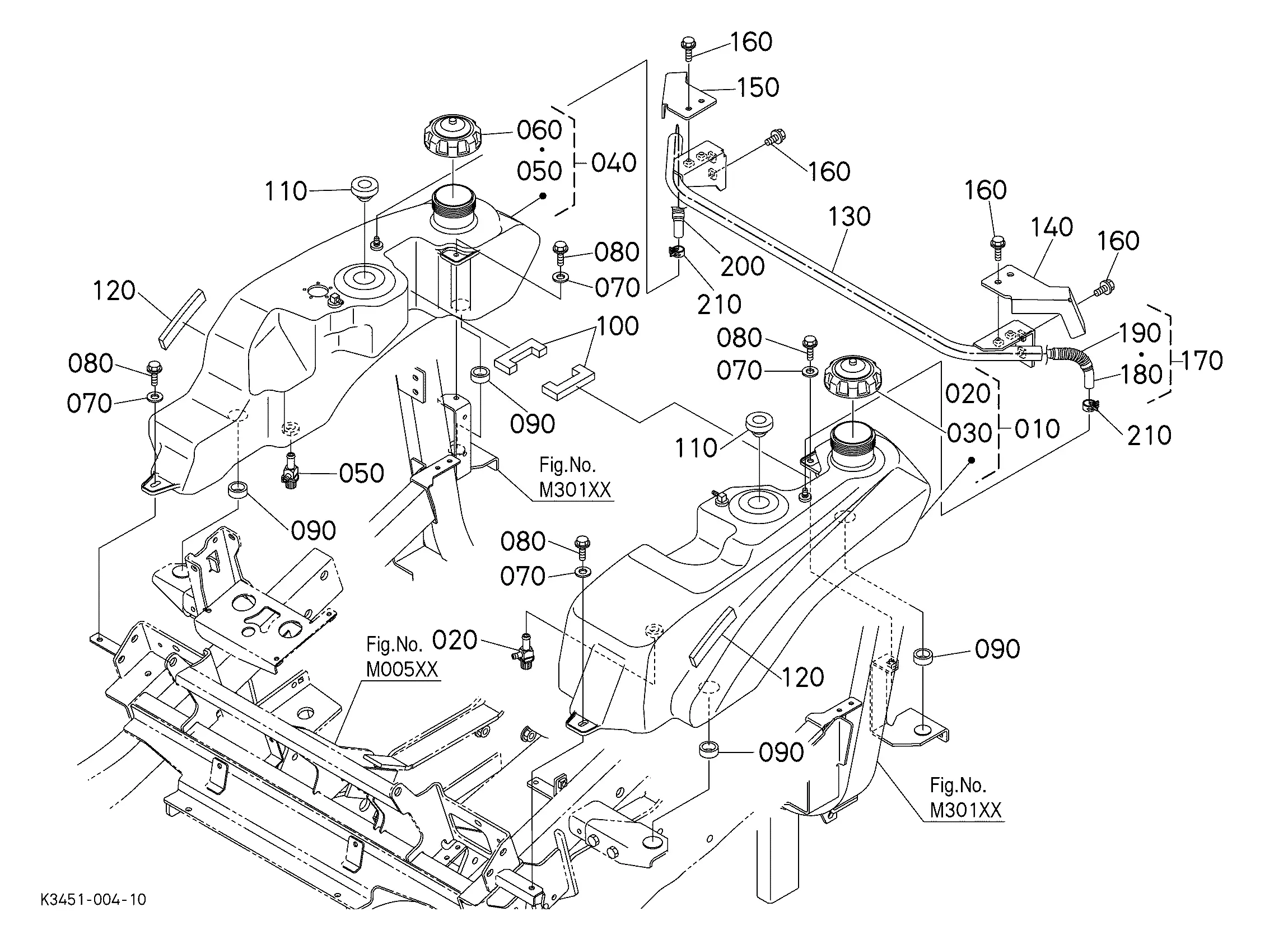

DIAG-A10100-125449 A10100 FUEL TANK
View Diagram -
DIAG-A11100-125449 A11100 FUEL PIPE 2
View Diagram -
DIAG-A01000-125449 A01000 ACCELERATOR LEVER
View Diagram
