Scroll to zoom Click a part # to view details

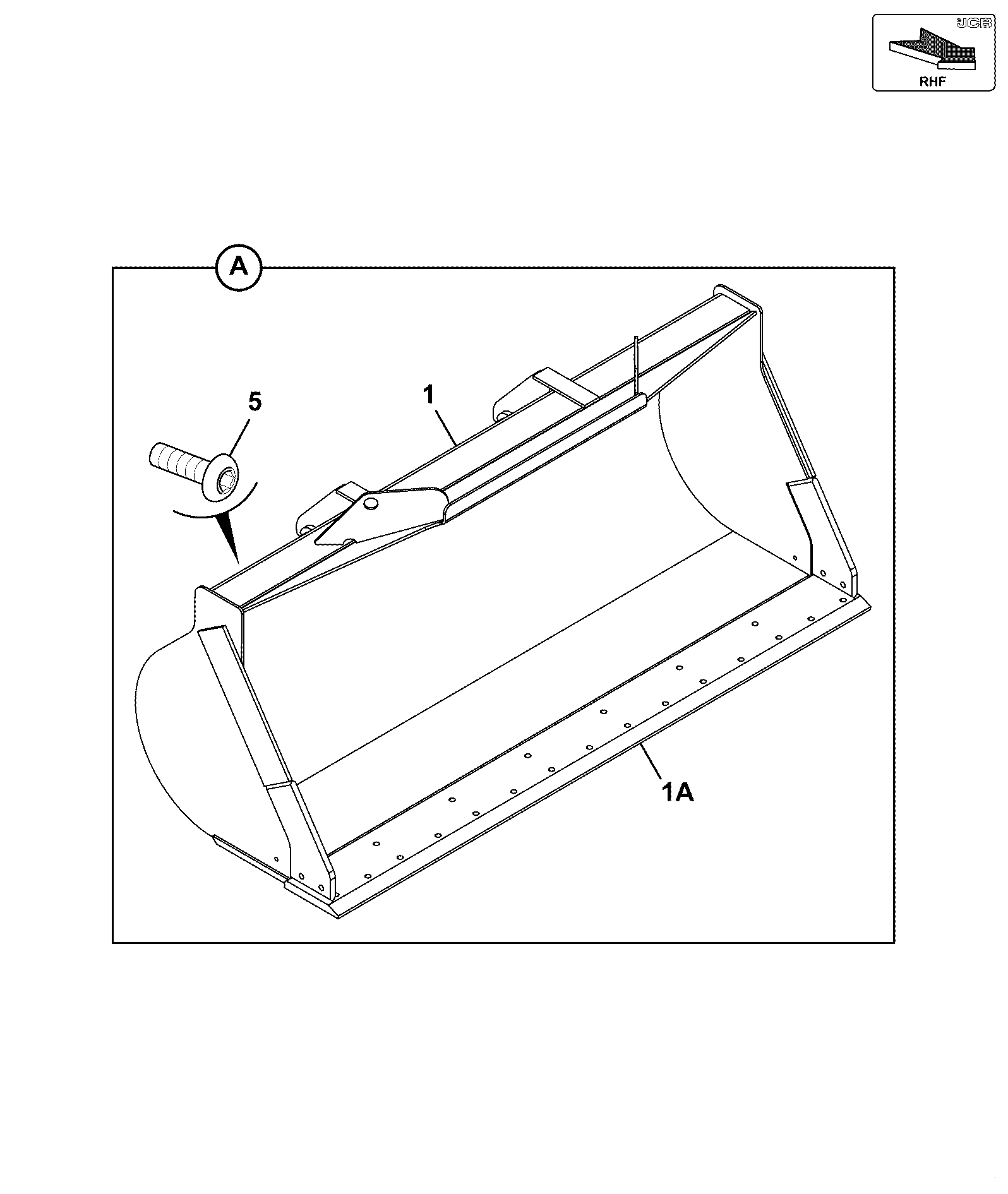

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 'BOLT ON CUTTING EDGE (Deliv. On Shovel) 510/93400 | 1 | $1,903.95 | ||||
| Data plate 401/Y8099 400/00258 | 1 | $278.19 | ||||
| 1 | 2.3cu.m. SHOVEL (See Notes) 335/02699 | 1 | $17,310.58 | |||
| 1A | 'TOE PLATE-2700mm WIDE-21 HOLES(WELD-IN) 510/92801 | 1 | $1,448.71 | |||
| 5 | SCREW 4X1/4 826/00115 | 1 | $1.43 | |||
| A | G.A. 2.3cu.m ./3.0cu.yd. 335/02719 | 1 | $9,672.84 | |||
Showing 1 to 6 of 6 parts
Related Assemblies
-

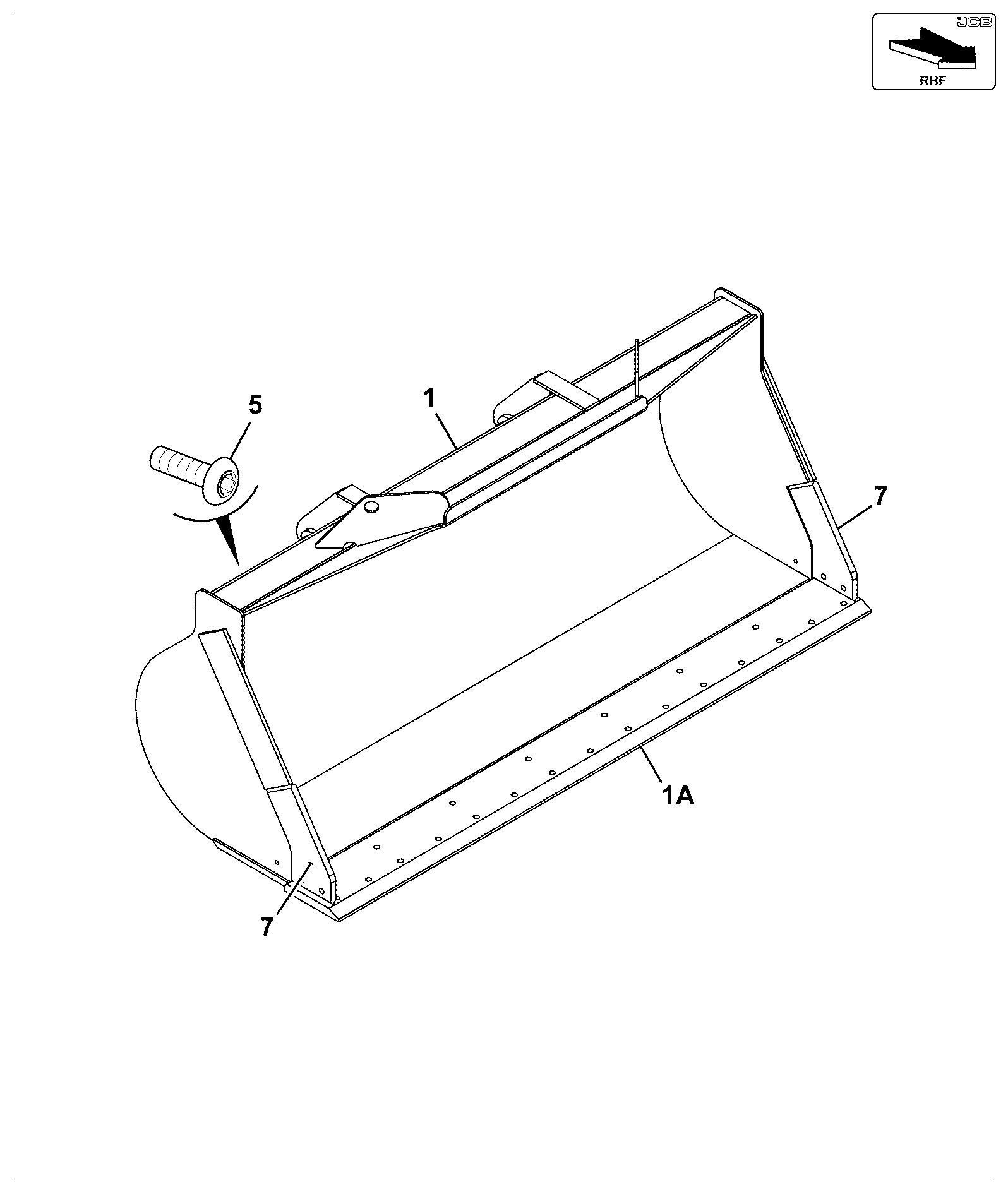

DIAG-A110-20-1-404702 A110-20-1 GENERAL PURPOSE SHOVEL Z BAR 2.3CU.M./3.0CU.YD.
View Diagram -
DIAG-A110-40-1-404702 A110-40-1 GENERAL PURPOSE SHOVEL Z BAR 2.0CU.M./2.6CU.YD.
View Diagram -
DIAG-A100-30-1-404702 A100-30-1 SHOVEL INSTALLATION ASSEMBLIES LOCKING PIN AND WASHER
View Diagram
