Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | TOE PLATE - BOLT ON 980/D0196 | 1 | $1,357.71 | |||
| 20 | PLOUGH BOLT 3/4 UN 332/C9951 | 1 | $5.58 | |||
| 30 | WASHER SPRING 3/4" 1416/0011Z | 1 | $1.49 | |||
| 40 | NUT 3/4UNF STD PLAIN 1340/0701 1340/0701Z | 1 | $1.75 | |||
Showing 1 to 4 of 4 parts
Related Assemblies
-

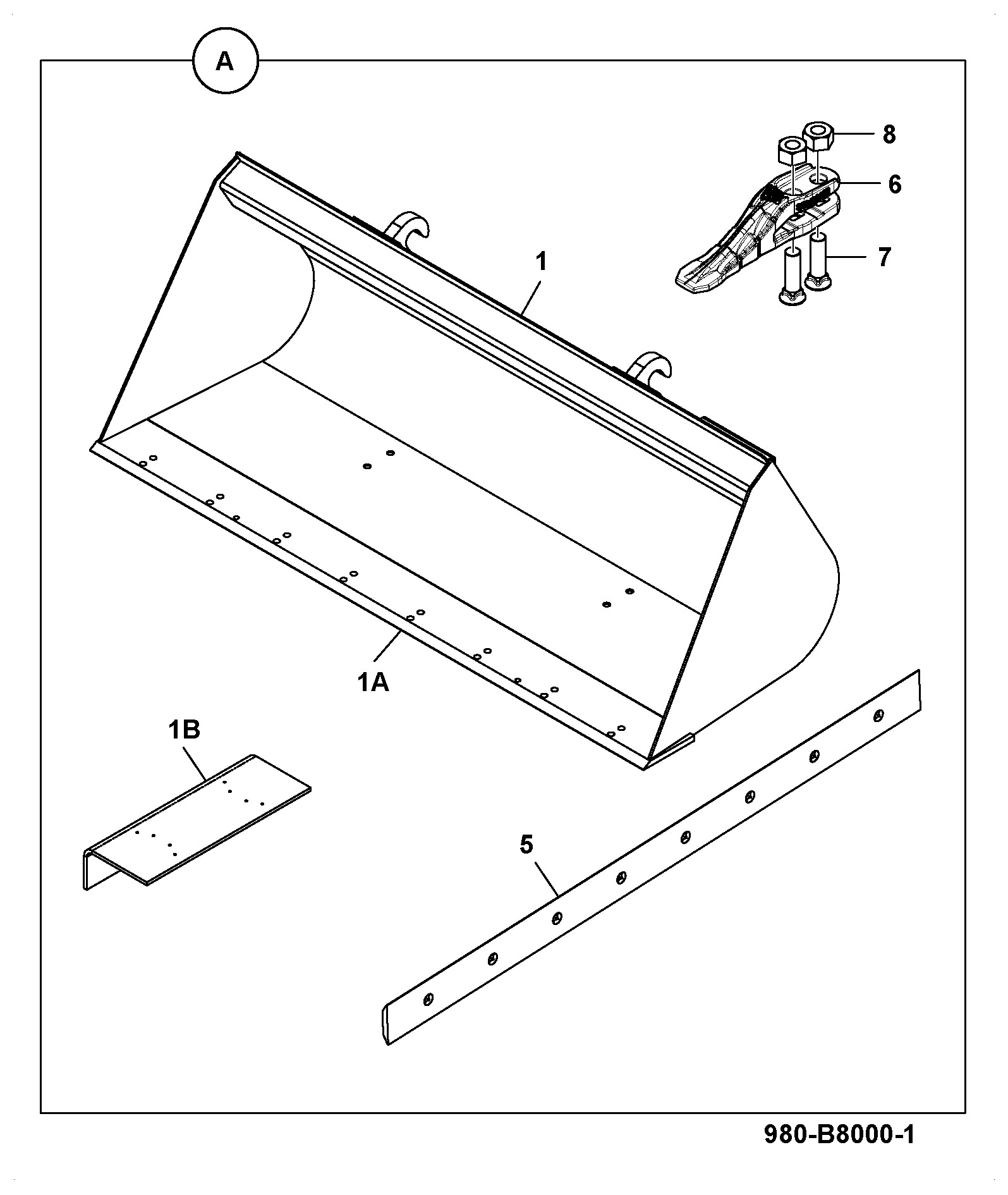

DIAG-A110-30-1-402372 A110-30-1 GENERAL PURPOSE SHOVEL 1.0 CUM 2400MM
View Diagram -

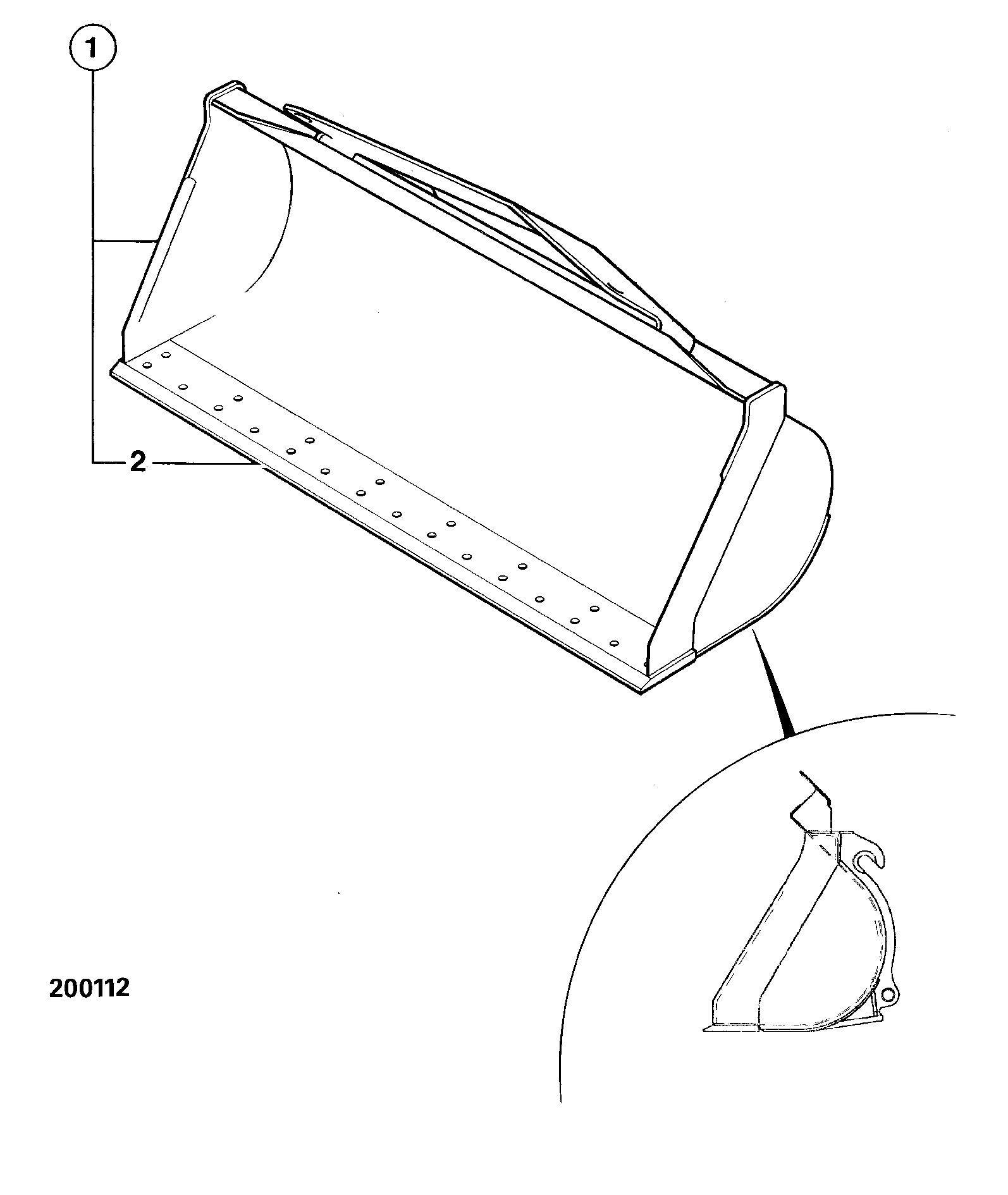

DIAG-A110-1-1-402372 A110-1-1 GENERAL PURPOSE SHOVEL DETAILS 1.0 CU.M. 2400 MM
View Diagram -
DIAG-A100-15-1-402372 A100-15-1 SHOVEL INSTALLATION ASSEMBLIES 1.0 CU.M 2400 MM
View Diagram
