Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

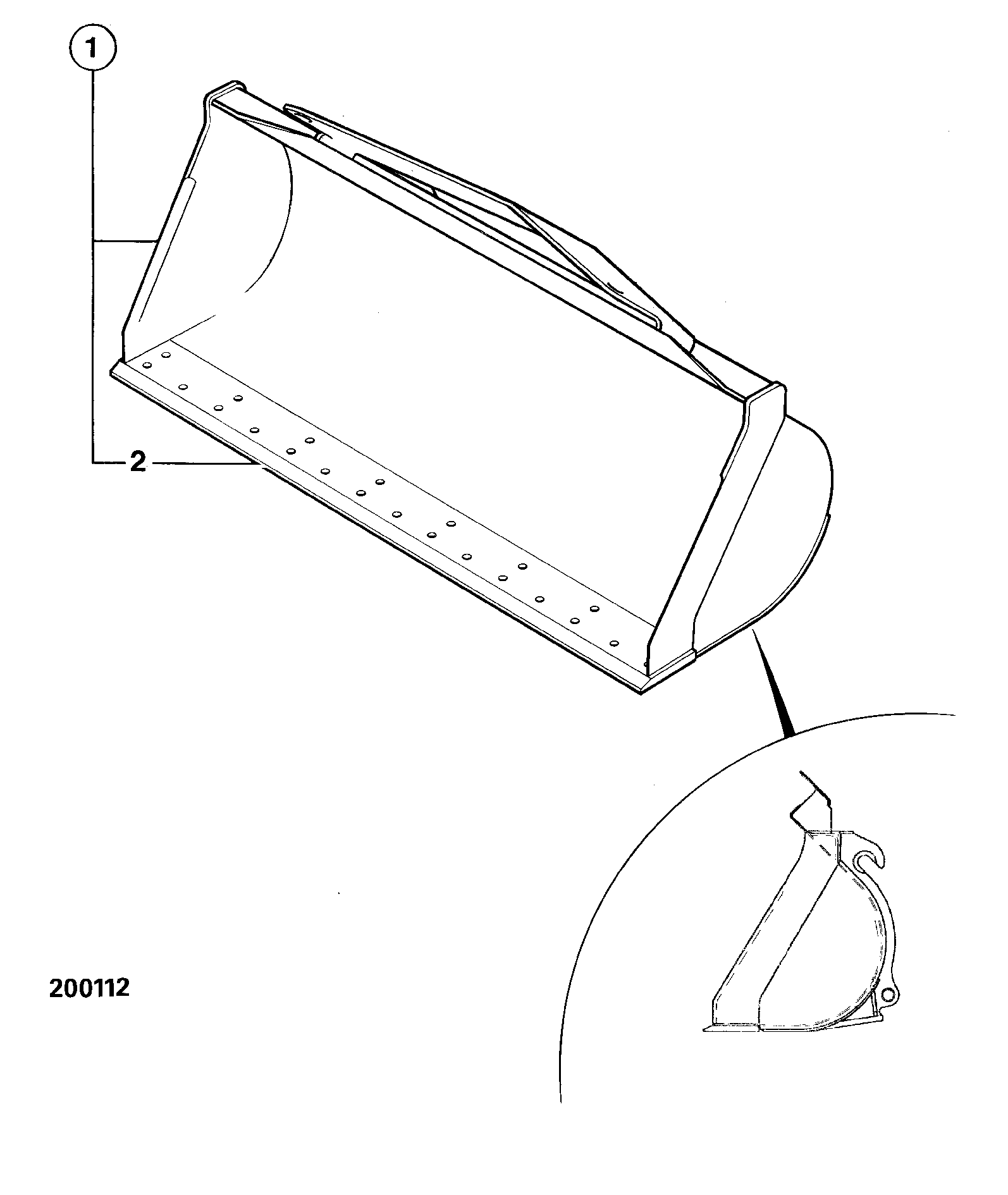

| 1 | GP SHOVEL 1.0 CM 2286 GA only 334/S9108 | 1 | $7,601.65 | |||
| 2 | TOE PLATE 2.3m 547/37801 | 1 | $734.19 | |||
| 3 | RUNNER PLATE 510/67102 | 1 | $94.03 | |||
| 4 | PLOUGHBOLT, 3/4" UNF x 2 1/4" 826/00217 | 1 | $23.70 | |||
| 5 | Washer SPRING WASH 1416/0011D | 1 | $2.28 | |||
| 6 | NUT 3/4" UNF HEX THIN 1340/0702D | 1 | $13.90 | |||
Showing 1 to 6 of 6 parts
Related Assemblies
-
DIAG-A110-15-1-403052 A110-15-1 GENERAL PURPOSE SHOVEL 1.0 CM 2286
View Diagram -
DIAG-A110-4-1-403052 A110-4-1 GENERAL PURPOSE SHOVEL 1.0CU.M. WITH BOLT ON TOEPLATE
View Diagram -
DIAG-A360-2-1-403052 A360-2-1 CARRIAGE INDUSTRIAL USA BUILDS
View Diagram
