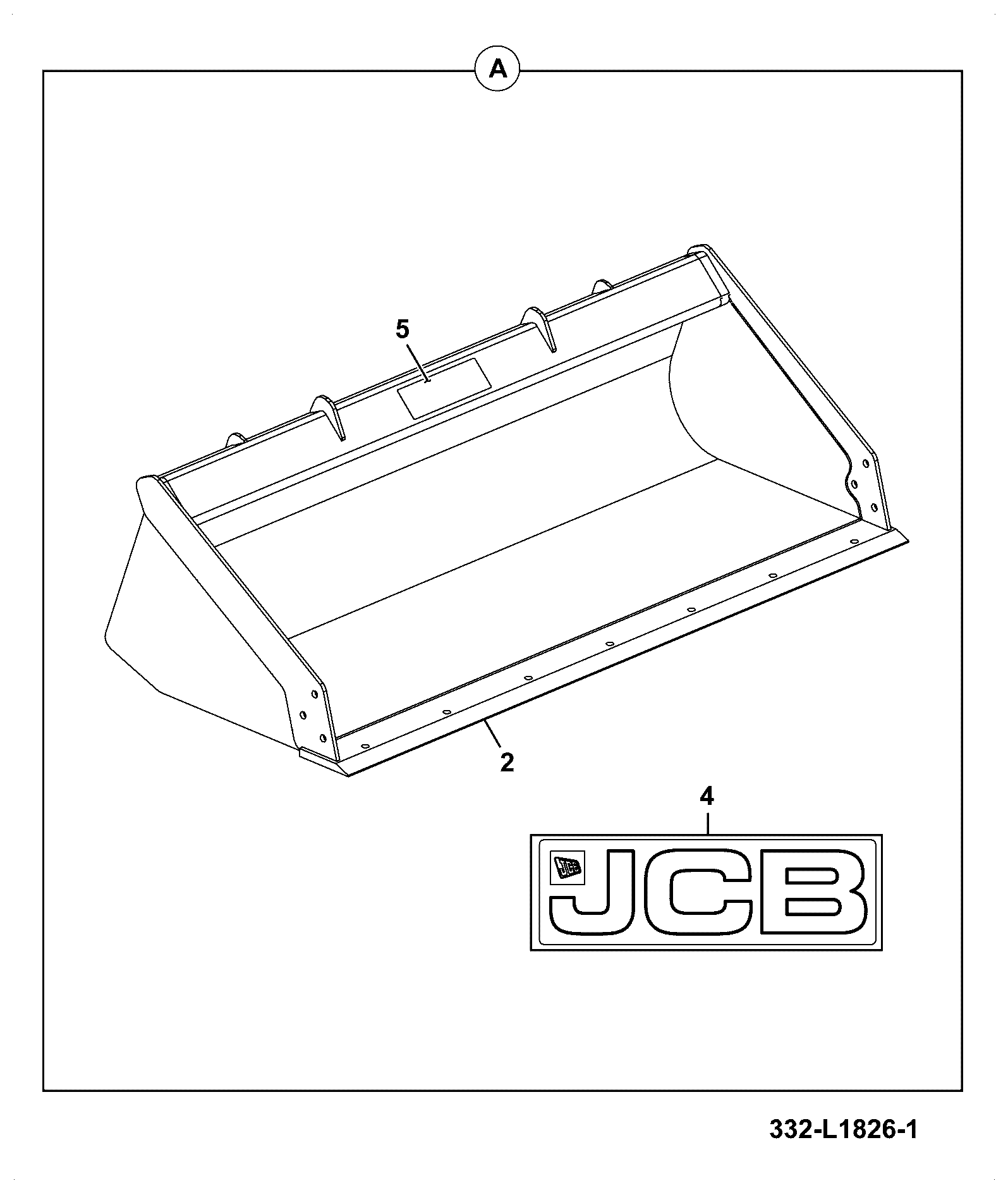

A110-10-1 GENERAL PURPOSE SHOVEL LOW PROFILE 75 INCH Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	84"Drt/GP BKT 18.1CU 332/L1825	1	AVAILABLE TO ORDER	$2,324.43	Quantity
	ABI BUCKET,75" LOW PROFIL 333/L4684	1	AVAILABLE TO ORDER	$2,531.11	Quantity
	DECAL - JCB LOGO (HIX) 333/R0500	1	AVAILABLE TO ORDER	$2.82	Quantity
	Toeplate 332/L3807	1	AVAILABLE TO ORDER	$1,542.52	Quantity
2	Toeplate Unpainted Weld-on 332/L3803	1	AVAILABLE TO ORDER	$1,752.45	Quantity

Showing 1 to 5 of 5 parts
