Kubota BX1880-1 A10101 FUEL TANK Parts Diagram
Exploded-view parts diagram "A10101 FUEL TANK" for the Kubota BX1880-1. 11 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | TANK,FUEL,ASSY K2581-54722 K2581-54724 | 1 | $301.33 | |||
| 020 | CAP, FUEL K2683-34120 | 1 | $51.16 | |||
| 020 | Fuel Tank Cap K7711-34120 K7711-34122 | 1 | $41.29 | |||
| 030 | CUSHION, TANK FR K2581-54782 | 1 | $4.83 | |||
| 040 | STAY, FUEL TANK, K2871-54810 | 1 | $9.47 | |||
| 050 | STAY, FUEL TANK, K2871-54820 | 1 | $9.68 | |||
| 060 | BOLT, M10x1. SQ K2511-54890 K2511-54892 | 1 | $3.29 | |||
| 060 | BOLT, SQ.NECK M1 K2581-54860 K2581-54862 | 1 | $2.05 | |||
| 070 | NUT (FLANGE, M10 K1122-91960 K1122-91962 | 1 | $0.60 | |||
| 080 | CUSHION,TANK REAR UP K2561-54840 | 1 | $1.93 | |||
| 100 | GASKET K1211-24150 Discontinued | 1 | $3.04 | |||
Showing 1 to 11 of 11 parts
Related Assemblies
-
DIAG-A11001-194176 A11001 FUEL PIPE
View Diagram -

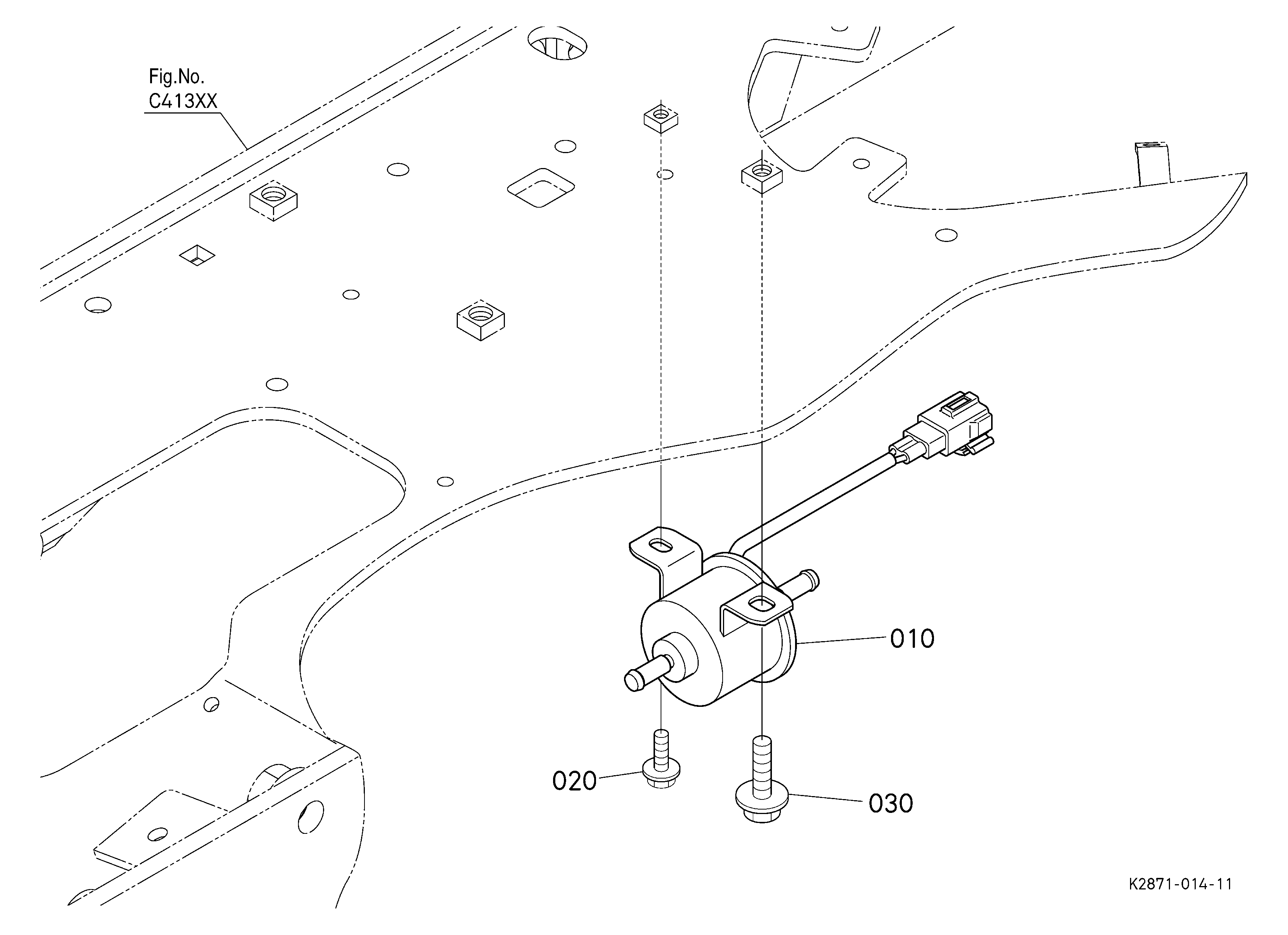

DIAG-A14001-194176 A14001 FUEL PUMP
View Diagram -

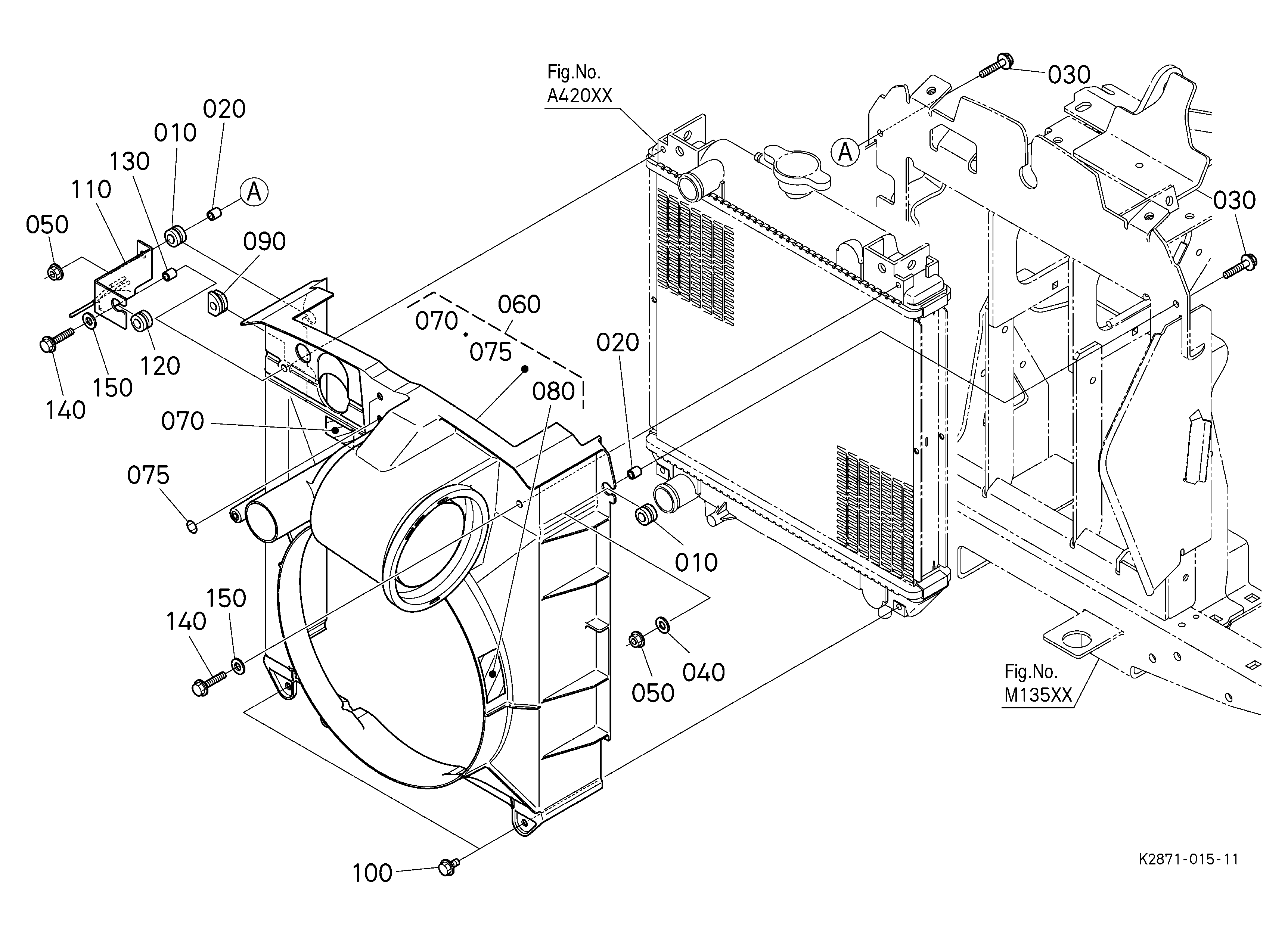

DIAG-A40500-194176 A40500 FAN SHROUD
