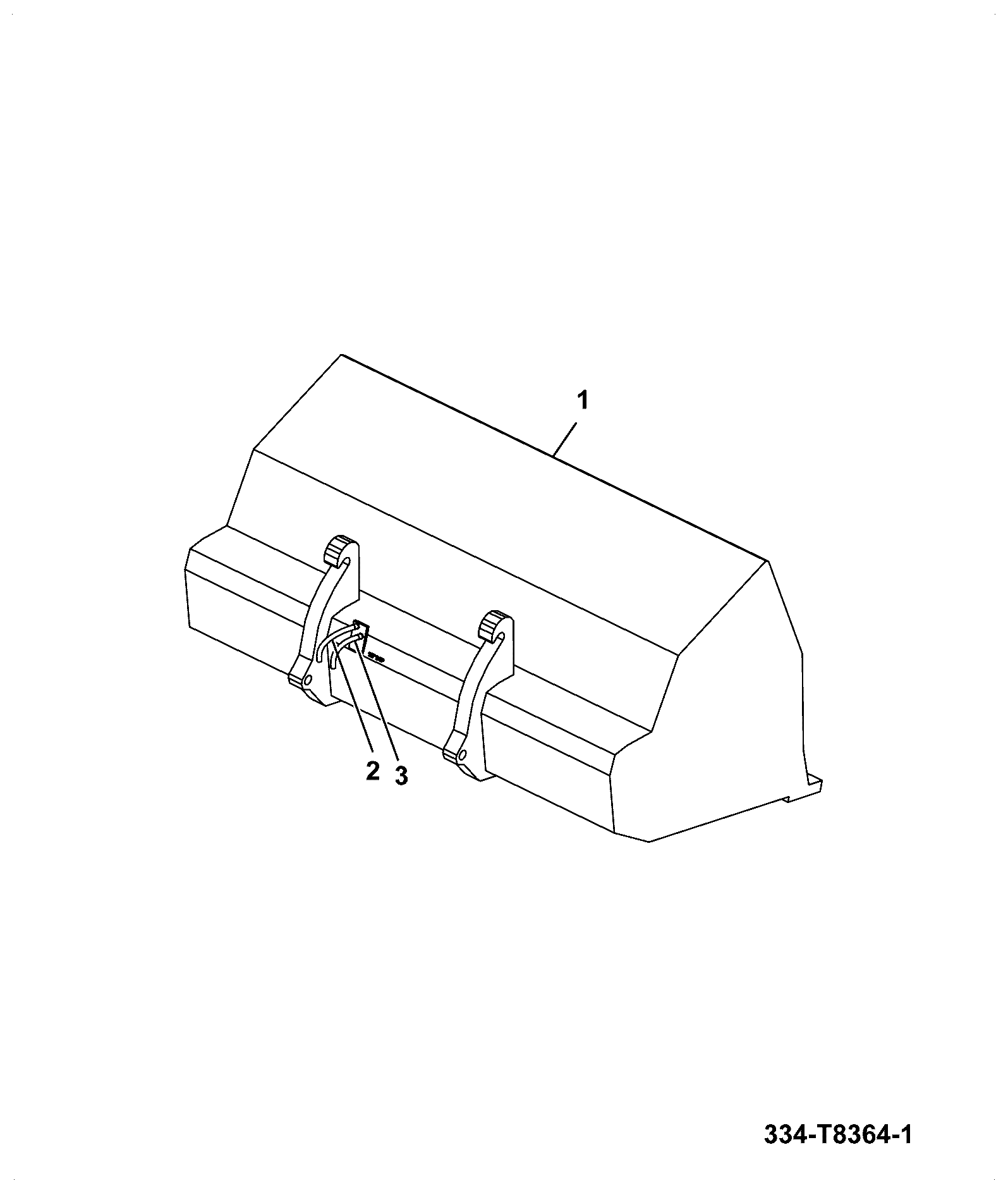

A101-5-1 SHOVEL SALES SPECIALS 6 IN 1 2.1CU.M. Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	6 IN 1 2.1CUM SHOV 334/T7645	1	AVAILABLE TO ORDER	$72,274.58	Quantity
2	HOSE ASSY 613/80036	1	AVAILABLE TO ORDER	$126.72	Quantity
3	Hose 613/80060	1	AVAILABLE TO ORDER	$130.66	Quantity

Showing 1 to 3 of 3 parts
